Fuel Tank Shield Replacement (AWD)

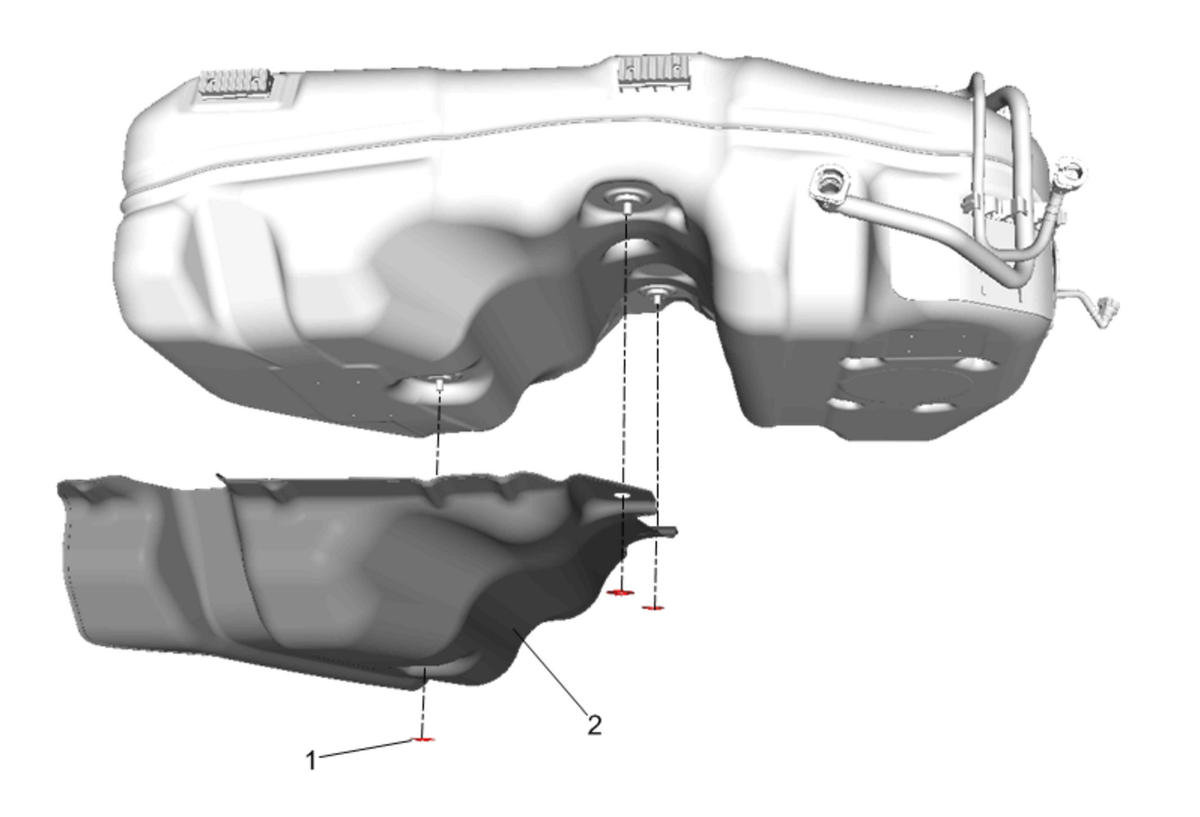

Fig 1: Fuel Tank Shield (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement (AWD)
1	Fuel Tank Shield Retainer[3x]
2	Fuel Tank Shield
