Intake Air Baffle Replacement

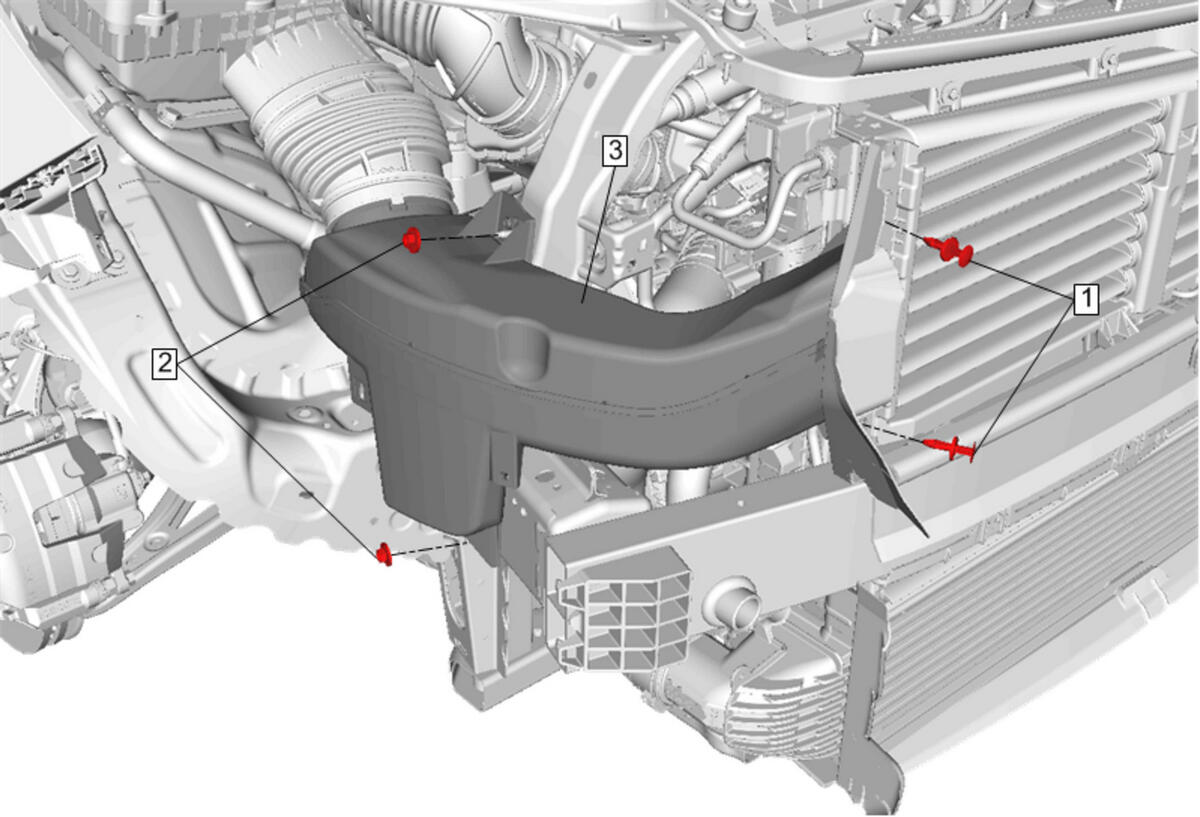

Fig 1: Intake Air Baffle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Headlamp Replacement (Chevrolet)Headlamp Replacement (GMC)
1	Intake Air Baffle Retainer [2x]
2	Front Intake Air Duct Nut[2x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
3	Intake Air Baffle Procedure  Remove wiring harness retainers from intake air baffle.
