Mass Airflow Sensor Replacement

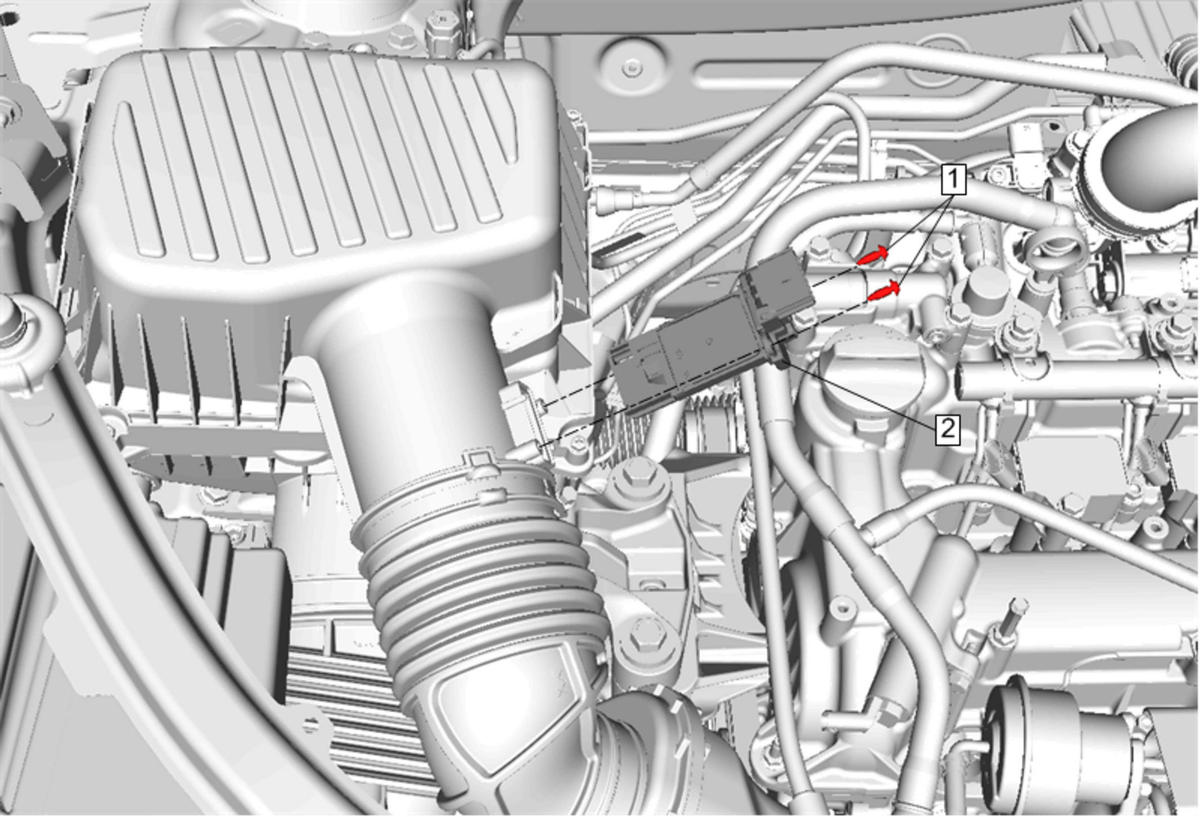

Fig 1: Mass Airflow Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Mass Airflow Sensor Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Mass Airflow Sensor Procedure Disconnect the electrical connector. Perform the intake system learned values reset. Intake System Learned Values Reset

Callout

Component Name

Mass Airflow Sensor Bolt [2x]

CAUTION:

Tighten
4 N.m (35 lb in)

Mass Airflow Sensor

Procedure

Disconnect the electrical connector.
Perform the intake system learned values reset. Intake System Learned Values Reset
