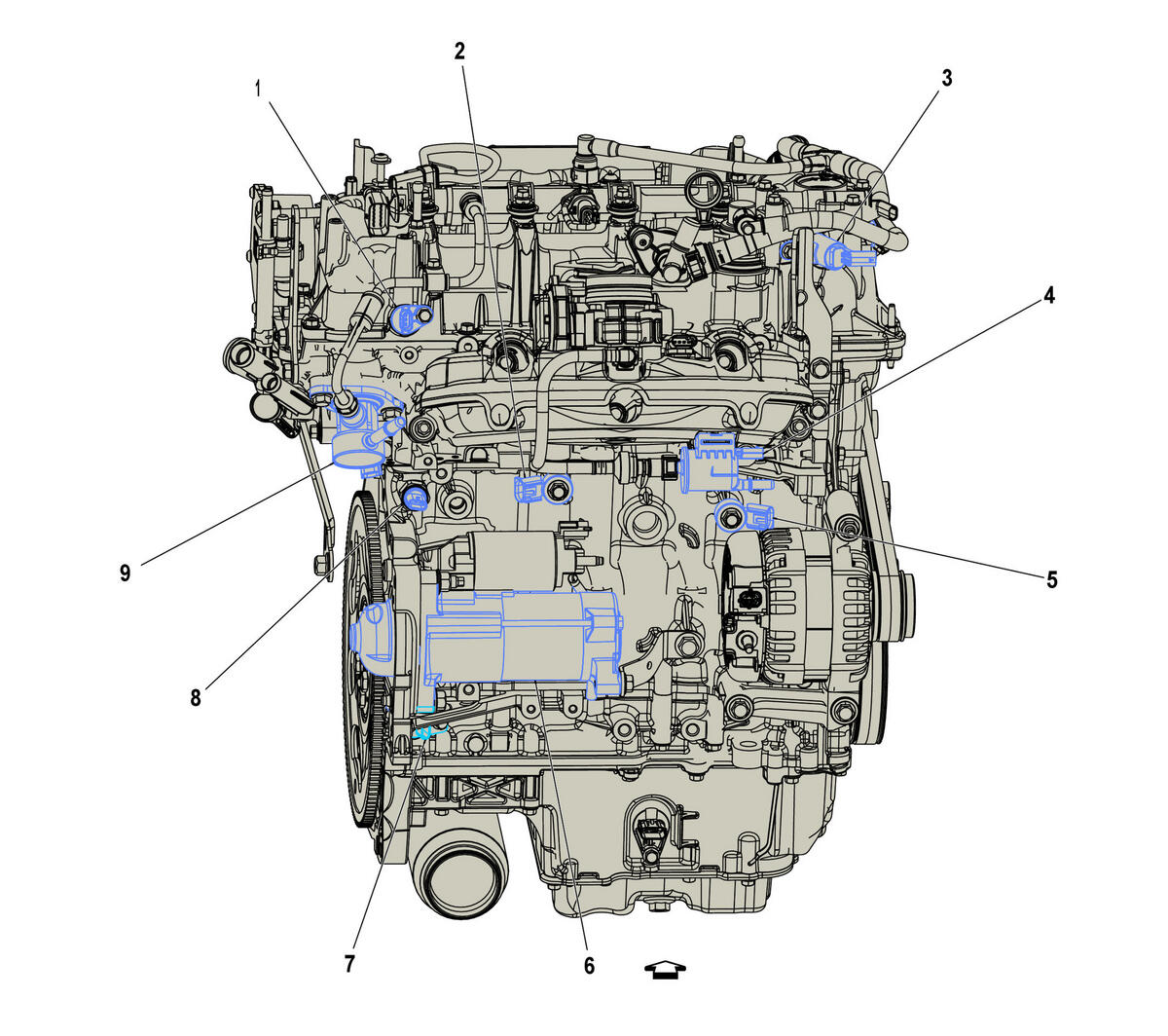

Rear Of The Engine (LYX)
Rear Of The Engine (LYX)
| Items |
|---|
| 1. B23F Camshaft Position Sensor - Intake (LTG/LYX) B23F Camshaft Position Sensor - Intake (LYX) |
| 2. B68B Knock Sensor 2 (LTG/LYX) B68B Knock Sensor 2 (LTG/LYX) |
| 3. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG/LYX) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG/LYX) |
| 4. Q12 Evaporative Emission Purge Solenoid Valve (LTG/LYX) Q12 Evaporative Emission Purge Solenoid Valve (LTG/LYX) |
| 5. B68A Knock Sensor 1 (LTG/LYX) B68A Knock Sensor 1 (LTG/LYX) |
| 6. M64 Starter Motor M64 Starter Motor X1 (-KL9)M64 Starter Motor X1 (KL9)M64 Starter Motor X2 |
| 7. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LYX) |
| 8. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LH7/LYX) |
| 9. G18 High Pressure Fuel Pump (LTG/LYX) G18 High Pressure Fuel Pump (LTG/LYX) |
