Power Transfer Unit Case Identification: Notes

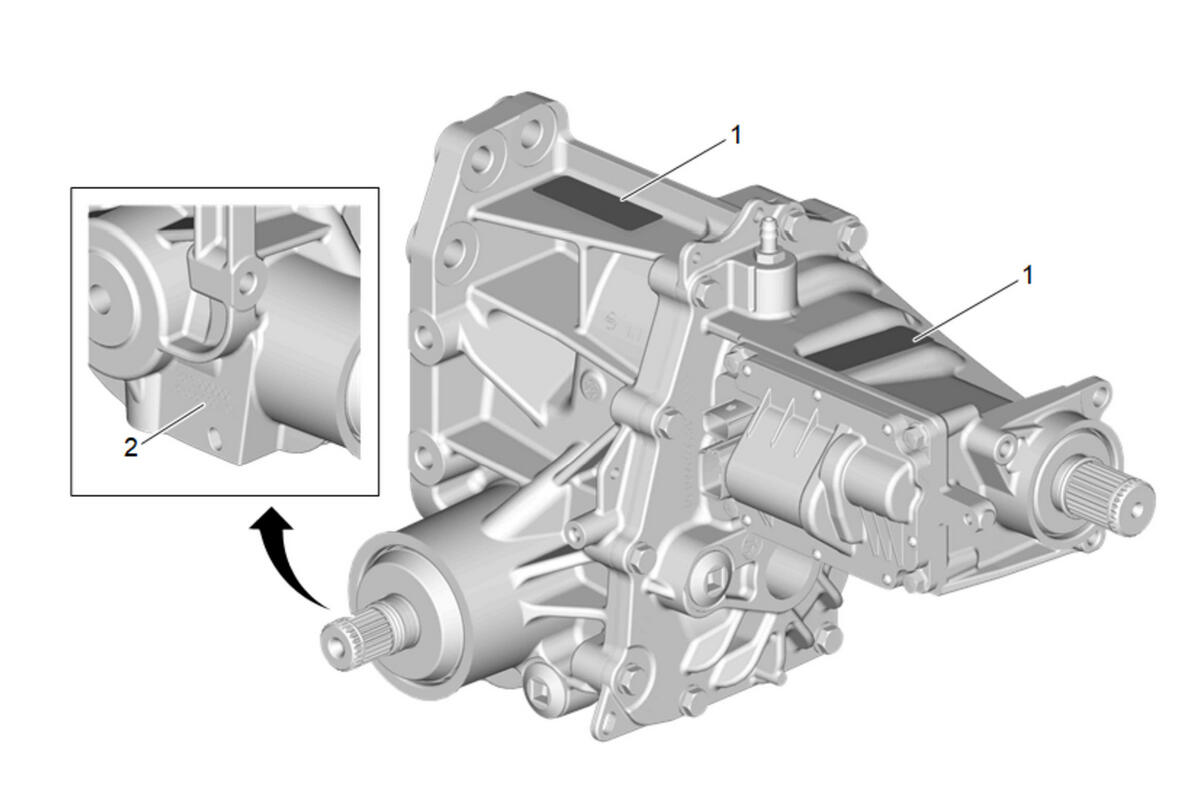

Fig 1: Power Transfer Unit Case

Courtesy of GENERAL MOTORS COMPANY

The power transfer unit primary identification label (1) is located on the rear extension housing. The power transfer unit secondary identification stamping (2) is located on the bottom of the main housing.
