Automatic Transmission Components (M7U/M7W)

GM4341300Courtesy of GENERAL MOTORS COMPANY

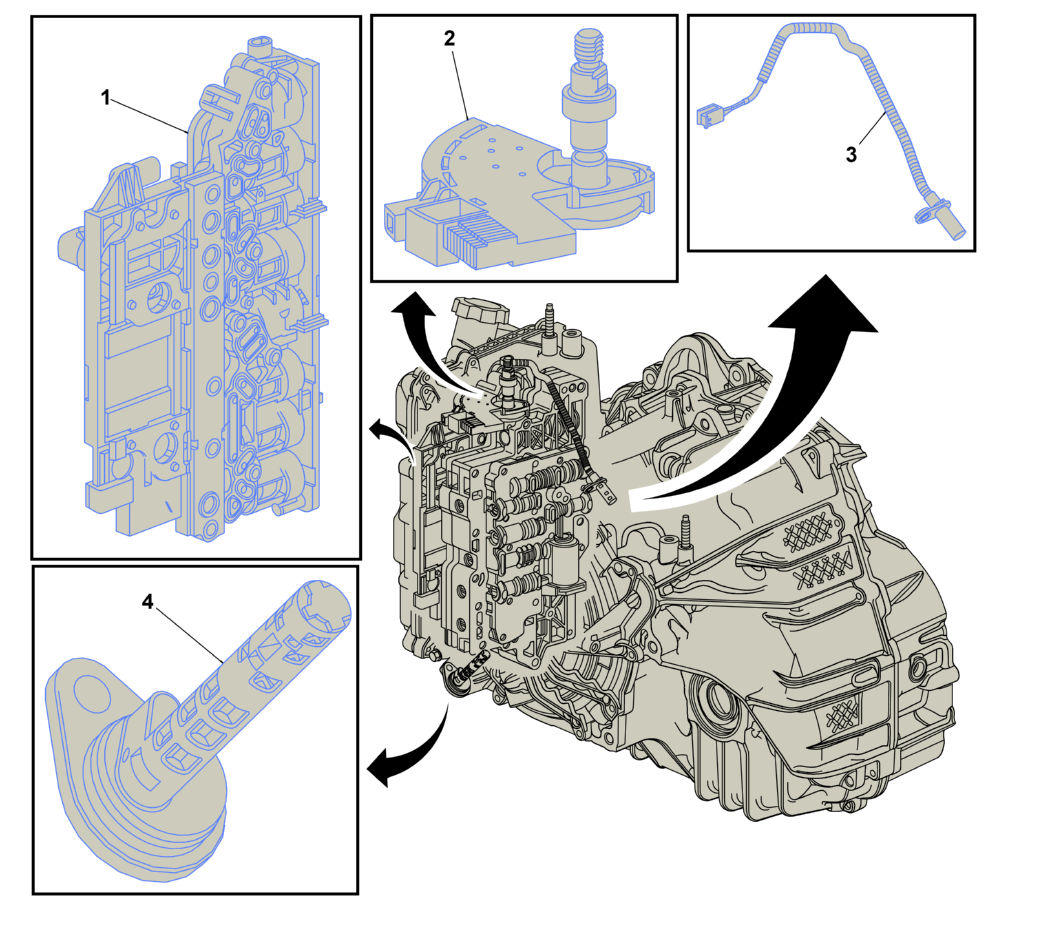

Automatic Transmission Components (M7U/M7W)

Items
1. Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly (M7U/M7W)
2. B15 Transmission Internal Mode Switch
3. B14A Transmission Output Shaft Speed Sensor
4. B14C Transmission Input Shaft Speed Sensor
