Installation Procedure
- Transfer the rear side door inside handle cable. Refer to Rear Side Door Inside Handle Cable Replacement .
- Transfer the rear side door outside handle cable. Refer to Rear Side Door Outside Handle Cable Replacement .
Install the outside handle bracket (1) and the rear side door latch (2) assembly in the vehicle.
- CAUTION:
Refer to Fastener Caution .
NOTE:Install and torque the four latch fasteners in proper sequence to prevent damage to the latch mechanism.

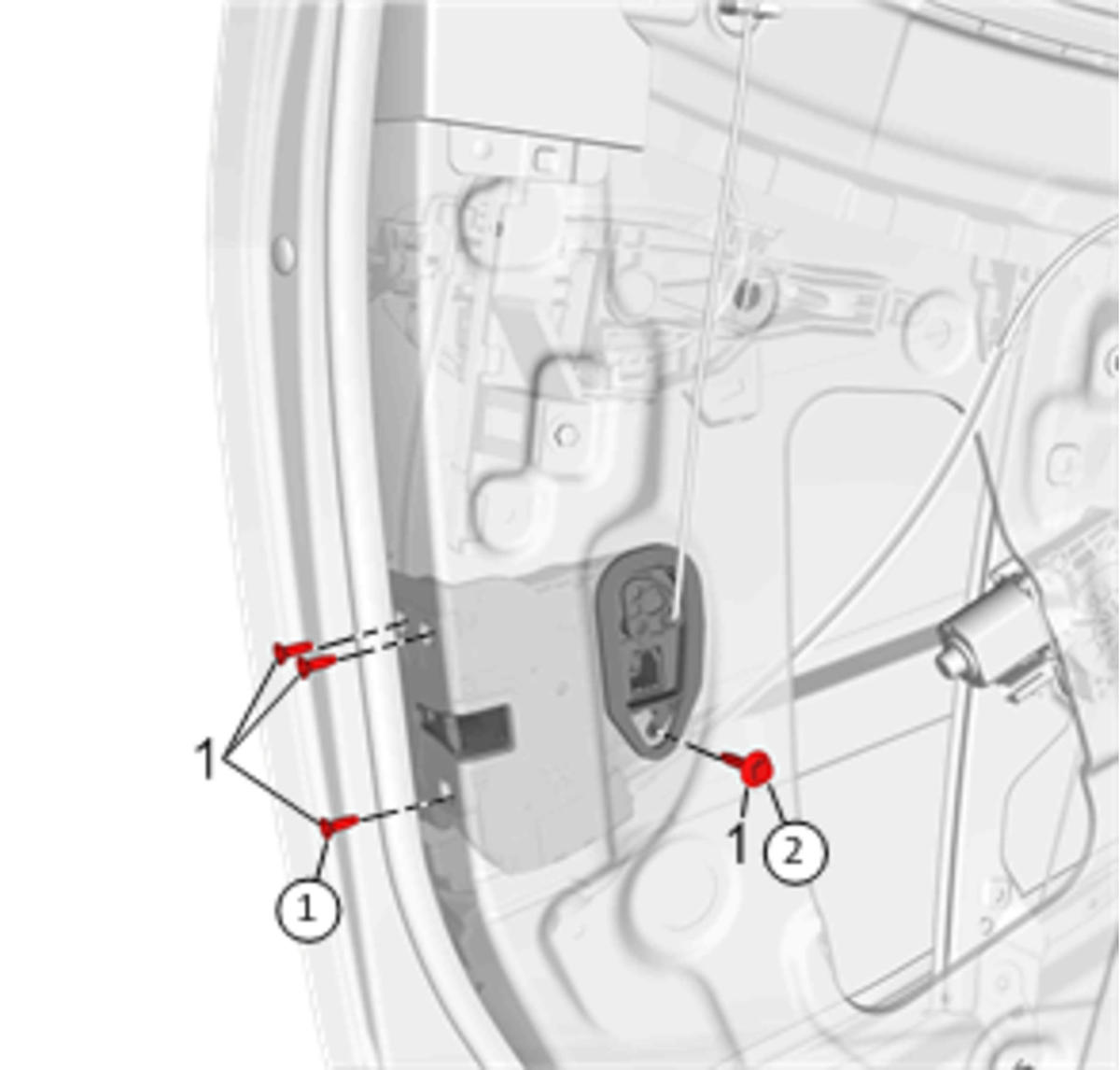

Install the four fasteners (1) to the rear side door latch and tighten to 11 N.m (97 lb in).
- Install the rear side door outside handle bracket screw. Refer to Rear Side Door Outside Handle Bracket Replacement .
- Install the rear side door outside handle. Refer to Rear Side Door Outside Handle Replacement .
- Connect the electrical connector.
- Install the rear side door locking rod. Refer to Rear Side Door Locking Rod Knob Replacement .
- Inspect the door latch and the outside handle for proper operation before install the door trim.
- Install the water deflector.
- Install the rear side door trim. Refer to Rear Side Door Trim Replacement (Crew Cab)Rear Side Door Trim Replacement (Extended Cab) .
