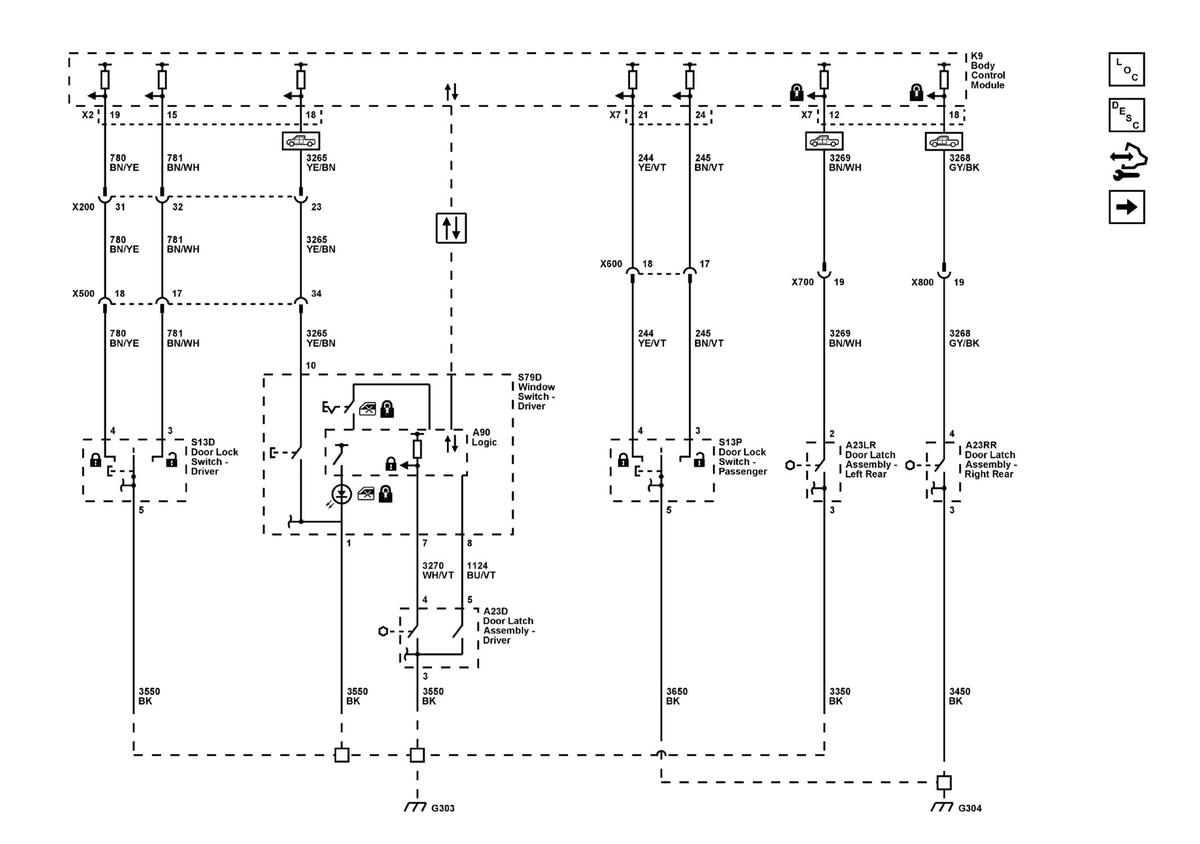

Door Lock/Indicator Wiring Schematics: Controls
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
