Installation Procedure

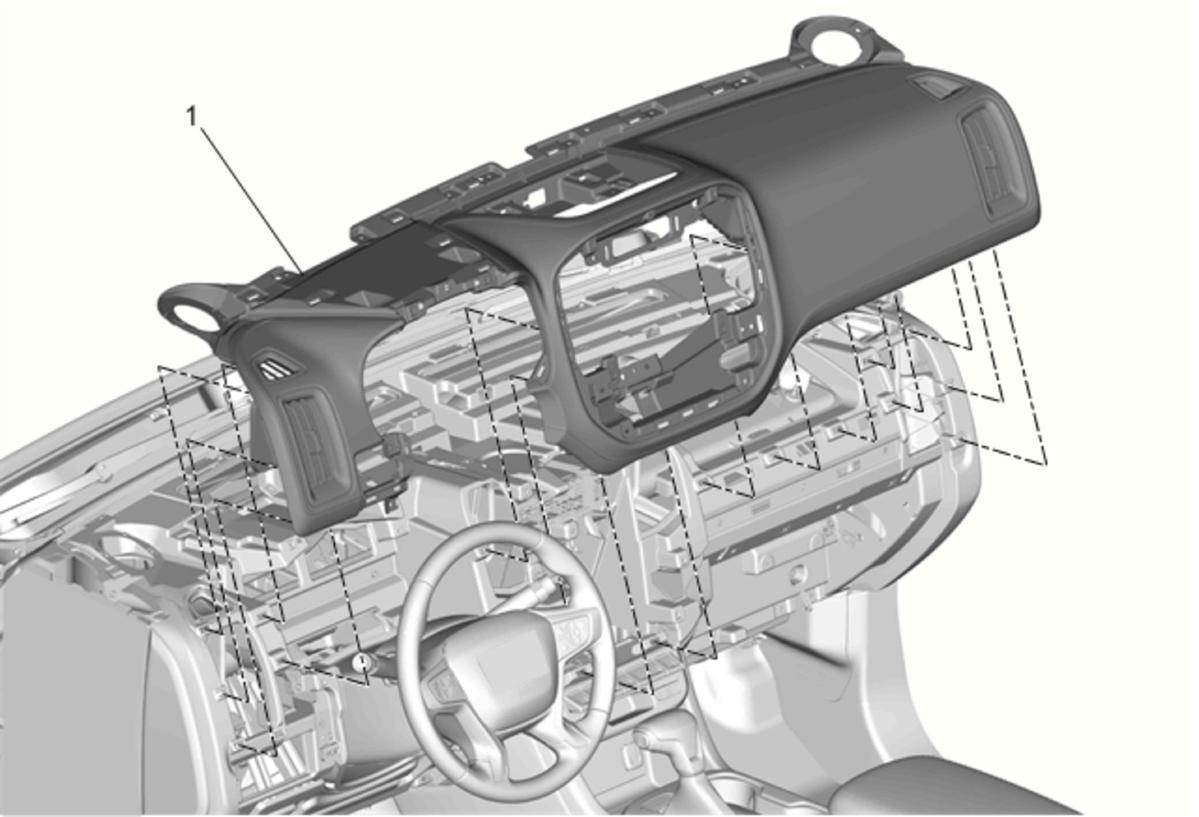

  1. GM3702650Courtesy of GENERAL MOTORS COMPANY

    When replacing the instrument panel apply tape to the edges of the new panel.

  2. With the aid of an assistant, position the instrument panel (1) into the vehicle.

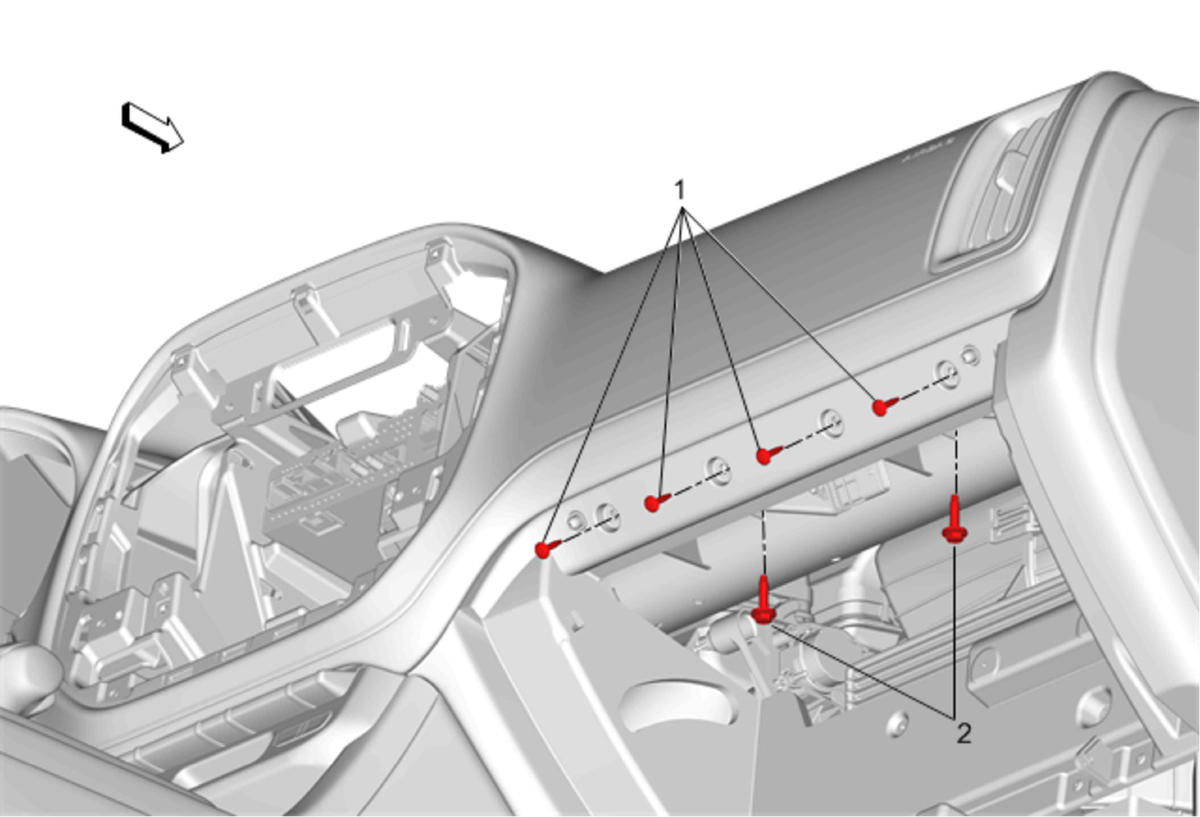

  3. GM3702649Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    Instrument Panel Inflatable Restraint Module Bolt (2) - Install and tighten [2x] 9 N.m (80 lb in)

  4. Instrument Panel Fastener (1) - Install and tighten [4x] 2.5 N.m (22 lb in)
  5. Attach the connector to the tie bar retainer. Connect the instrument panel inflatable restraint module electrical connector.

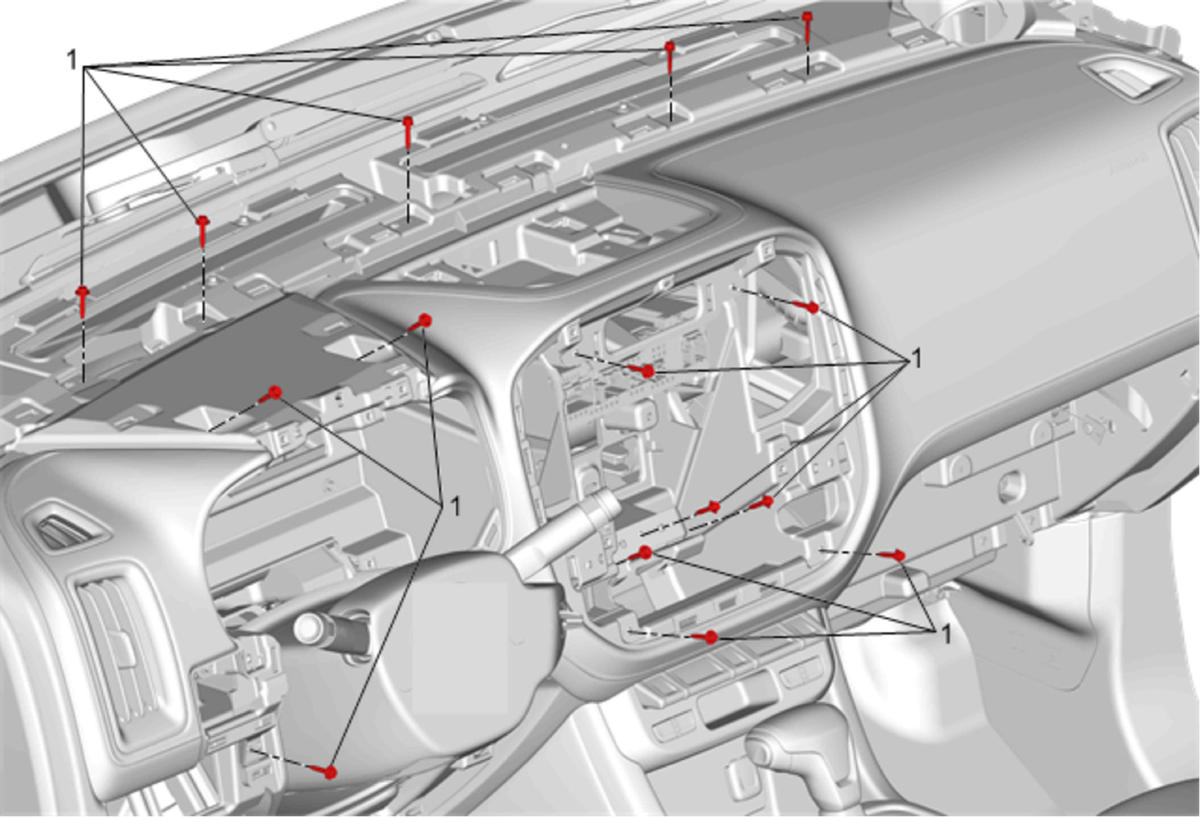

  6. GM3702648Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fastener (1) - Install and tighten [15x] 2.5 N.m (22 lb in)

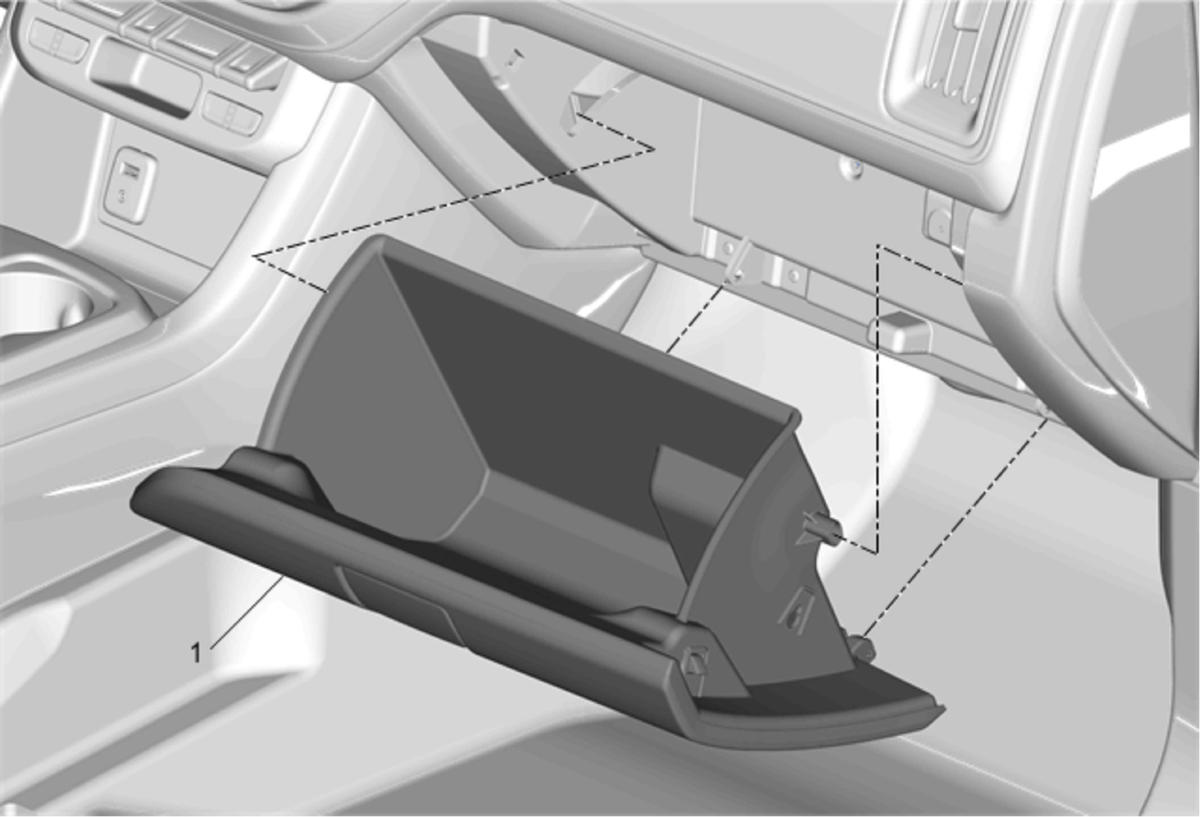

  7. GM3717343Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install - Instrument Panel Compartment Door Replacement

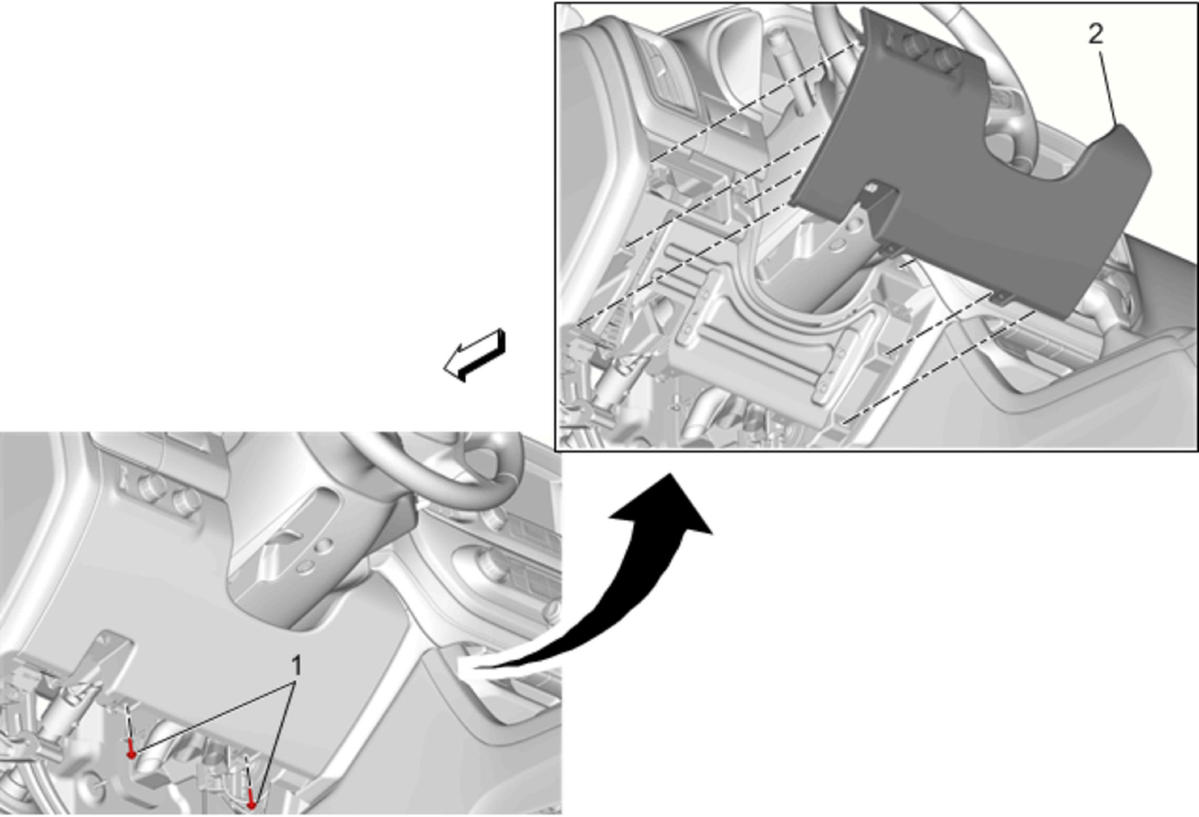

  8. GM3684273Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (2) - Install - Instrument Panel Knee Bolster Replacement

  9. GM3703381Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement

  10. GM3716156Courtesy of GENERAL MOTORS COMPANY

    Install both of the radio front speakers (2). Radio Front Speaker Replacement

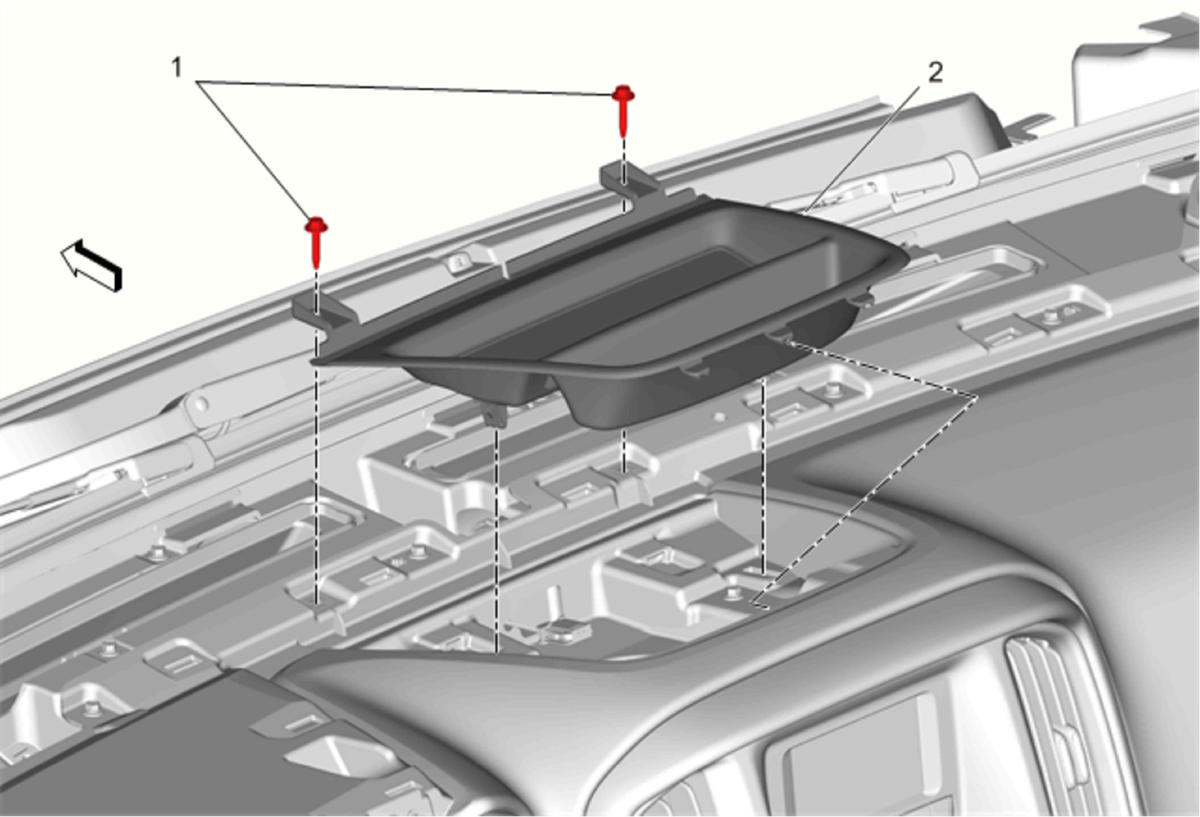

  11. GM3681632Courtesy of GENERAL MOTORS COMPANY

    { If equipped }Instrument Panel Stowage Tray (2) - Install - Instrument Panel Stowage Tray Replacement

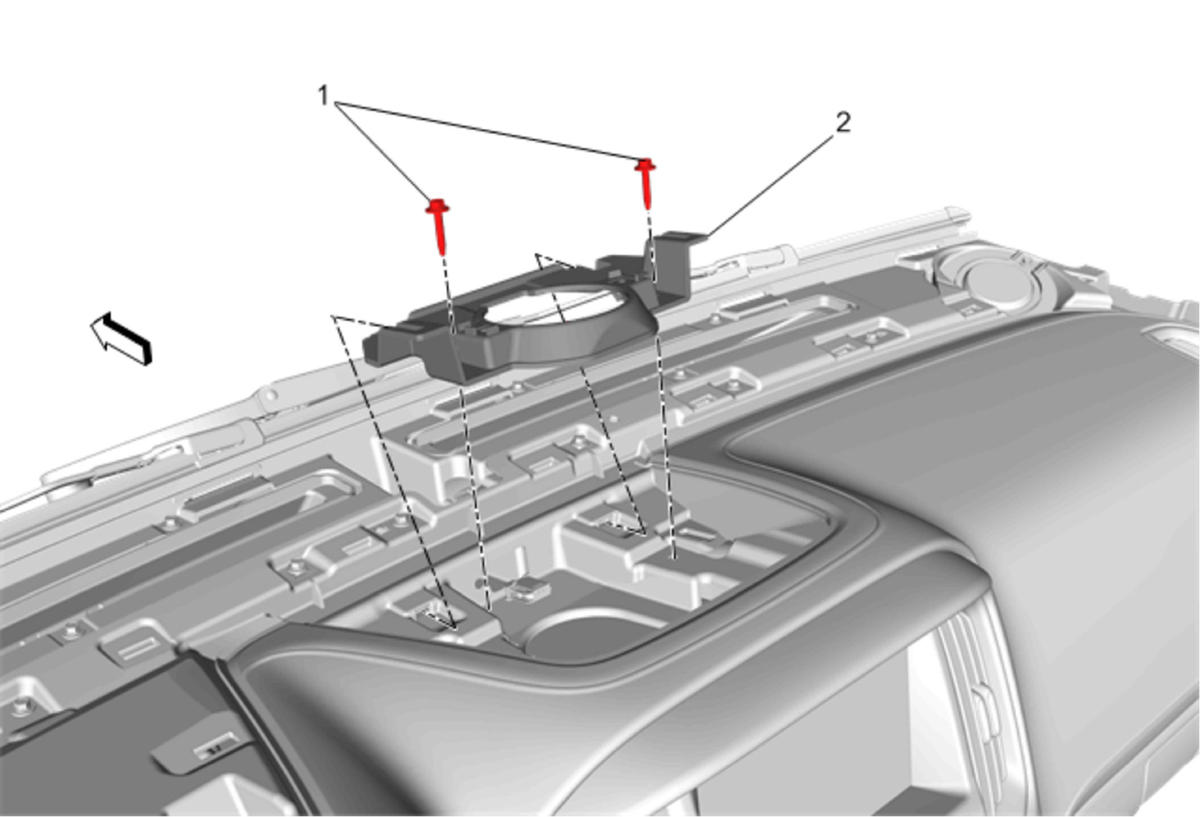

  12. GM3684572Courtesy of GENERAL MOTORS COMPANY

    { If equipped }Instrument Panel Accessory Bracket (2) - Remove - Instrument Panel Accessory Bracket Replacement

  13. Enable the SIR System. SIR Disabling and Enabling
