Reductant Control Module Replacement
WARNING: This page is about a different variant/trim than selected.

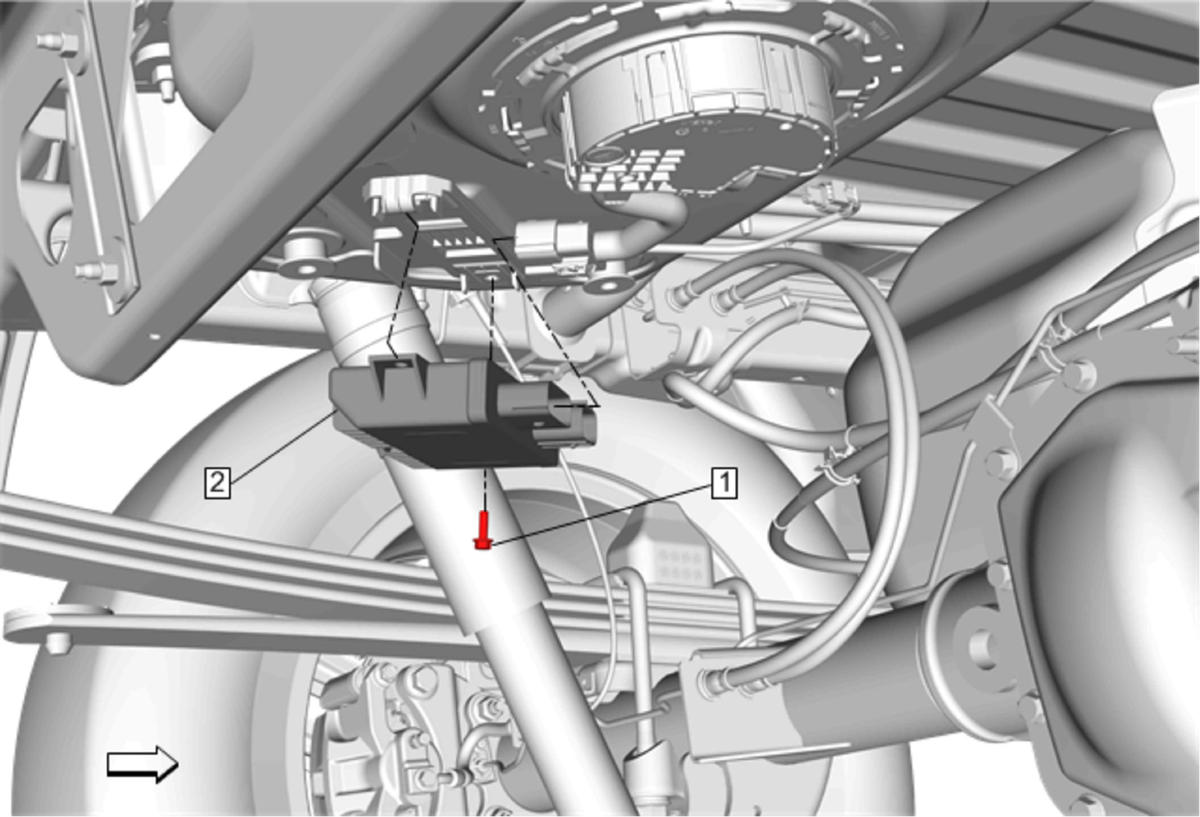

| Callout | Component Name |
|---|---|
| Preliminary Procedure Emission Reduction Fluid Tank Shield Replacement |
|
| 1 | Emission Reduction Fluid Controller Bolt
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 2 | Emission Reduction Fluid Controller Procedure Disconnect the electrical connector. |
