Home › GMC › 2019 › Canyon SL › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Schematics › MYB

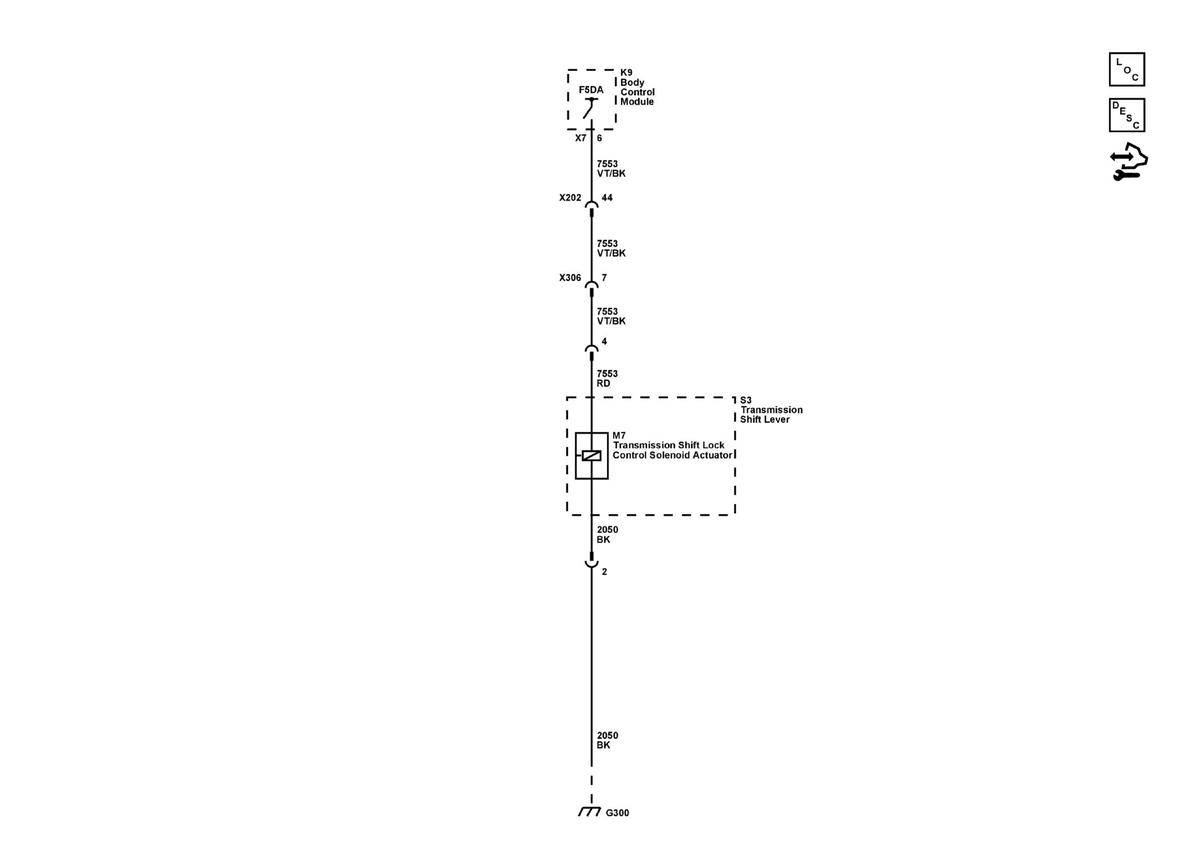

Shift Lock Control Schematics: MYB

GM4952244Courtesy of GENERAL MOTORS COMPANY
