Engine Controls And Fuel - 5.3L (L83) - Engine Controls Schematics
›
Schematic Wiring Diagrams
›
Engine Controls Wiring Schematics
›

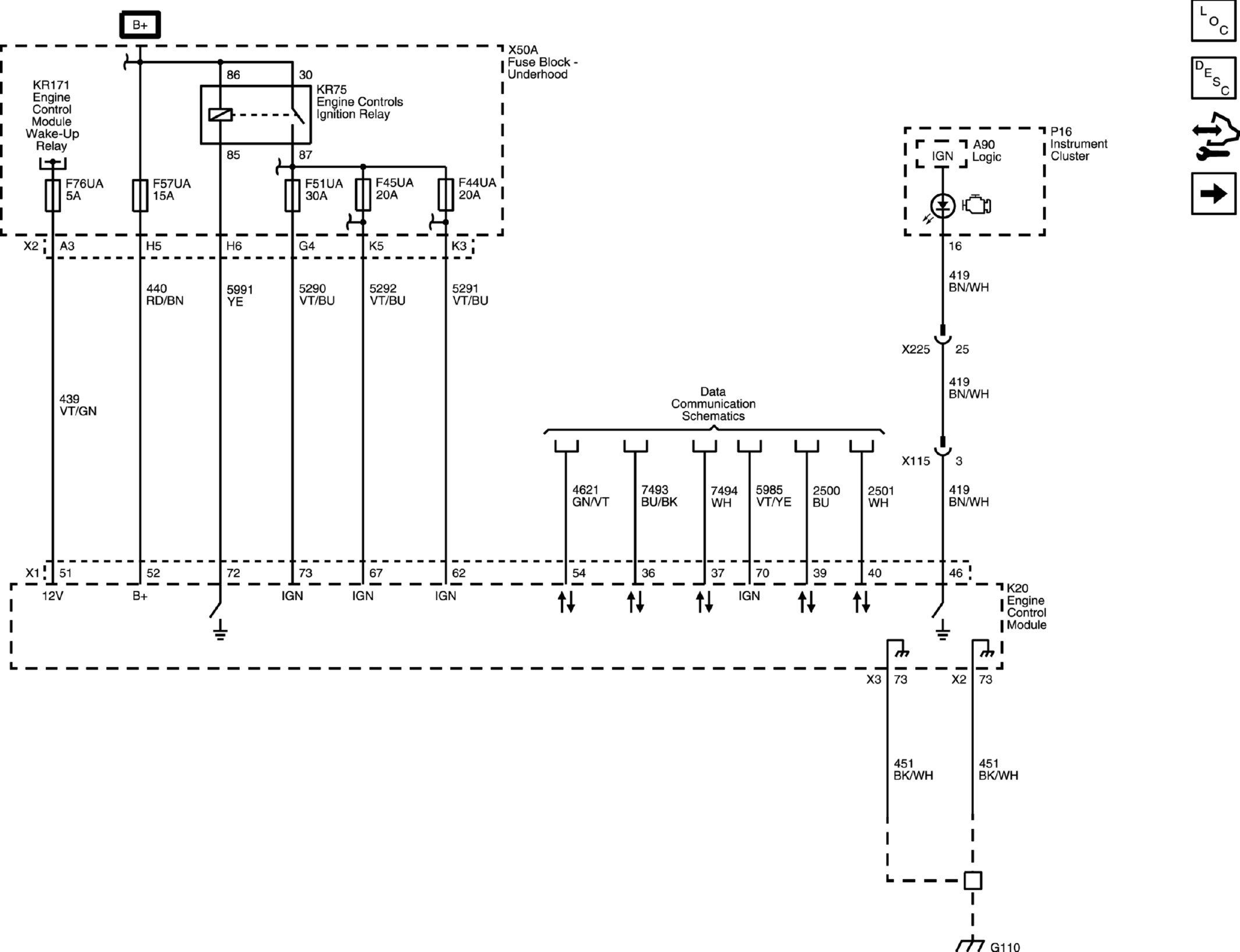

Module Power, Ground, Serial Data and MIL
Module Power, Ground, Serial Data and MIL
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
