Installation Procedure

  1. Install a plug into the wheel speed sensor hole in the wheel hub and bearing assembly.
  2. Thoroughly clean the wheel speed sensor mounting pad on the wheel hub and bearing assembly of any accumulated dirt, grease, and debris.
  3. Remove the wheel speed sensor hole plug.
  4. Apply a light coat of wheel speed anti-corrosion grease to the wheel speed sensor and mounting pad on the wheel hub and bearing assembly. Adhesives, Fluids, Lubricants, and Sealers

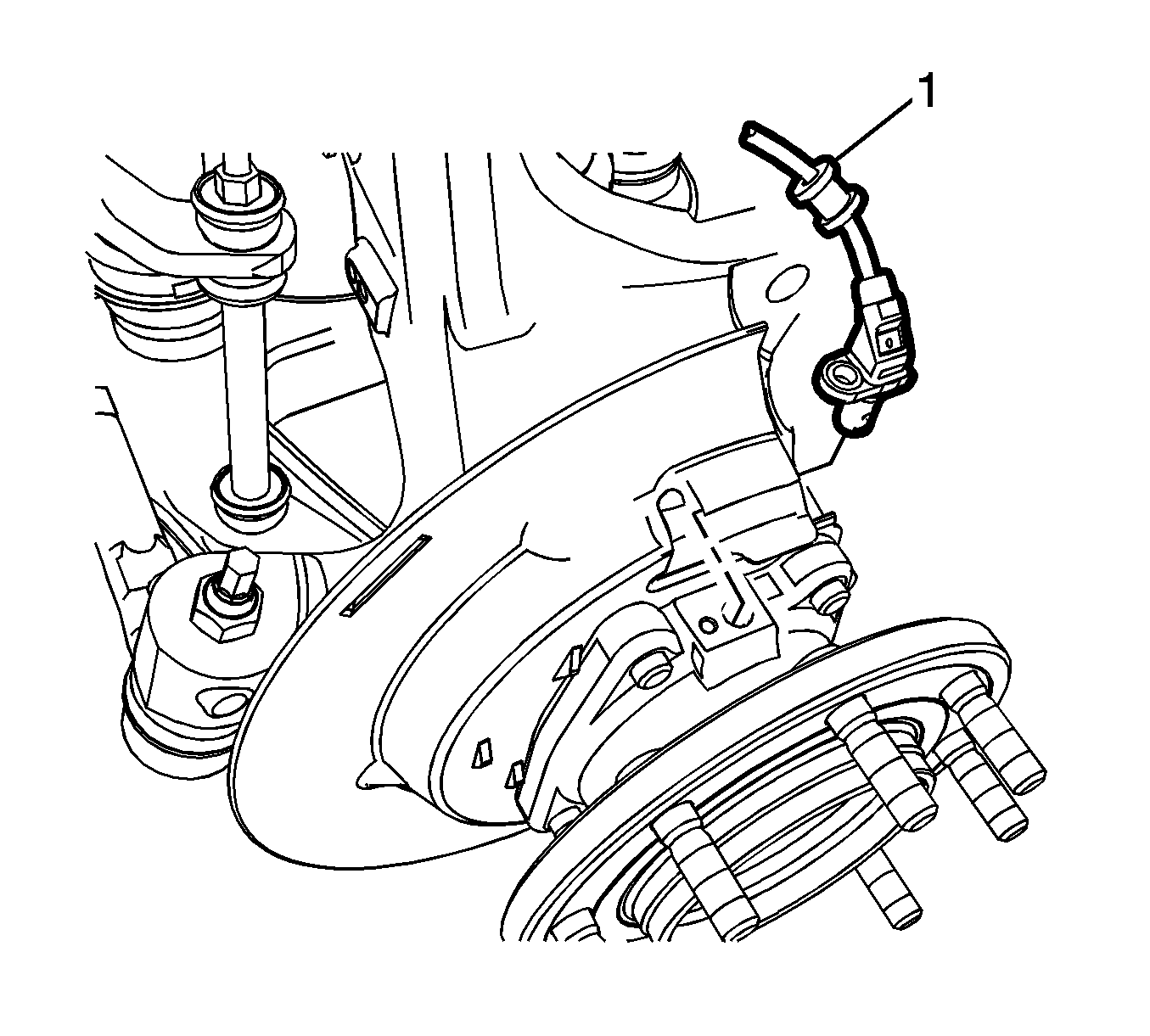

  5. GM2406418Courtesy of GENERAL MOTORS COMPANY

    Install the wheel speed sensor (1) to the wheel hub and bearing assembly.

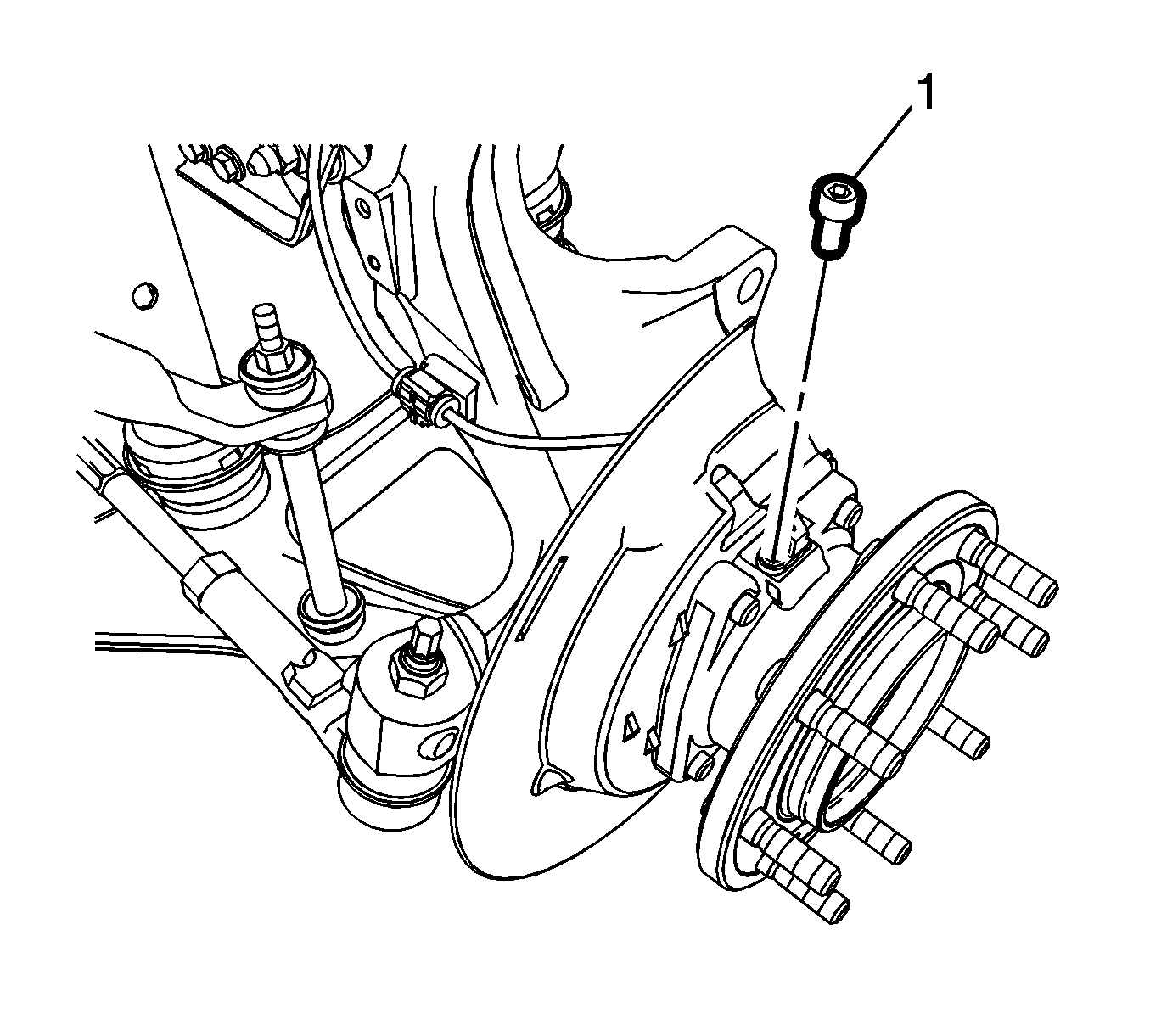

  6. GM2406417Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install a new wheel speed sensor bolt (1) and tighten to 13 N.m (115 lb in).

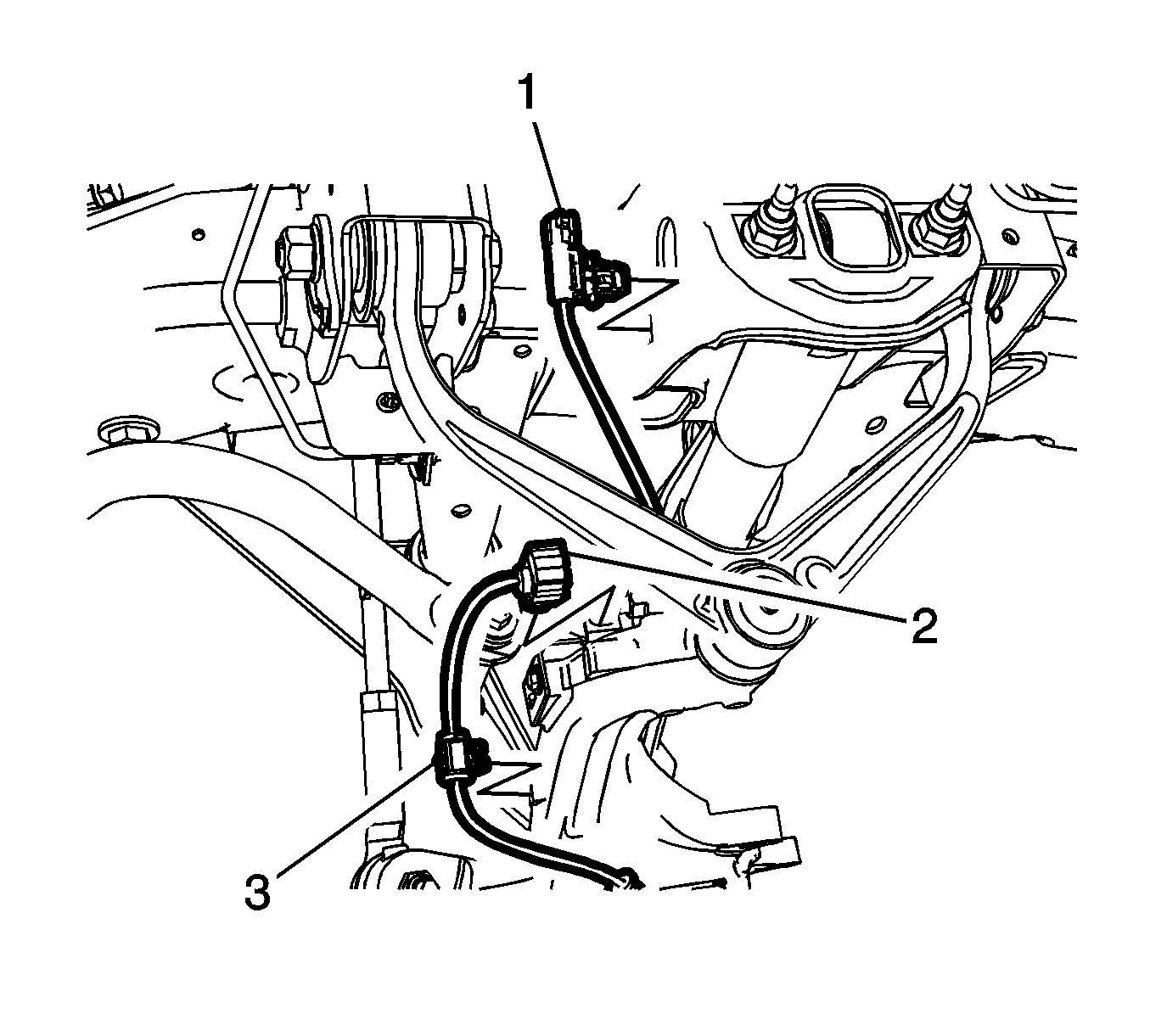

  7. GM2406416Courtesy of GENERAL MOTORS COMPANY

    Install the wheel speed sensor harness retainers (2) and (3) to the steering knuckle.

  8. Install the wheel speed sensor electrical connector (1) retainer to the shock absorber tower.
  9. Connect the wheel speed sensor electrical connector.
  10. Install the brake rotor. Front Brake Rotor Replacement (JD9)Front Brake Rotor Replacement (J95)Front Brake Rotor Replacement (J96) .
  11. Install the tire and wheel assembly. Tire and Wheel Removal and Installation (6-Lug Wheel)Tire and Wheel Removal and Installation (8-Lug Wheel)Tire and Wheel Removal and Installation (Dual Rear Wheels) .
  12. Perform the diagnostic system check. Diagnostic System Check - Vehicle .
