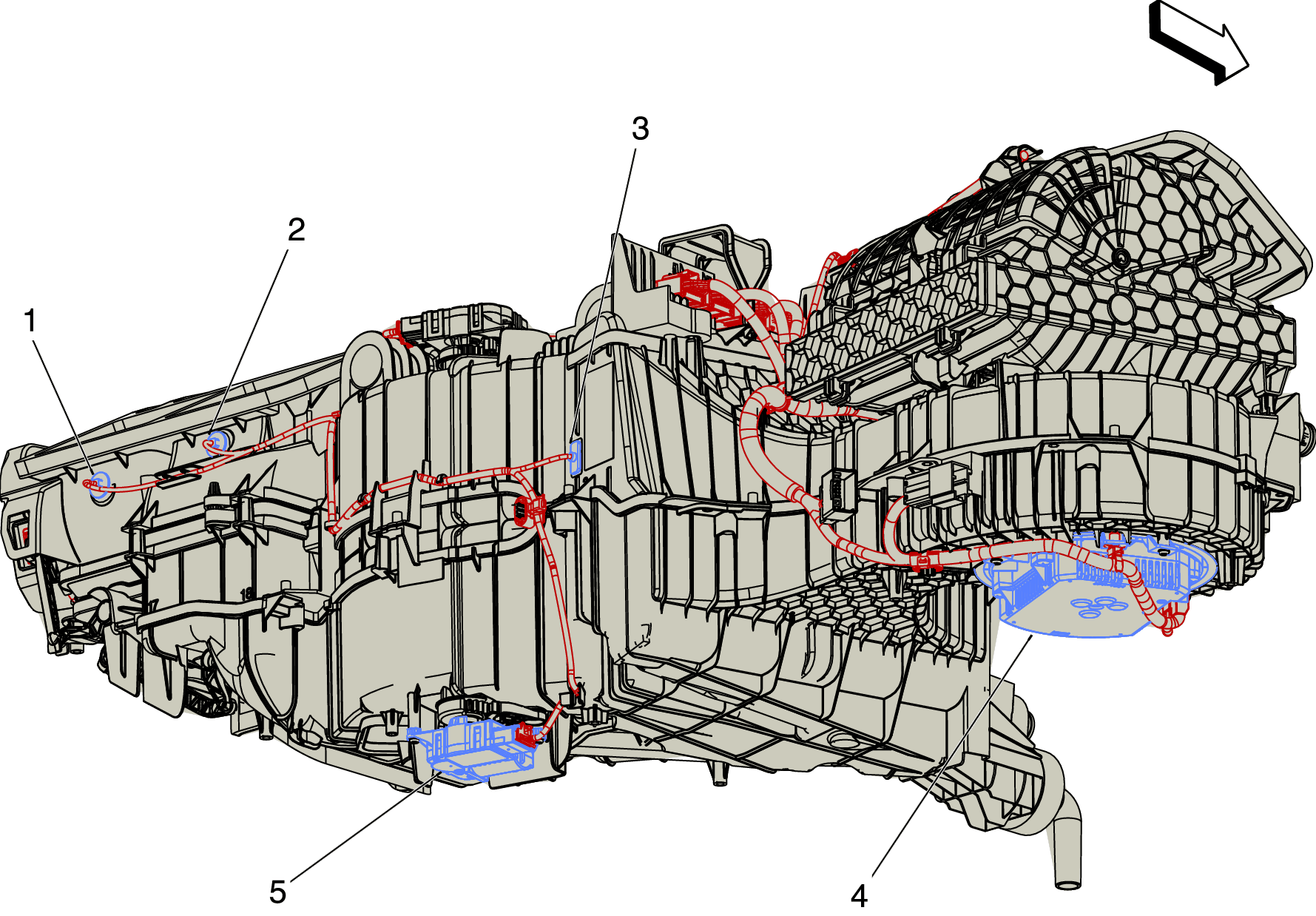

Back of HVAC Assembly Components
Back of HVAC Assembly Components
| Items |
|---|
| 1. B7H Air Temperature Sensor - Duct Left Upper (CJ2) |
| 2. B7J Air Temperature Sensor - Duct Right Upper (CJ2) |
| 3. B39 A/C Evaporator Temperature Sensor (C67 or CJ2) B39 A/C Evaporator Temperature Sensor |
| 4. M8 Blower Motor M8 Blower Motor |
| 5. M6R Air Temperature Door Actuator - Right (CJ2) M6R Air Temperature Door Actuator - Right |
