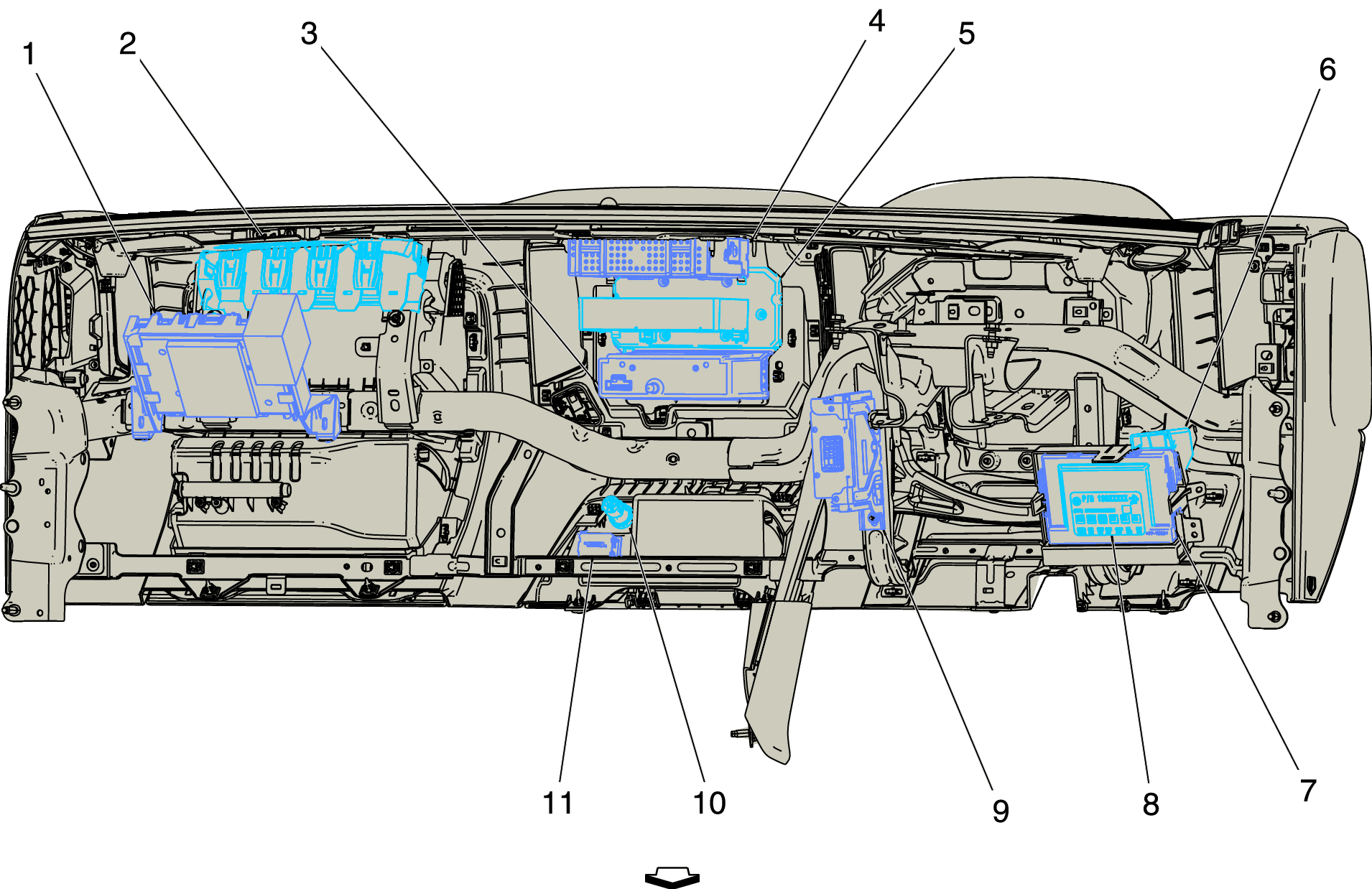

Rear of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY

Rear of Instrument Panel Components

Items
1 K74 Human Machine Interface Control Module (IO5 or IO6) K74 Human Machine Interface Control Module X1K74 Human Machine Interface Control Module X2K74 Human Machine Interface Control Module X3 ()K74 Human Machine Interface Control Module X4K74 Human Machine Interface Control Module X5 (IO5/IO6)K74 Human Machine Interface Control Module X7
2. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag ((3500)/2500+ZW9/Crew Cab)F101 Passenger Instrument Panel Air Bag X1 (Light Duty)F101 Passenger Instrument Panel Air Bag X2 (Light Duty)
3. A33 Media Disc Player (TG5/U42/D07) A33 Media Disc Player X1 (TG5)A33 Media Disc Player X1 (U42)A33 Media Disc Player X2 (U42)A33 Media Disc Player X3 (U42)A33 Media Disc Player X4 (U42)A33 Media Disc Player X5 (U42)
4. A11 Radio A11 Radio X1A11 Radio X2 (-IOB)A11 Radio X2 (IOB)A11 Radio X3 (IO5/IO6)A11 Radio X4A11 Radio X5 (IOB)A11 Radio X6 (IO5/IO6 +U2K)A11 Radio X7 (IOB)
5. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1K73 Telematics Communication Interface Control Module X2K73 Telematics Communication Interface Control Module X5K73 Telematics Communication Interface Control Module X7
6. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1K56 Serial Data Gateway Module X2
7. K188 Human Machine Interface Control Module Bypass Module (IO5 or IO6) K188 Human Machine Interface Control Module Bypass Module X1K188 Human Machine Interface Control Module Bypass Module X2K188 Human Machine Interface Control Module Bypass Module X3
8. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7
9. T1 Accessory DC/AC Power Inverter Module (KI4 or KI5) T1 Accessory DC/AC Power Inverter Module
10. X80J Accessory Power Receptacle - Instrument Panel 1 (D07) X80J Accessory Power Receptacle - Instrument Panel 1
11. X81 Accessory Power Receptacle - 110V AC (KI4) X81 Accessory Power Receptacle - 110V AC X1X81 Accessory Power Receptacle - 110V AC X2
