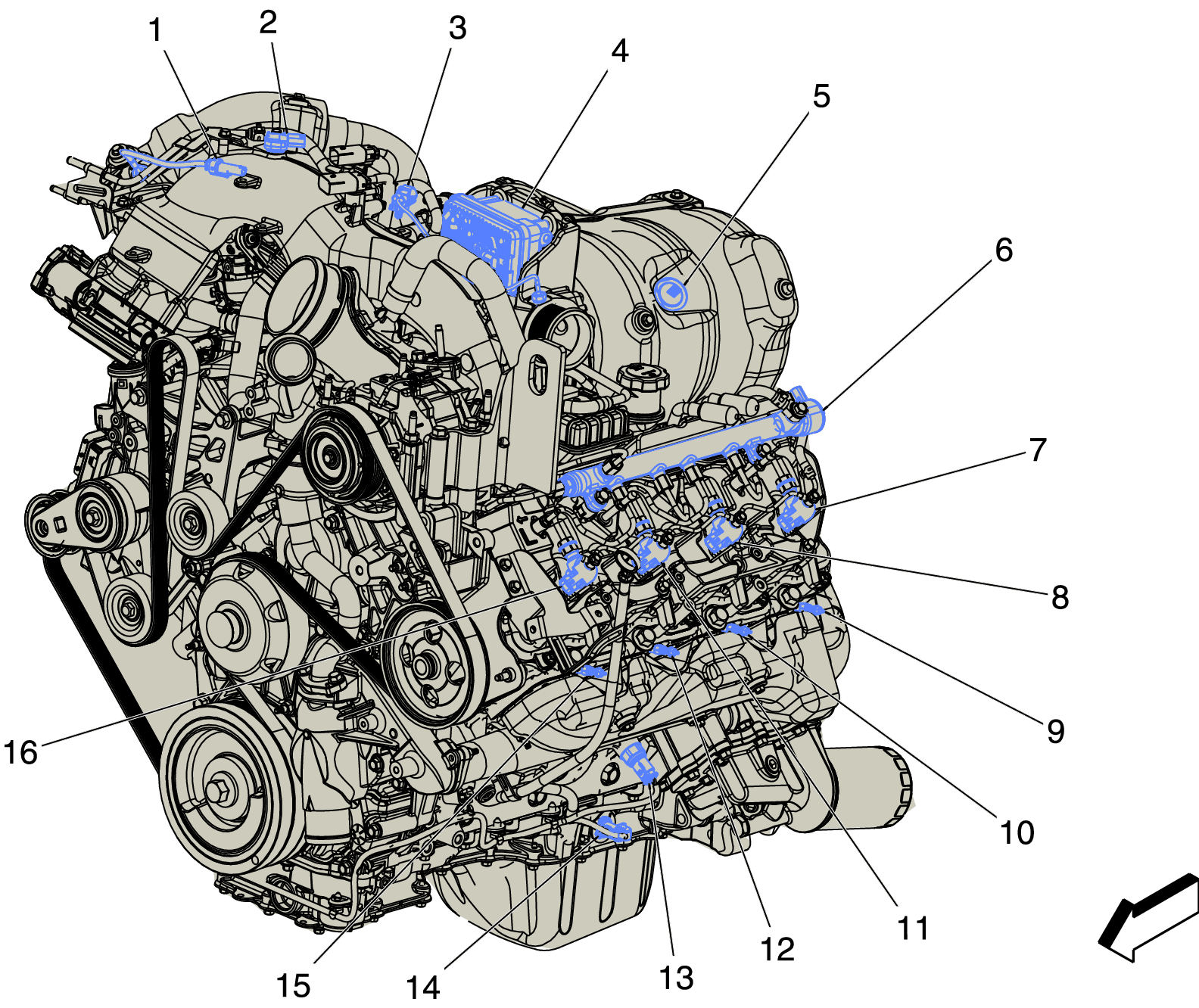

Left Side of Engine Components (L5P)

Courtesy of GENERAL MOTORS COMPANY

Left Side of Engine Components (L5P)

Items
1. B131A Exhaust Temperature Sensor 1 (L5P) B131A Exhaust Temperature Sensor 1
2. B65 Intake Manifold Pressure and Air Temperature Sensor (L5P) B65 Intake Manifold Pressure and Air Temperature Sensor
3. B193A Charge Air Cooler Inlet Temperature Sensor (L5P) B193A Charge Air Cooler Inlet Temperature Sensor
4. M103 Turbocharger Vane Position Actuator (L5P) M103 Turbocharger Vane Position Actuator
5. B195A Nitrogen Oxides Sensor 1 (L5P) B195A Nitrogen Oxides Sensor 1
6. Q18B Fuel Pressure Regulator 2 (L5P) Q18B Fuel Pressure Regulator 2
7. Q17H Fuel Injector 8 Q17H Fuel Injector 8 (L5P)Q17H Fuel Injector 8 (L83)Q17H Fuel Injector 8 (L96)Q17H Fuel Injector 8 (LC8)
8. Q17F Fuel Injector 6 Q17F Fuel Injector 6 (L5P)Q17F Fuel Injector 6 (L83)Q17F Fuel Injector 6 (L96)Q17F Fuel Injector 6 (LC8)
9. E12H Glow Plug 8 (L5P) E12H Glow Plug 8
10. E12F Glow Plug 6 (L5P) E12F Glow Plug 6
11. Q17D Fuel Injector 4 Q17D Fuel Injector 4 (L5P)Q17D Fuel Injector 4 (L83)Q17D Fuel Injector 4 (L96)Q17D Fuel Injector 4 (LC8)
12. E12D Glow Plug 4 (L5P) E12D Glow Plug 4
13. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (L5P)B37B Engine Oil Pressure Sensor (L83)B37B Engine Oil Pressure Sensor (L96)
14. B35 Engine Oil Level Switch (1500 or L5P) B35 Engine Oil Level Switch (L5P)B35 Engine Oil Level Switch (L83)
15. E12B Glow Plug 2 (L5P) E12B Glow Plug 2
16. Q17B Fuel Injector 2 Q17B Fuel Injector 2 (L5P)Q17B Fuel Injector 2 (L83)Q17B Fuel Injector 2 (L96)Q17B Fuel Injector 2 (LC8)
