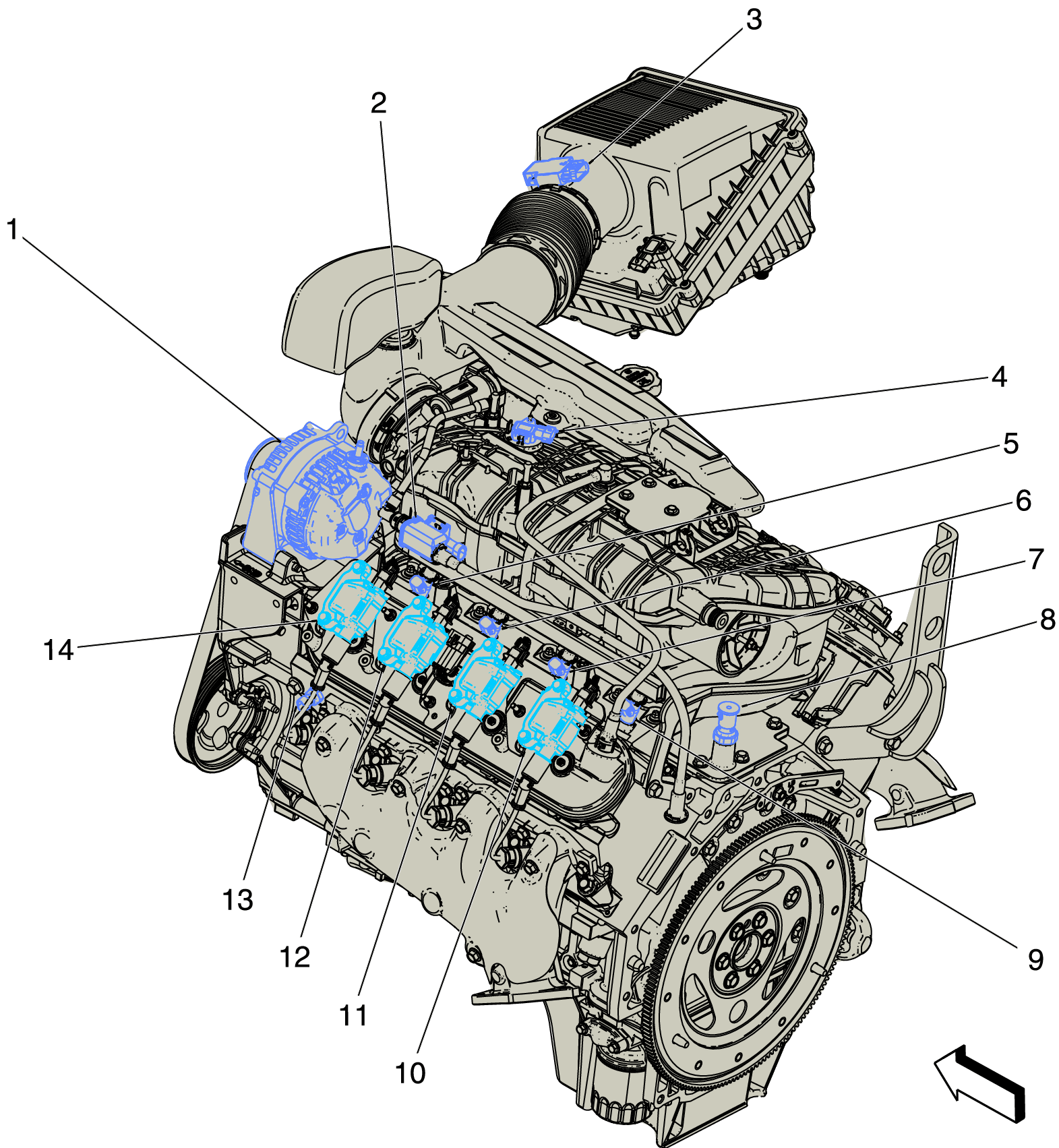

Left Side of Engine Components (L96)

Courtesy of GENERAL MOTORS COMPANY

Left Side of Engine Components (L96)

Items
1. G13 Generator G13 Generator X1 (-VYU)G13 Generator X1 (VYU)G13 Generator X2
2. Q12 Evaporative Emission Purge Solenoid Valve (except L5P) Q12 Evaporative Emission Purge Solenoid Valve (L83)Q12 Evaporative Emission Purge Solenoid Valve (L96)
3. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor
4. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (L83)B74 Manifold Absolute Pressure Sensor (L96)
5. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (L5P)Q17A Fuel Injector 1 (L83)Q17A Fuel Injector 1 (L96)Q17A Fuel Injector 1 (LC8)
6. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (L5P)Q17C Fuel Injector 3 (L83)Q17C Fuel Injector 3 (L96)Q17C Fuel Injector 3 (LC8)
7. Q17E Fuel Injector 5 Q17E Fuel Injector 5 (L5P)Q17E Fuel Injector 5 (L83)Q17E Fuel Injector 5 (L96)Q17E Fuel Injector 5 (LC8)
8. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (L5P)B37B Engine Oil Pressure Sensor (L83)B37B Engine Oil Pressure Sensor (L96)
9. Q17G Fuel Injector 7 Q17G Fuel Injector 7 (L5P)Q17G Fuel Injector 7 (L83)Q17G Fuel Injector 7 (L96)Q17G Fuel Injector 7 (LC8)
10. T8G Ignition Coil 7 (L83, L96 or LC8) T8G Ignition Coil 7 (L83)T8G Ignition Coil 7 (L96/LC8)
11. T8E Ignition Coil 5 (except L5P) T8E Ignition Coil 5 (L83)T8E Ignition Coil 5 (L96/LC8)
12. T8C Ignition Coil 3 (except L5P) T8C Ignition Coil 3 (L83)T8C Ignition Coil 3 (L96/LC8)
13. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (L5P)B34 Engine Coolant Temperature Sensor (L83)B34 Engine Coolant Temperature Sensor (L96)
14. T8A Ignition Coil 1 (except L5P) T8A Ignition Coil 1 (L83)T8A Ignition Coil 1 (L96/LC8)
