Installation Procedure

Rear Side Door Inside Handle Cable(1) - Install - Rear Side Door Inside Handle Cable Replacement

Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle Cable(1) - Install - Rear Side Door Outside Handle Cable Replacement

Courtesy of GENERAL MOTORS COMPANY
Transfer components as necessary.
Rear Side Door Outside Handle Bracket(1) - Install - Rear Side Door Outside Handle Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch Bolt(1) - Install and tighten [4x] 9 Nm(80 lb in)

Fig 1: Latch Mechanism Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

NOTE:
Tighten in proper sequence to prevent damage to the latch mechanism.

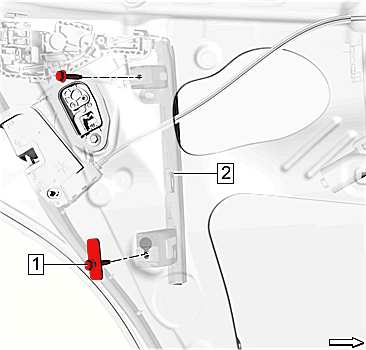

Rear Side Door Window Channel Rear Retainer(2) - Install - Rear Side Door Window Channel Rear Retainer Replacement

Courtesy of GENERAL MOTORS COMPANY
Connect the electrical connector.
Rear Side Door Water Deflector - Install - Rear Side Door Water Deflector Replacement (Equinox)Rear Side Door Water Deflector Replacement (Terrain)
Inspect the door latch, window and outside handle for proper operation before installing the door trim.
