Home › GMC › 2019 › Terrain SL › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic and Routing Diagrams › Defogger Schematics › Defogger

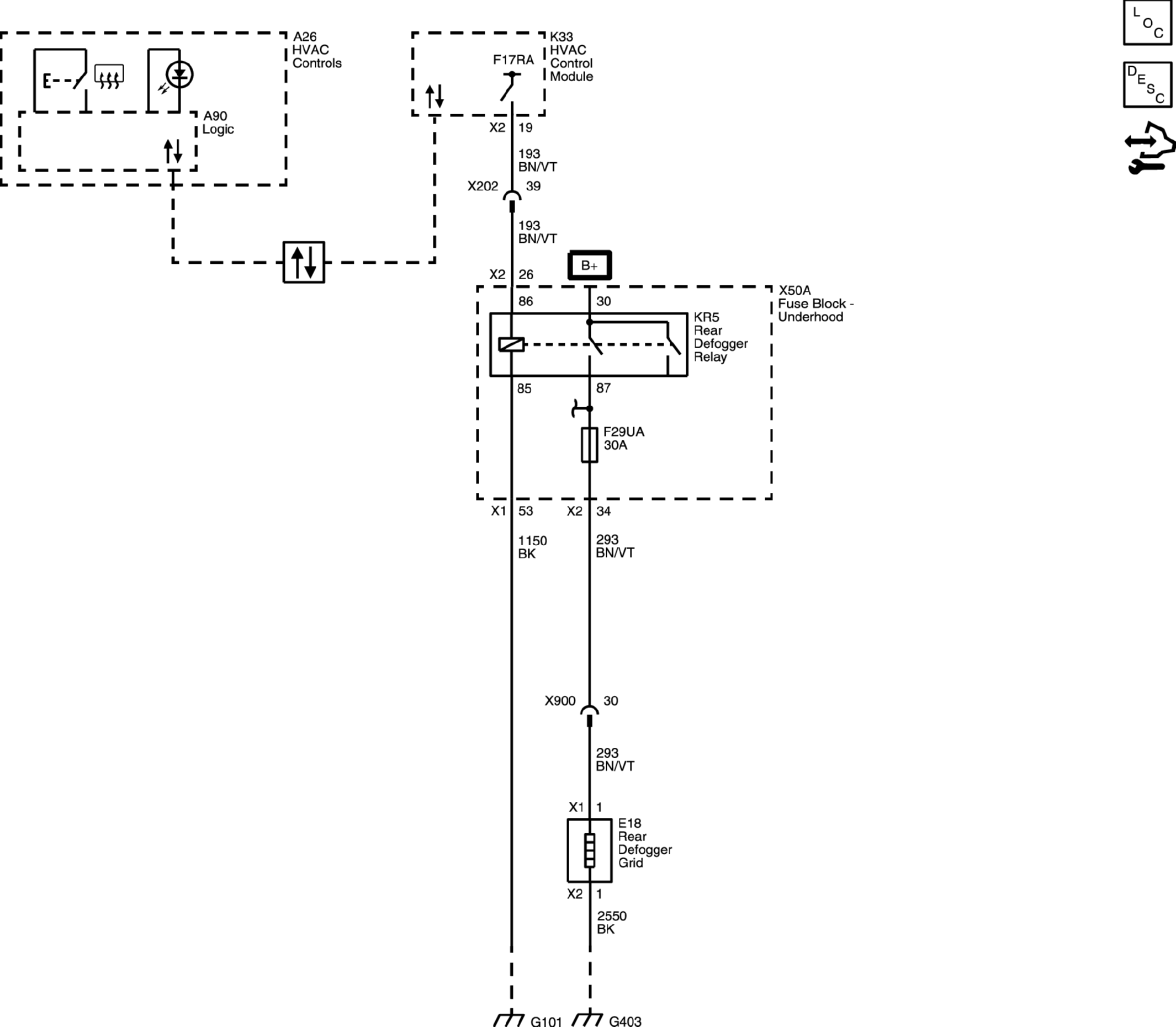

Defogger Schematics: Defogger

GM4874081Courtesy of GENERAL MOTORS COMPANY
