Installation Procedure

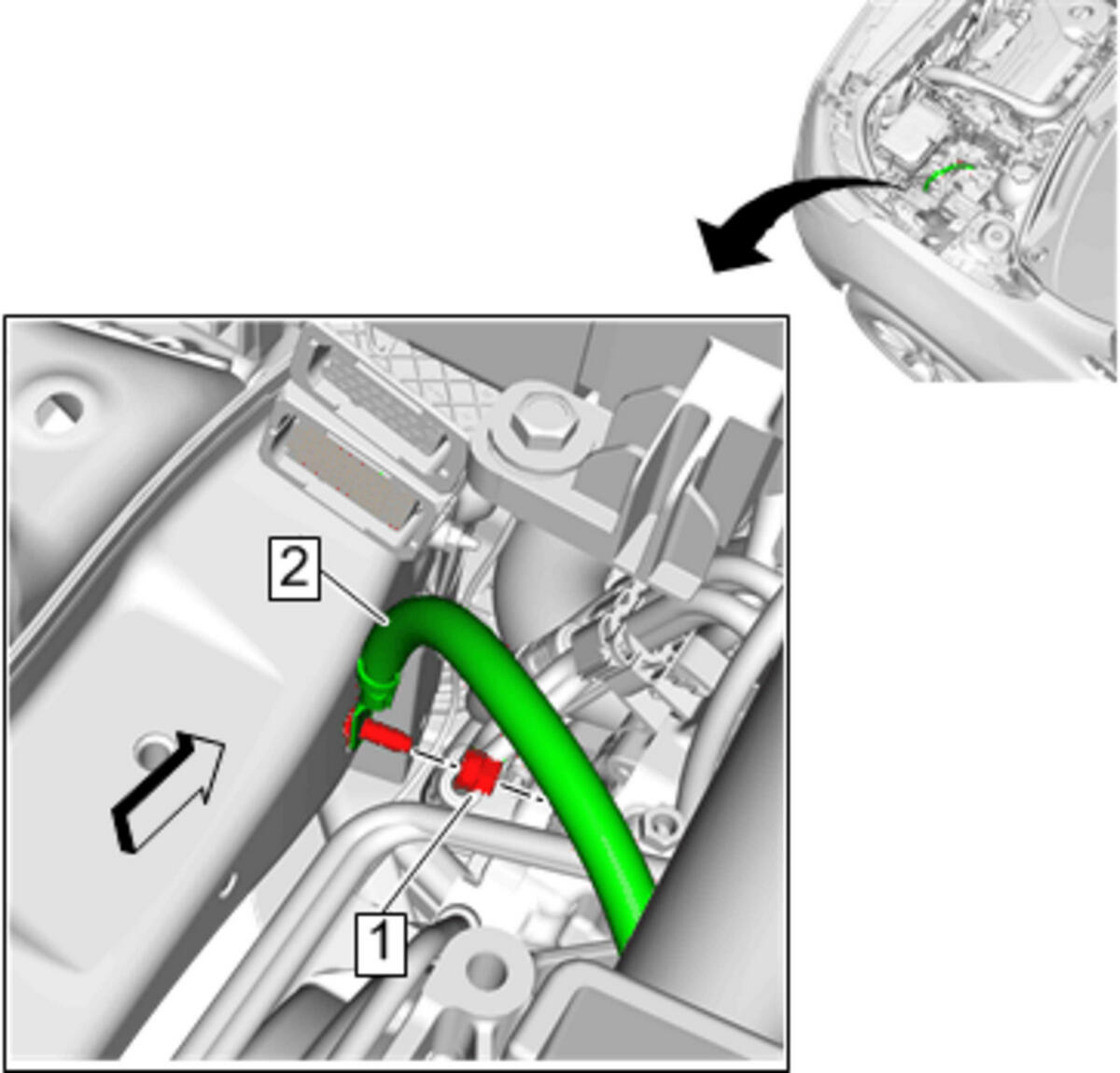

Battery Negative Cable Extension Cable (2) - Install

Courtesy of GENERAL MOTORS COMPANY
Battery Negative Cable Extension Cable Fastener (1) - Install and tighten 9 N.m (80 lb in)
CAUTION:
Refer to Fastener Caution .

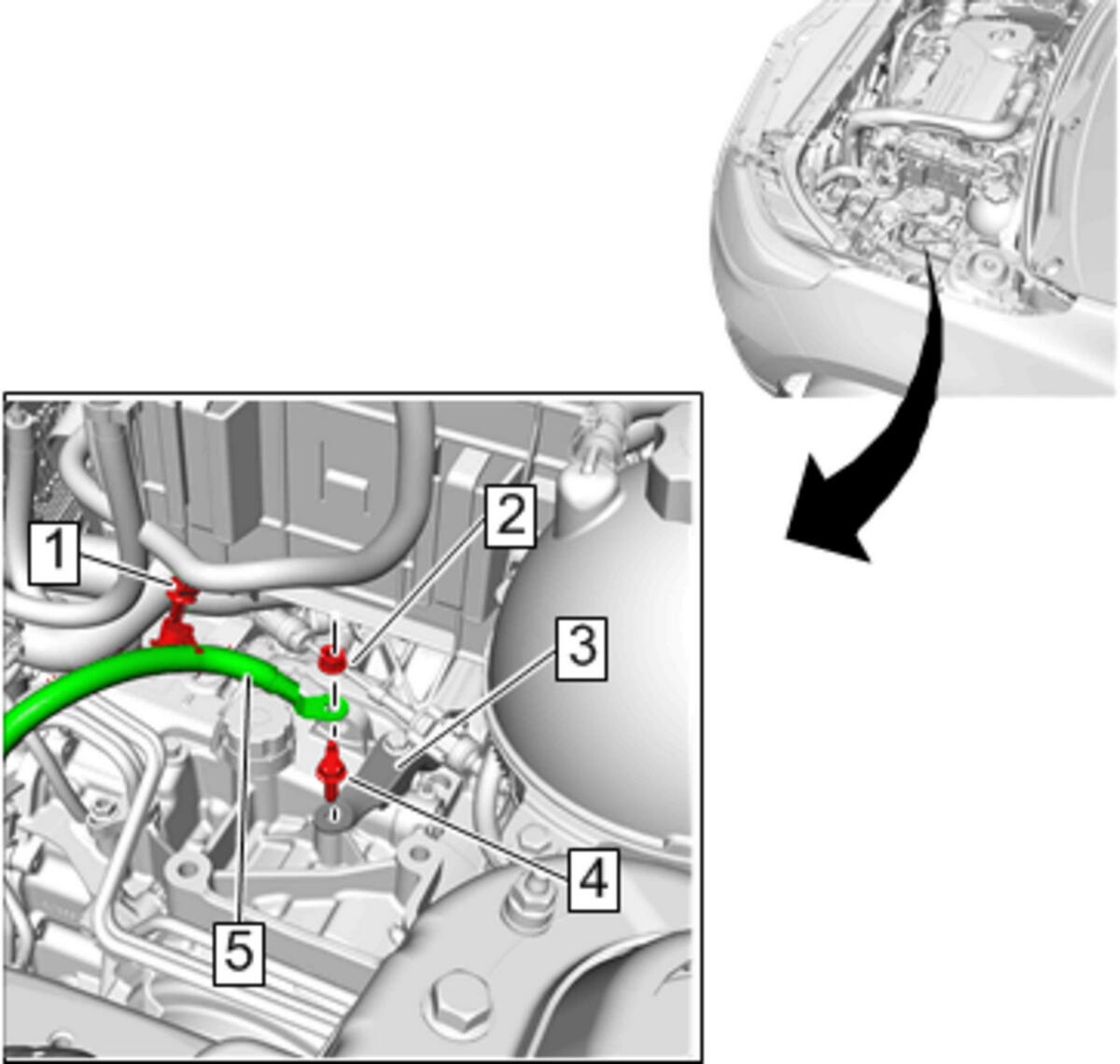

Battery Negative Cable Extension Cable (5) - Install

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Transmission mounts removed for clarity.
Battery Negative Cable Extension Cable Retainer (1) - Engage
Stud (4) - Install and tighten the NEW stud. 22 N.m (16 lb ft)
Battery Negative Cable Extension Cable Fastener (2) @ Shift Cable Bracket (3) - Install and tighten the NEW fastener. 22 N.m (16 lb ft)
Install the battery tray: Battery Tray Replacement .
