Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9) .

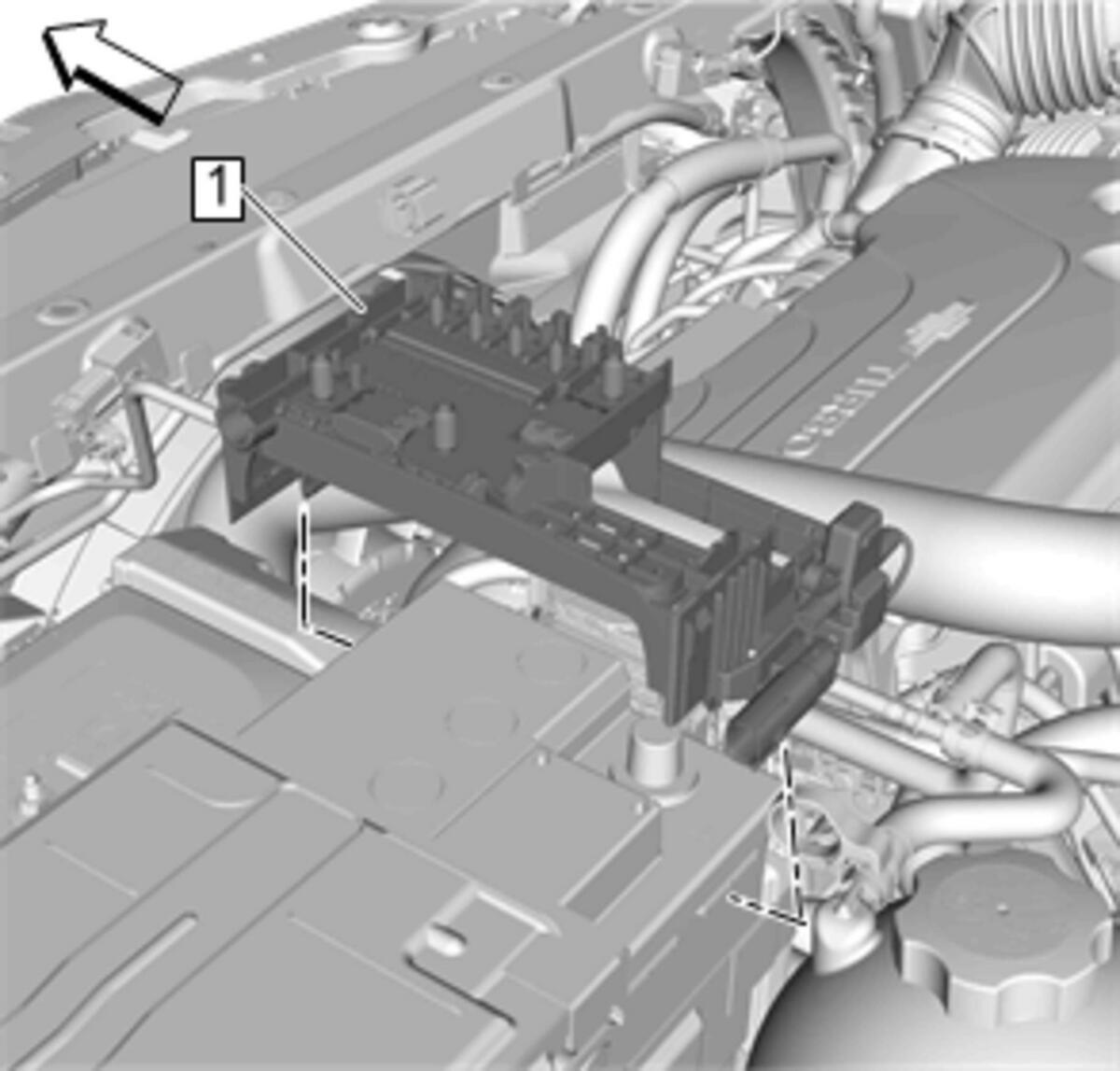

  2. Battery Distribution Engine Compartment Fuse Block (1) - Remove - Battery Distribution Engine Compartment Fuse Block Replacement .
    GM4578547Courtesy of GENERAL MOTORS COMPANY

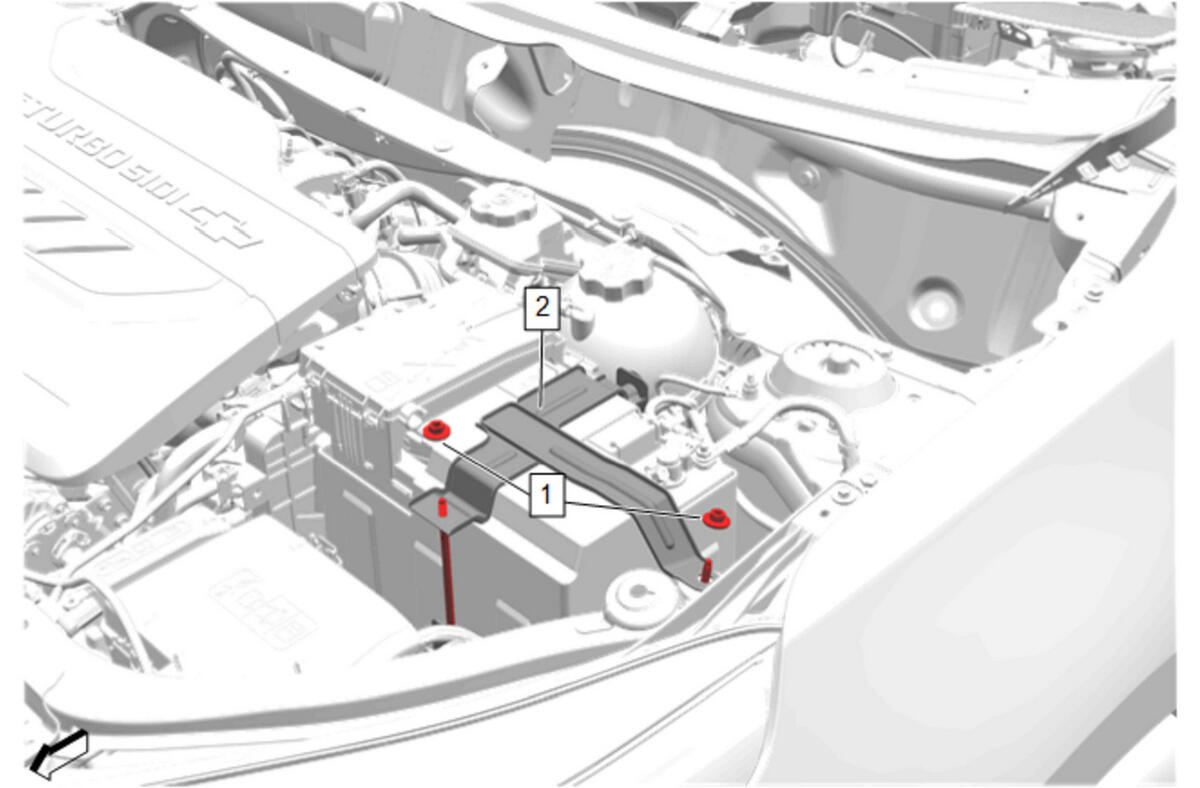

  3. Battery Hold Down Retainer Nut (1) - Remove [2x]
    GM4582675Courtesy of GENERAL MOTORS COMPANY
  4. Battery Hold Down Retainer (2) - Remove

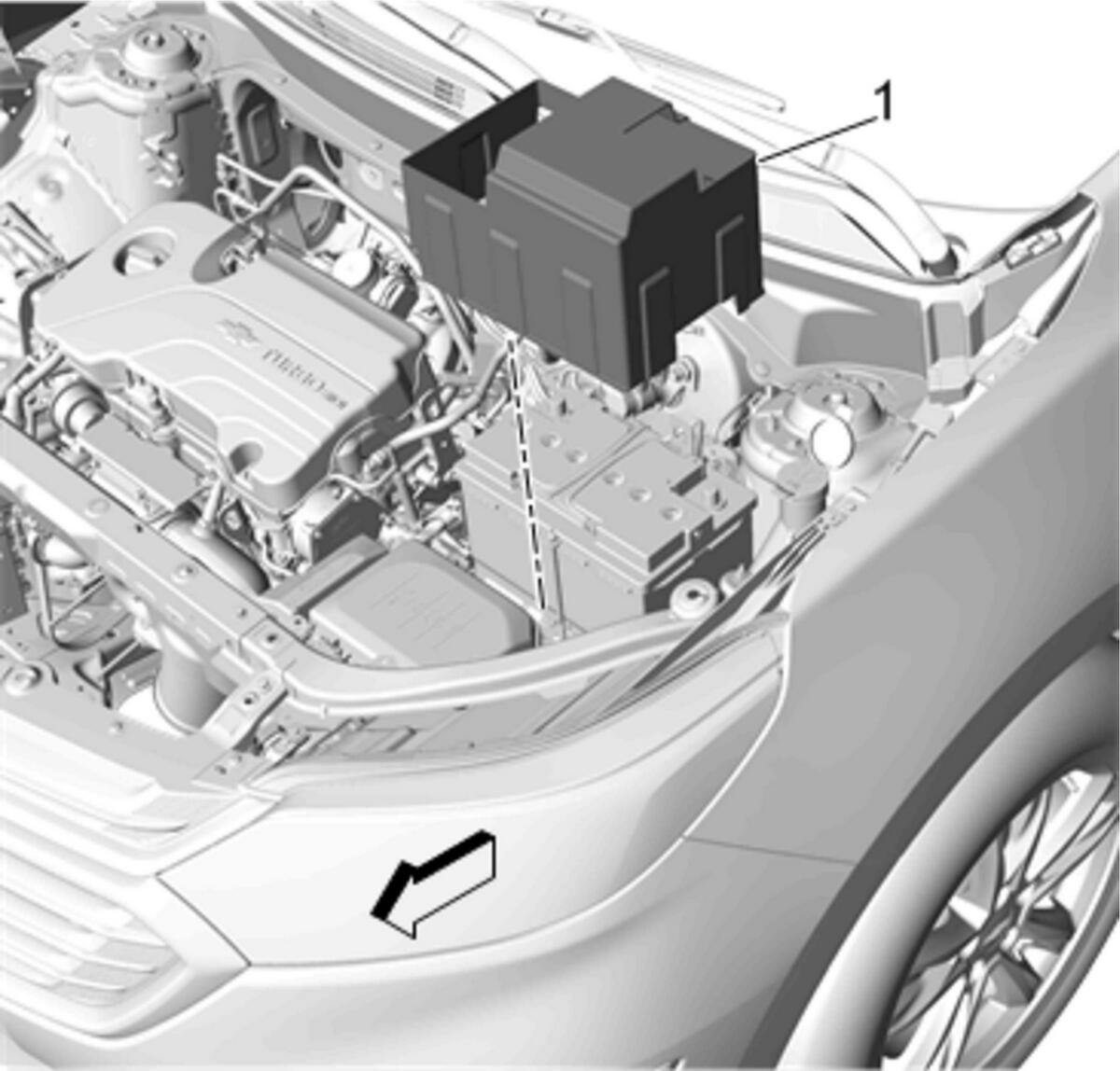

  5. Battery Cover (1) - Remove
    GM4819667Courtesy of GENERAL MOTORS COMPANY
  6. Battery (1) - Remove
    GM4582676Courtesy of GENERAL MOTORS COMPANY
