Installation Procedure

WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

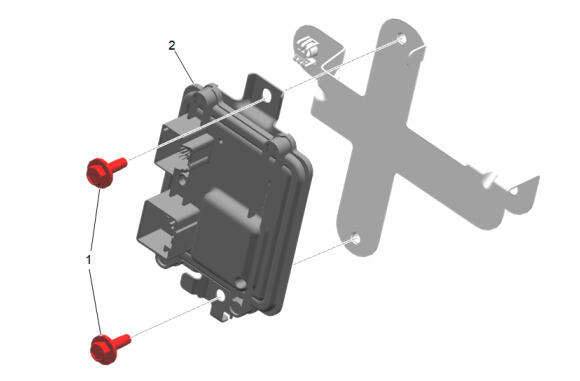

  1. GM5877726Courtesy of GENERAL MOTORS COMPANY

    Rear Differential Clutch Control Module (1) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Electronic Limited Slip Differential Control Module Bolt (1) - Install and tighten [2x] - Fastener Specifications

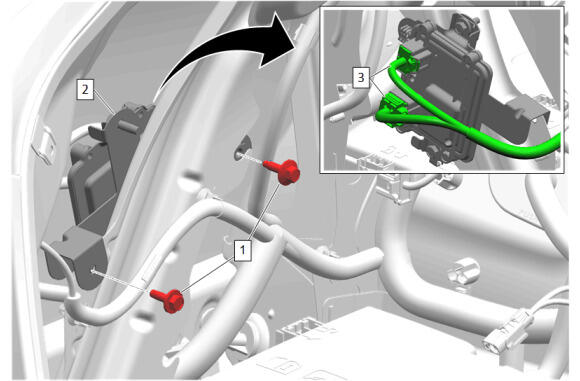

  3. GM5877723Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (3) - Connect [2x]

  4. Rear Differential Clutch Control Module (2) - Install
  5. Electronic Limited Slip Differential Control Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
  6. GM5483561Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Side Trim - Left Side (2) - Install

  7. Rear Compartment Side Trim Insulator Retainer (1) - Install [4x]
  8. GM5471885Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Panel Trim (2) - Install

  9. Rear Compartment Floor Stowage Compartment Retainer (1) - Install [3x]
  10. GM5465255Courtesy of GENERAL MOTORS COMPANY

    Rear End Trim Finish Panel (1) - Install

  11. GM5459293Courtesy of GENERAL MOTORS COMPANY

    Rear End Trim Finish Panel Opening Cover (1) - Install

  12. GM5471799Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Panel Trim (1) - Install

  13. GM5459270Courtesy of GENERAL MOTORS COMPANY

    Cargo Tie Down Loop (3) - Install [2x]

  14. Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] - Fastener Specifications
  15. Cargo Tie Down Loop Bolt Cap (1) - Install [2x]
