Installation Procedure
WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Side View Driver Information Camera (3) - Install
- Align and properly seat the upper and lower halves of the side view driver information camera bracket (2).
- Side View Driver Information Camera Bolt (1) - Install and tighten [2x] - Fastener Specifications Fastener Specifications

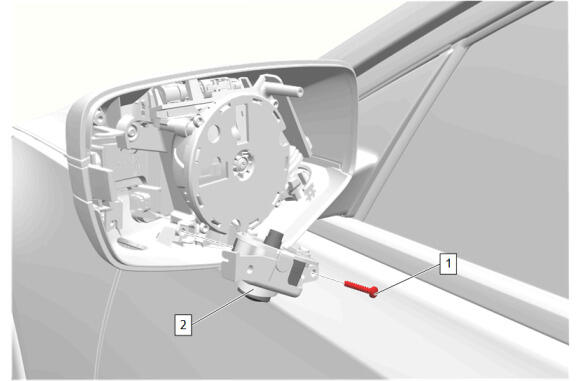

Install the side view driver information camera (2) with bracket.
- Outside Rearview Mirror Bolt (1) - Install and tighten - Fastener Specifications Fastener Specifications
- Connect the electrical connector.

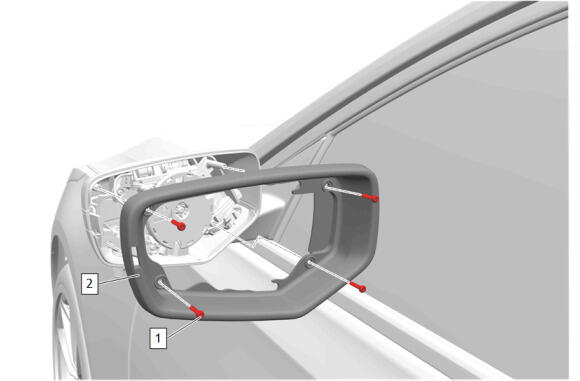

Outside Rearview Mirror Housing Bezel (2) - Install
- Outside Rearview Mirror Opening Applique Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect the electrical connectors.

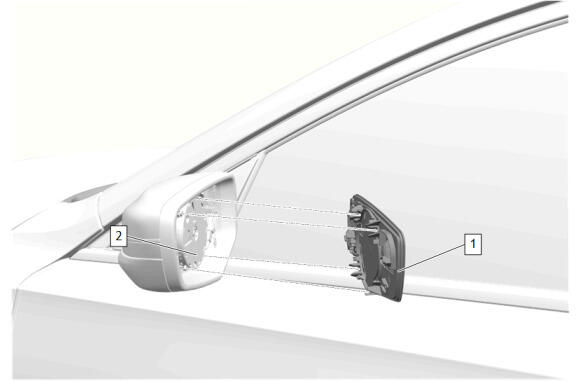

- Carefully align the outside rearview mirror glass (1) retainers with the outside rearview mirror actuator (2).
Place one hand on the back of the mirror housing and carefully apply pressure to outside rearview mirror glass (1) until outside rearview mirror glass retainers secure to the outside rearview mirror actuator (2).

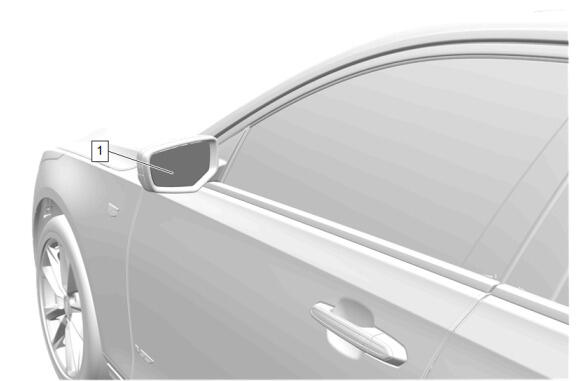

- Remove the masking tape from the outside rearview mirror glass (1).
- Inspect the outside rearview mirror for proper operation.
CAUTION:
Refer to Fastener Caution .
