Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

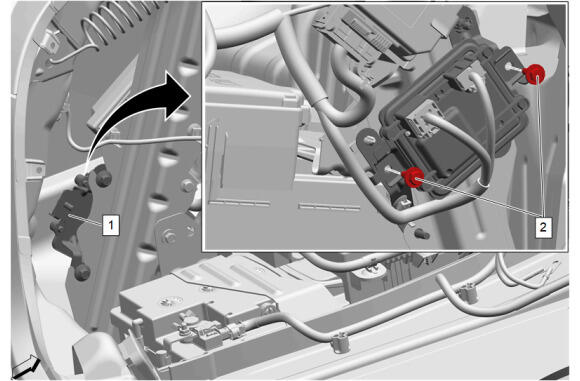

Rear Differential Clutch Control Module (1) - Install
- Rear Differential Clutch Control Module Bolt (2) - Install and tighten [2x] 7.5-10.5 N.m (66-93 lb in)

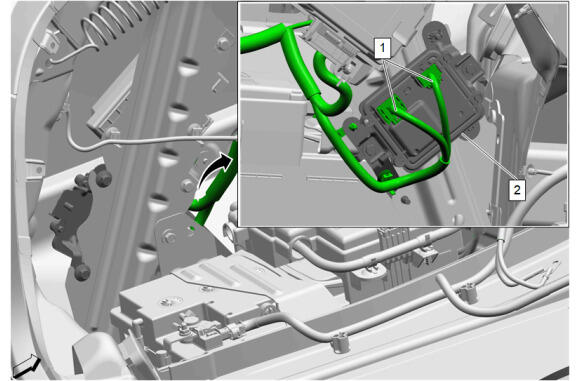

Electrical Connector (1) - Connect [2x]

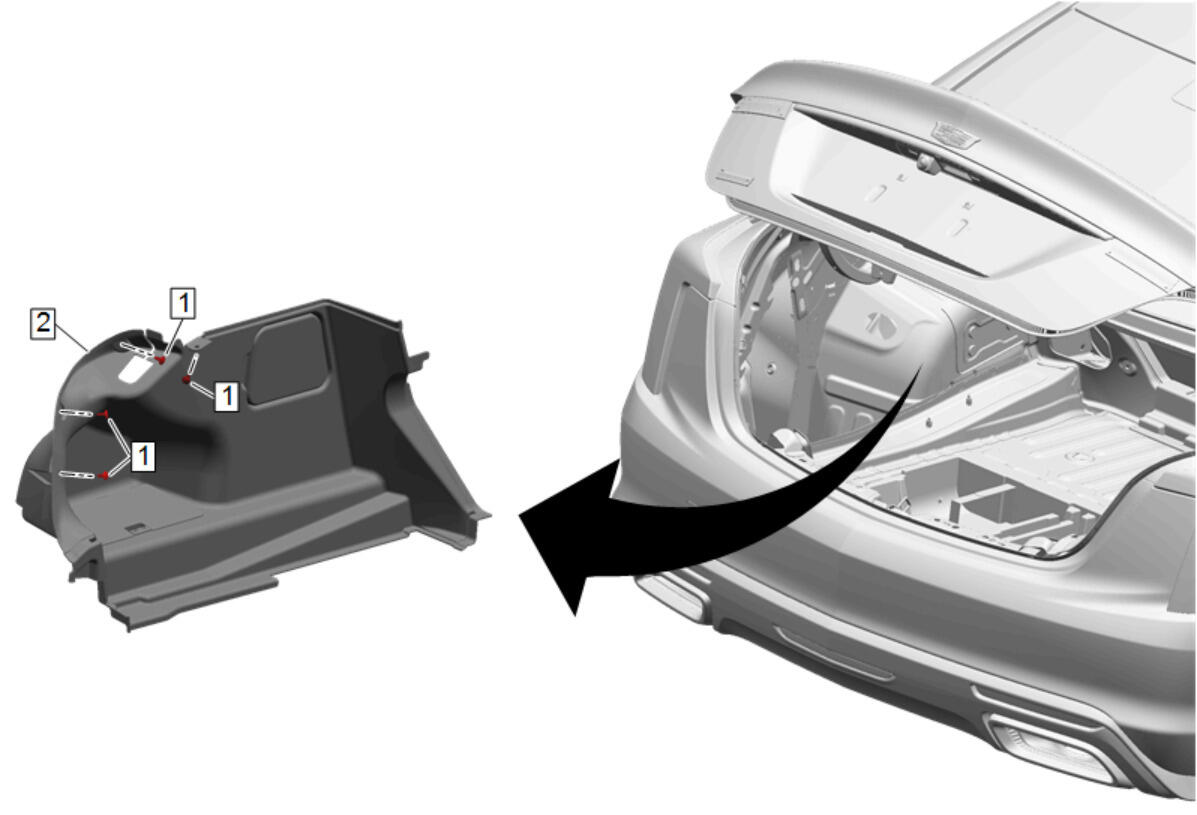

Rear Compartment Side Trim-Left Side (2) - Install
- Rear Compartment Side Trim Retainer (1) - Install NEW [4x]

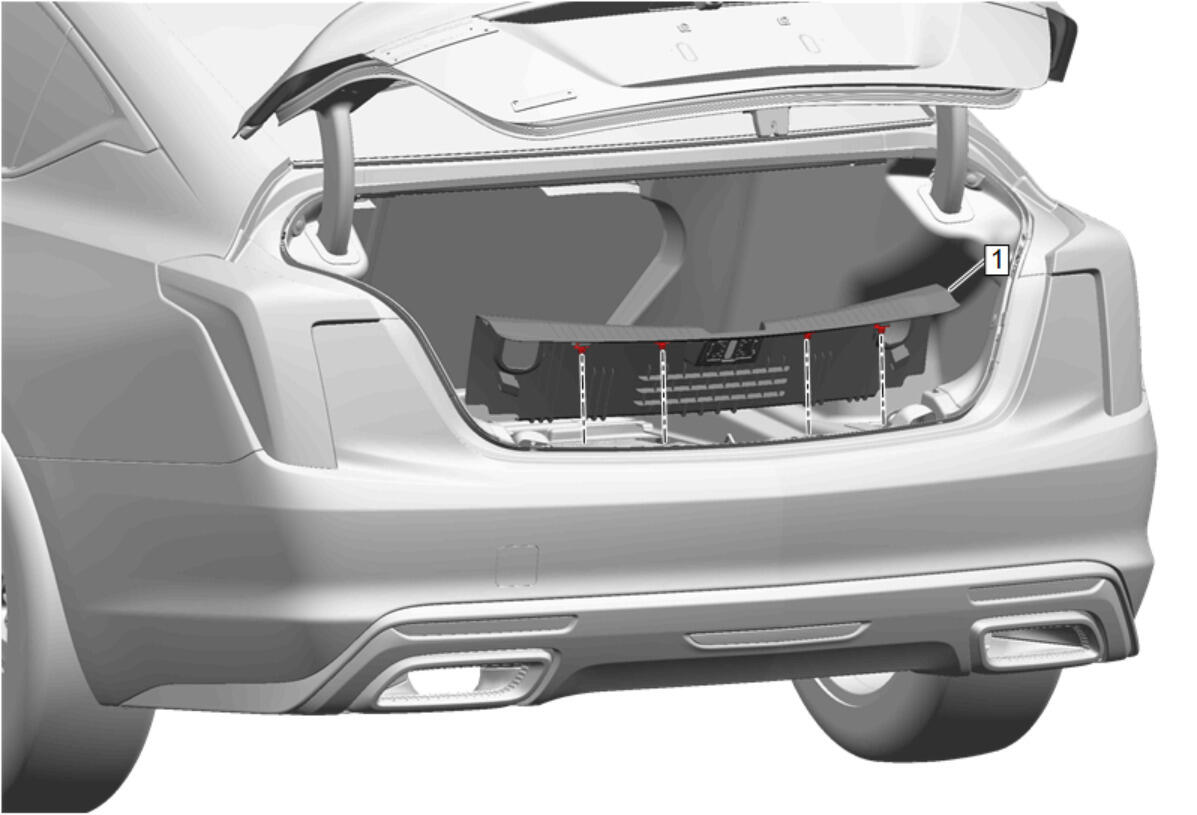

Rear End Trim Finish Panel (1) - Install
Rear Compartment Floor Panel Trim (1) - Install

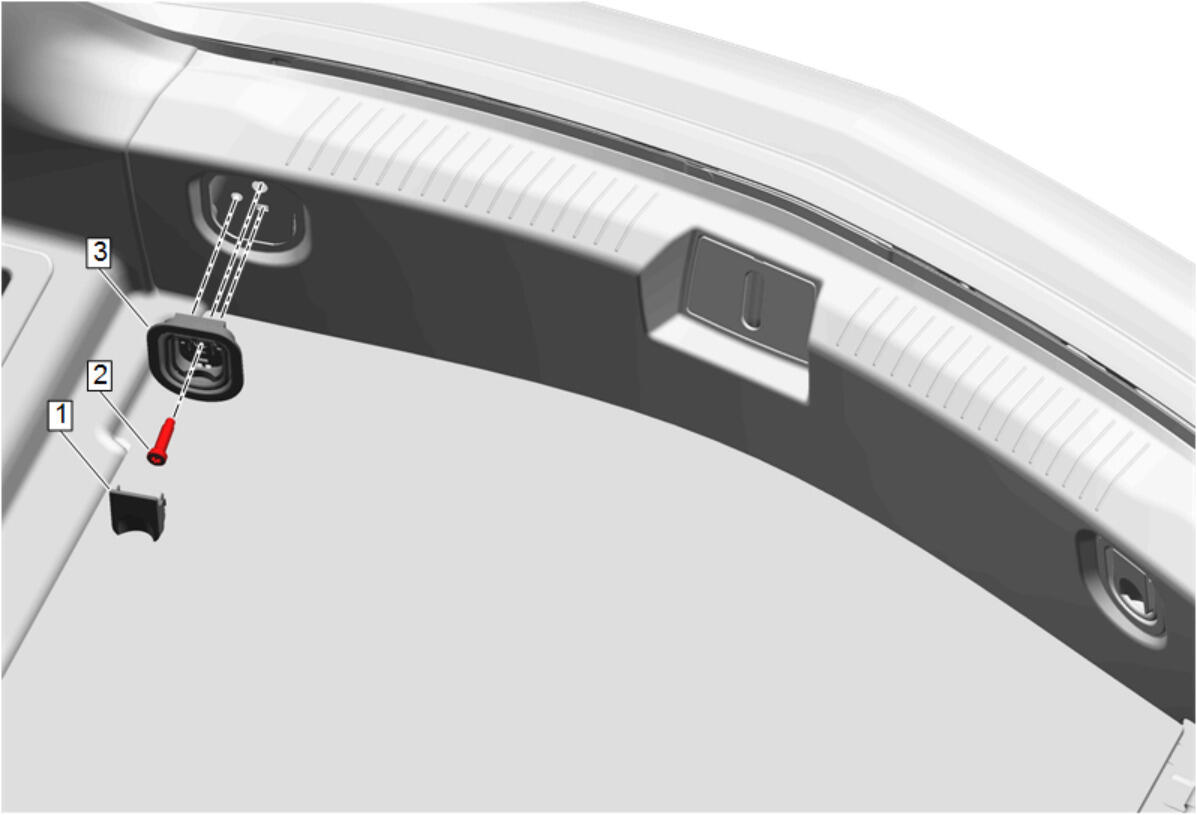

Cargo Tie Down Loop Anchor Plate (3) - Install [2x]
- Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] 16-24 N.m (12-18 lb ft)
- Cargo Tie Down Loop Bolt Cap (1) - Install [2x]
- Program the control module: K164 Differential Control Module: Programming and Setup
CAUTION:
Refer to Fastener Caution .
