Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Cargo Tie Down Loop Bolt Cap (1) - Remove [2x]
- Cargo Tie Down Loop Bolt (2) - Remove [2x]
- Cargo Tie Down Loop Anchor Plate (3) - Remove [2x]
Rear Compartment Floor Panel Trim (1) - Remove
Rear End Trim Finish Panel (1) - Remove

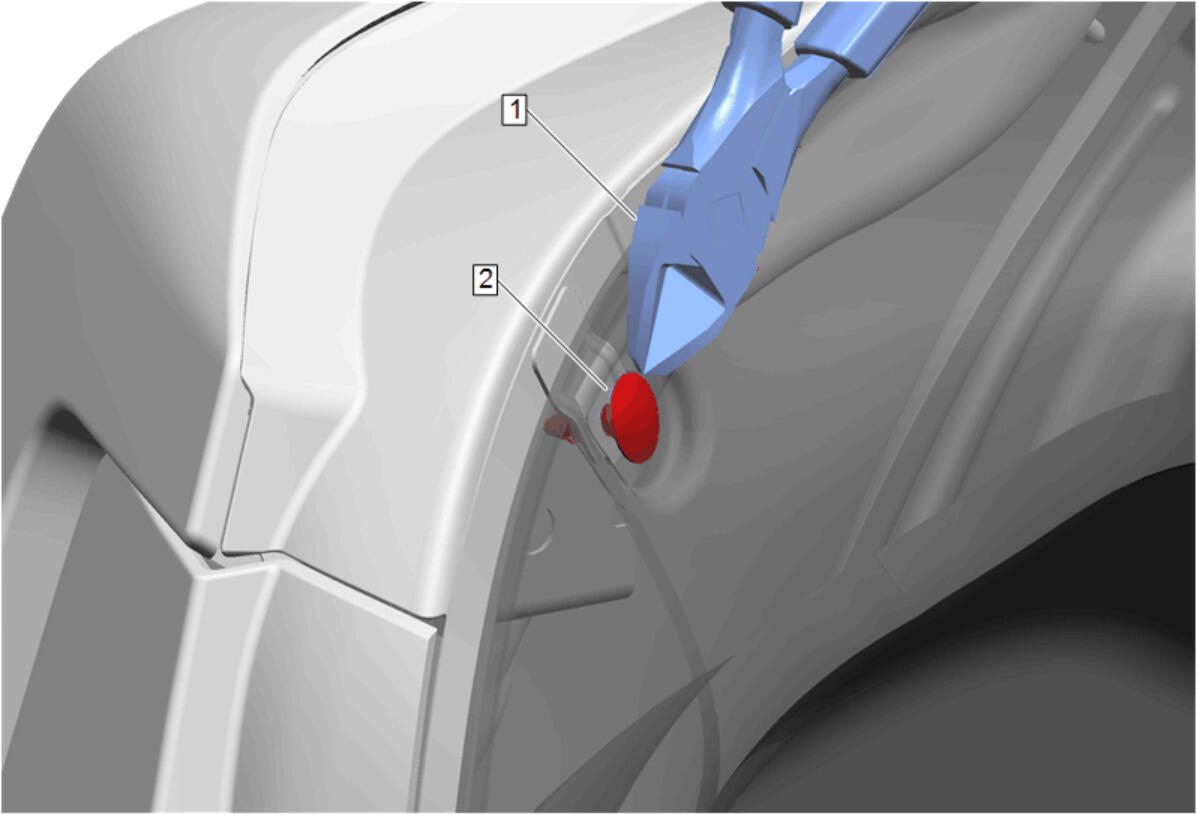

Cut off the head of the rear compartment side trim insulator retainers (2) with a diagonal cutter (1) prior to removing the rear compartment side trim.
Rear Compartment Side Trim Retainer (1) - Remove and DISCARD [4x]
- Rear Compartment Side Trim-Left Side (2) - Remove
Electrical Connector (1) - Disconnect [2x]
Rear Differential Clutch Control Module Bolt (2) - Remove [2x]
- Rear Differential Clutch Control Module (1) - Remove
