Rear Axle Identification

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

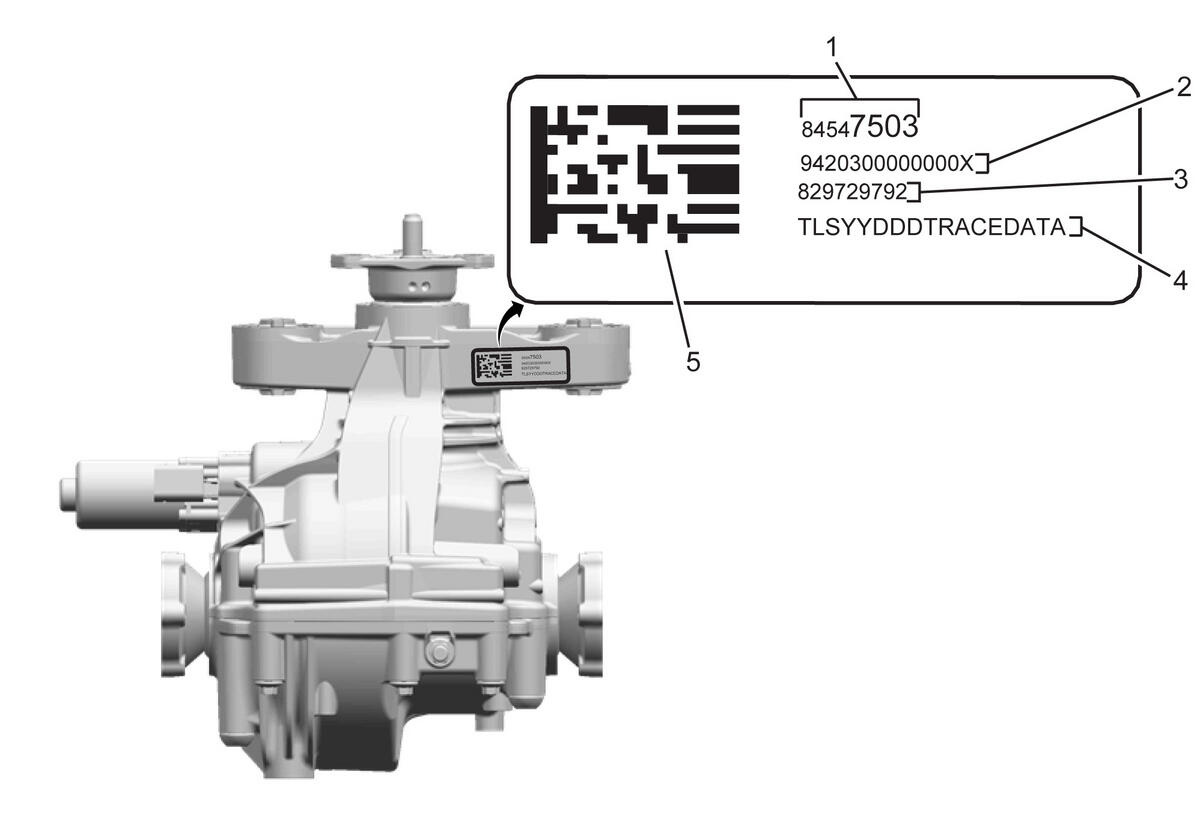

Fig 1: Identifying Rear Axle Identification Label

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	8-Digit Part Number
2	Vehicle Partitioning Product Structure (VPPS) Code
3	DUNS Number
4	Trace Code
5	2D Bar Code
