Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

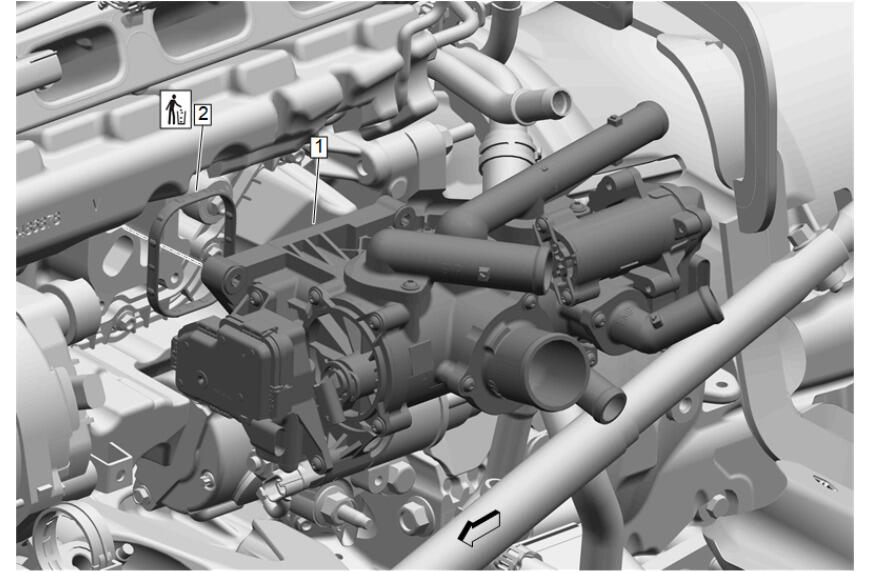

Water Outlet Seal (2) - Install NEW
Engine Coolant Flow Control Valve (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

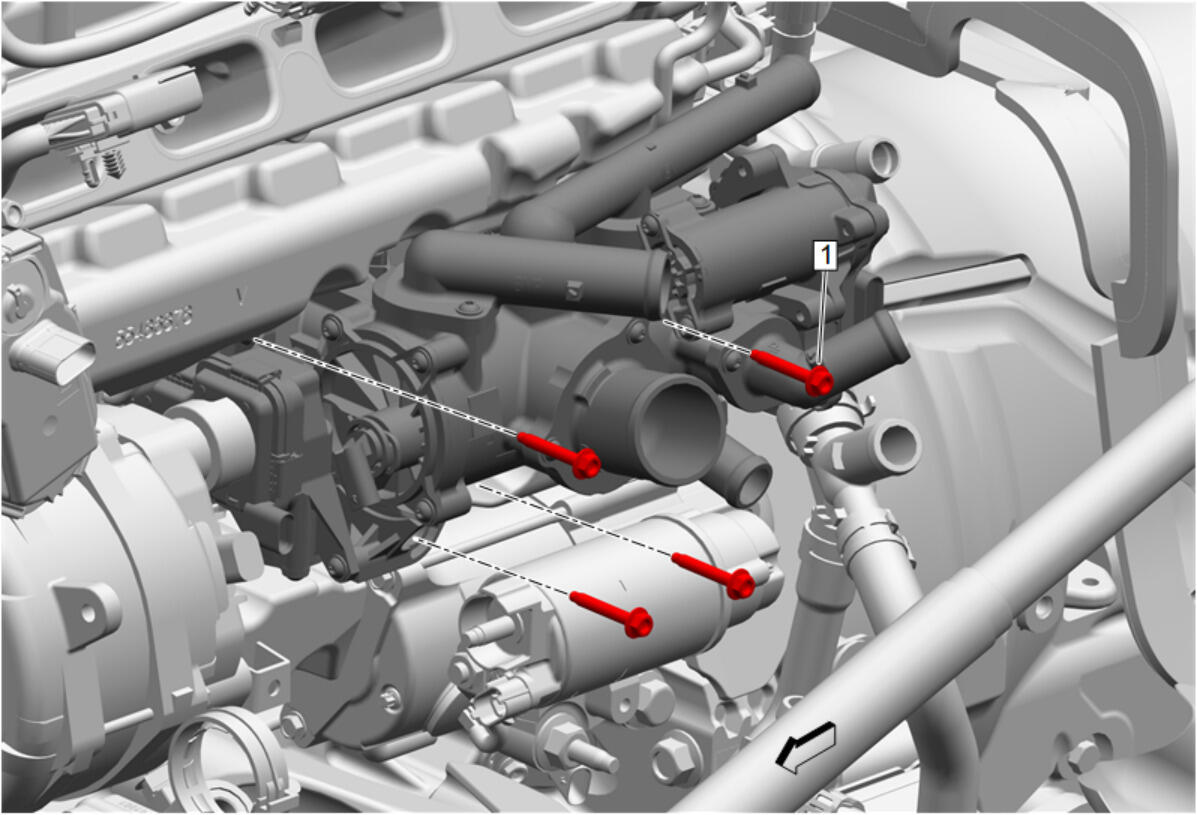

Engine Coolant Flow Control Valve Bolt (1) - Install and tighten [4x] 8.5 N.m (75 lb in)
Courtesy of GENERAL MOTORS COMPANY

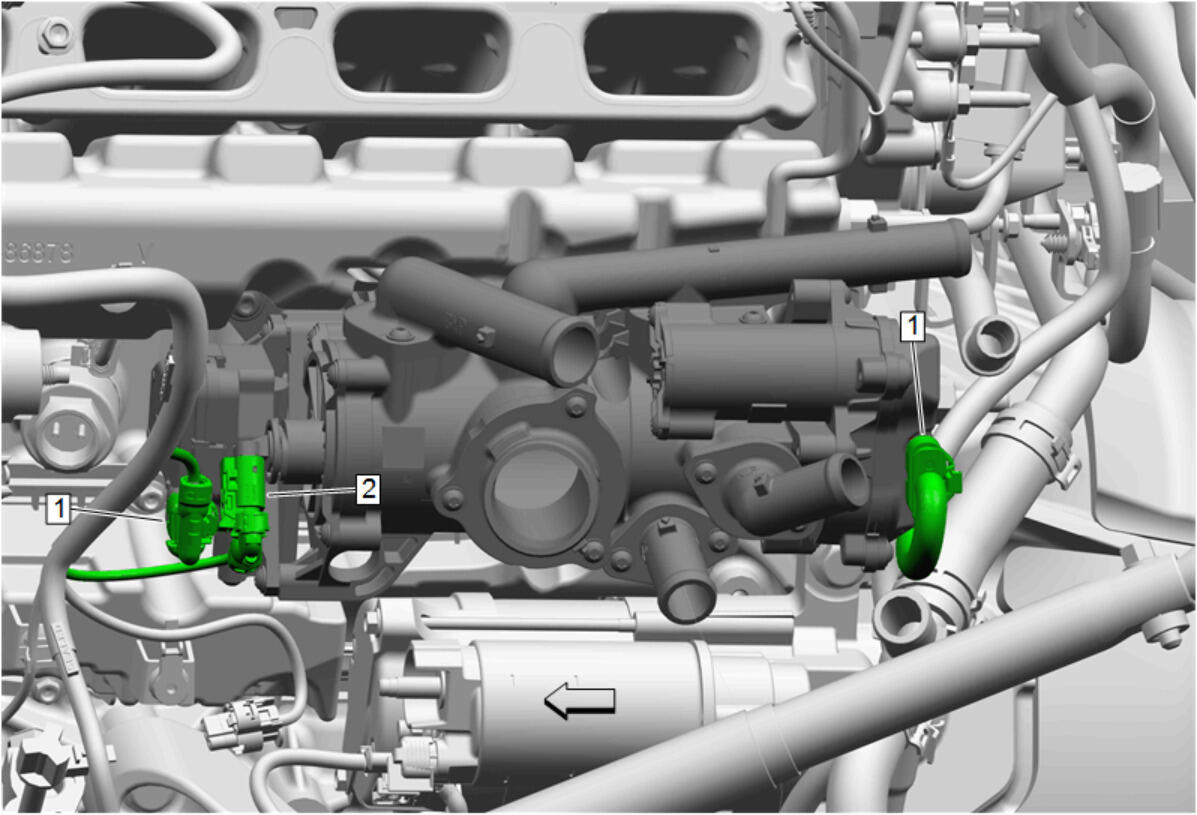

Electrical Connector (2) @Engine Coolant Temperature Sensor - Connect
Electrical Connector (1) @Engine Coolant Flow Control Valve - Connect [2x]
Courtesy of GENERAL MOTORS COMPANY

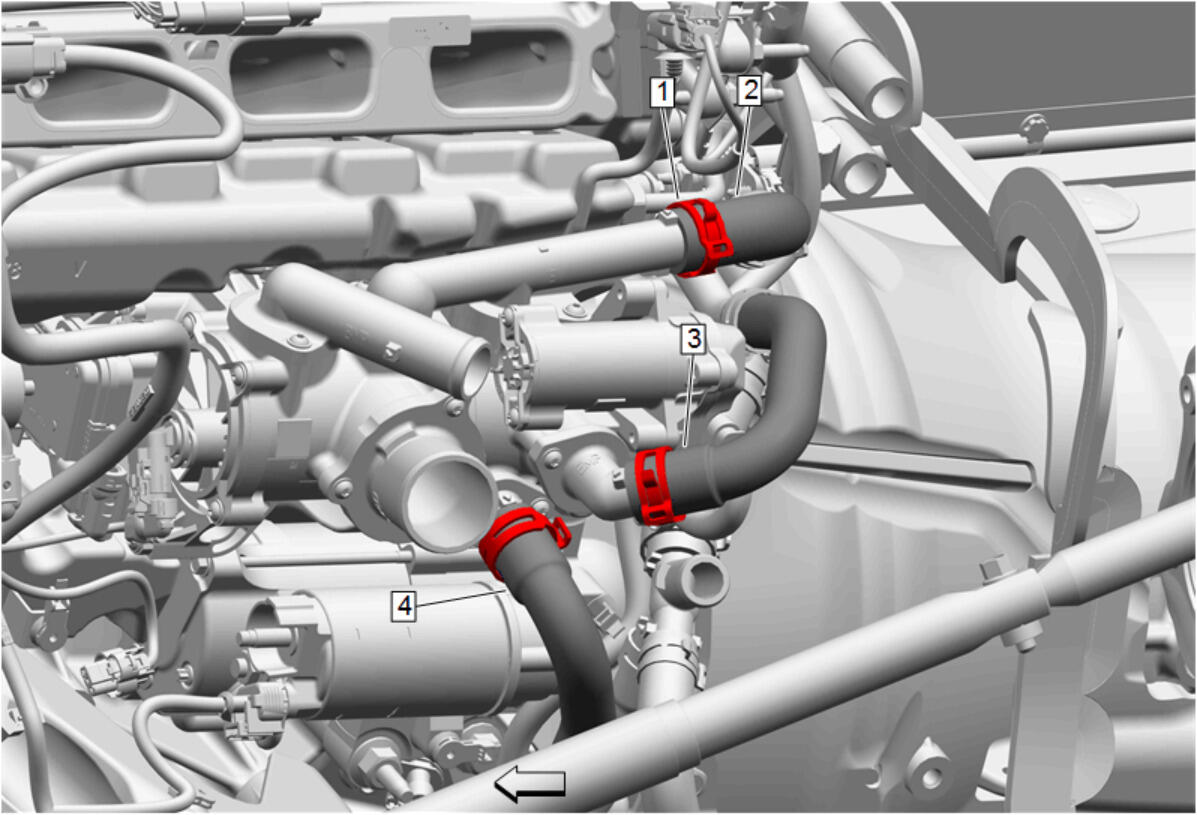

Engine Oil Cooler Coolant Inlet Hose (4) @Engine Coolant Flow Control Valve - Install
Engine Coolant Air Bleed Hose (3) @Engine Coolant Flow Control Valve - Install
Engine Coolant Air Bleed Hose (2) @Engine Coolant Flow Control Valve - Install
Hose Clamp (1) - Engage [3x] - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

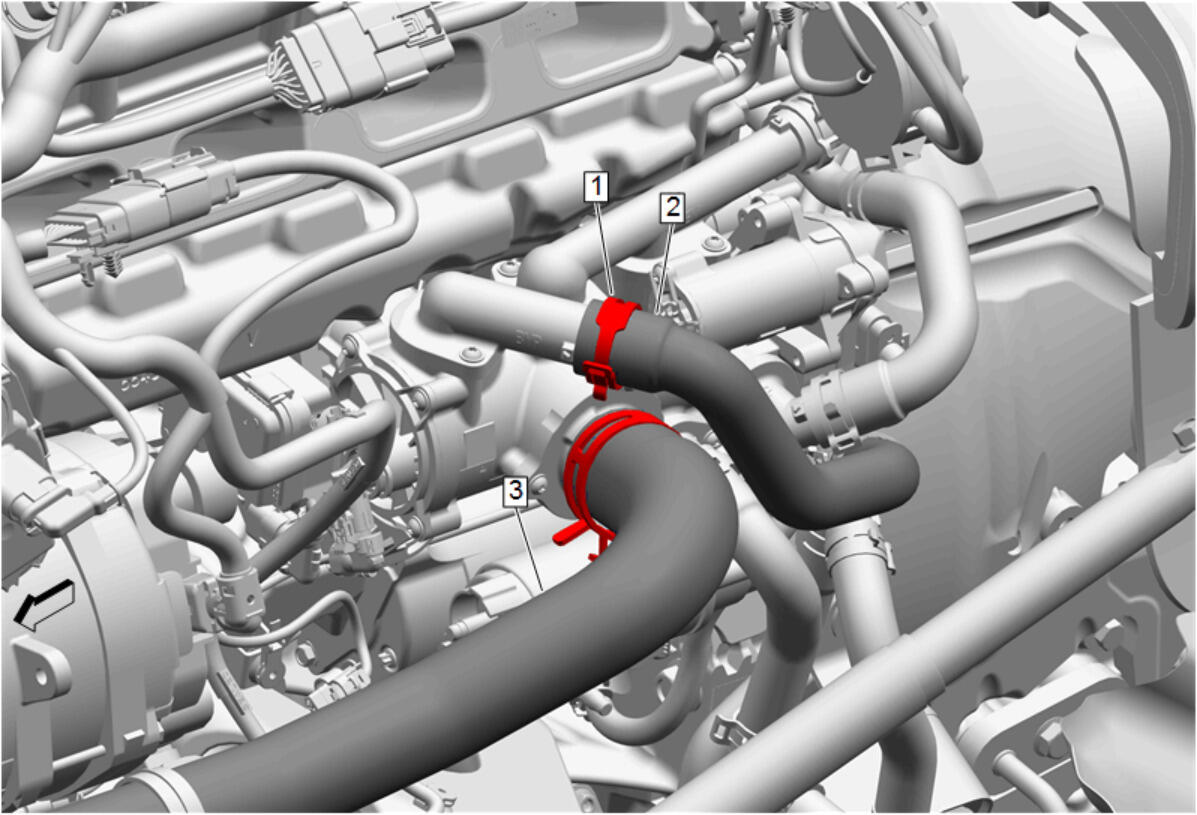

Radiator Inlet Hose (3) @Engine Coolant Flow Control Valve - Install
Thermostat Bypass Hose (2) @Engine Coolant Flow Control Valve - Install
Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

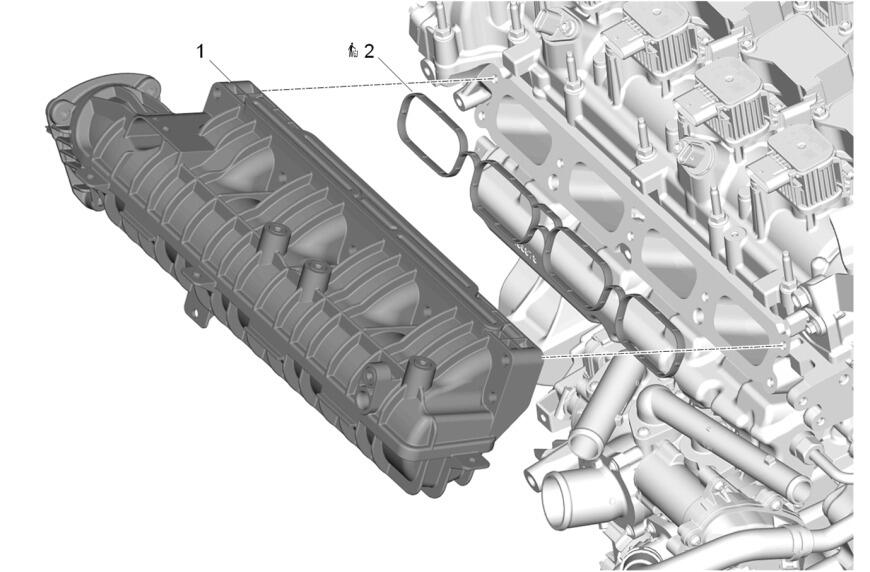

Intake Manifold (1) - Install - Intake Manifold Replacement
Fill the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LGY Static Fill) , or Cooling System Draining and Filling (LGY GE 47716) , or Cooling System Draining and Filling (LT4 Static Fill) , or Cooling System Draining and Filling (LT4 GE 47716)
Start the engine and check for leaks.
