Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

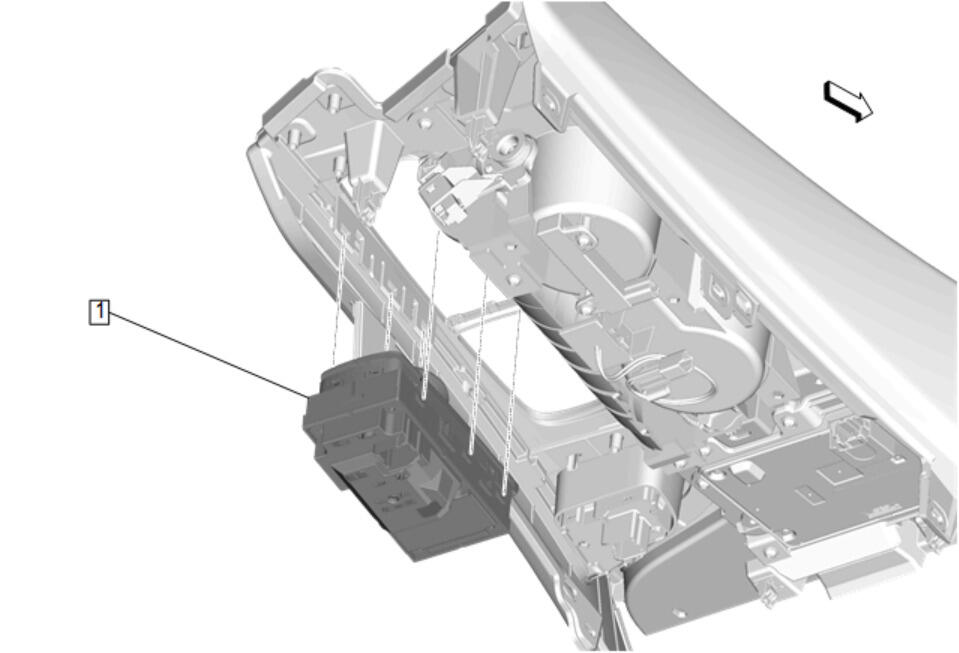

Infotainment Control Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (2) - Install - Front Floor Console Trim Plate Replacement , or Front Floor Console Trim Plate Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest (2) - Install - Front Floor Console Armrest Replacement , or Front Floor Console Armrest Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (2) - Install - Front Floor Console Rear Trim Panel Replacement , or Front Floor Console Rear Trim Panel Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side , or Front Floor Console Extension Panel Replacement - Left Side (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side , or Front Floor Console Extension Panel Replacement - Right Side (Blackwing)
