Multimedia Receptacle Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

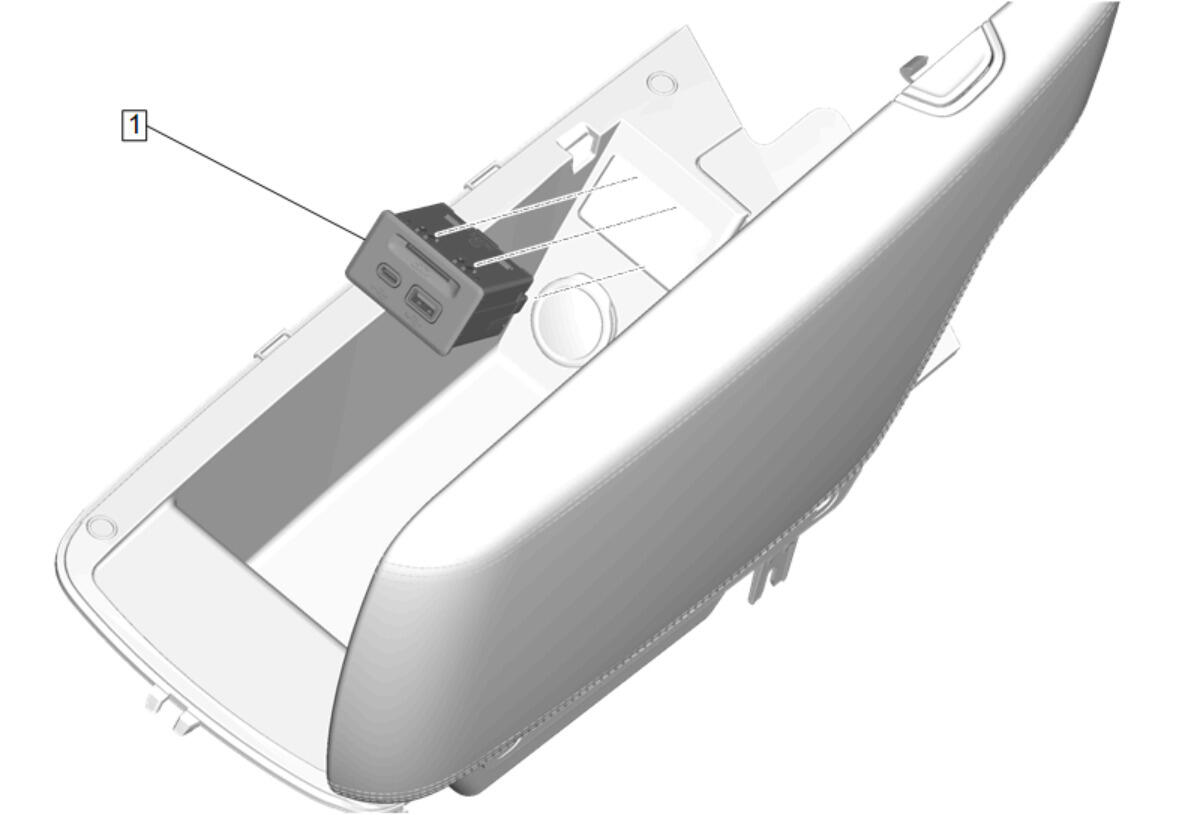

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement - Right Side , or Front Floor Console Extension Panel Replacement - Right Side (Blackwing) Front Floor Console Extension Panel Replacement - Left Side , or Front Floor Console Extension Panel Replacement - Left Side (Blackwing) Front Floor Console Rear Trim Panel Replacement , or Front Floor Console Rear Trim Panel Replacement (Blackwing) Front Floor Console Armrest Replacement , or Front Floor Console Armrest Replacement (Blackwing)
1	Multimedia Receptacle Procedure Disengage the retaining tabs that secures the receptacle to the panel.

Callout

Component Name

Preliminary Procedures

Front Floor Console Extension Panel Replacement - Right Side , or Front Floor Console Extension Panel Replacement - Right Side (Blackwing)
Front Floor Console Extension Panel Replacement - Left Side , or Front Floor Console Extension Panel Replacement - Left Side (Blackwing)
Front Floor Console Rear Trim Panel Replacement , or Front Floor Console Rear Trim Panel Replacement (Blackwing)
Front Floor Console Armrest Replacement , or Front Floor Console Armrest Replacement (Blackwing)

Multimedia Receptacle
Procedure
Disengage the retaining tabs that secures the receptacle to the panel.
