Radio Control Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

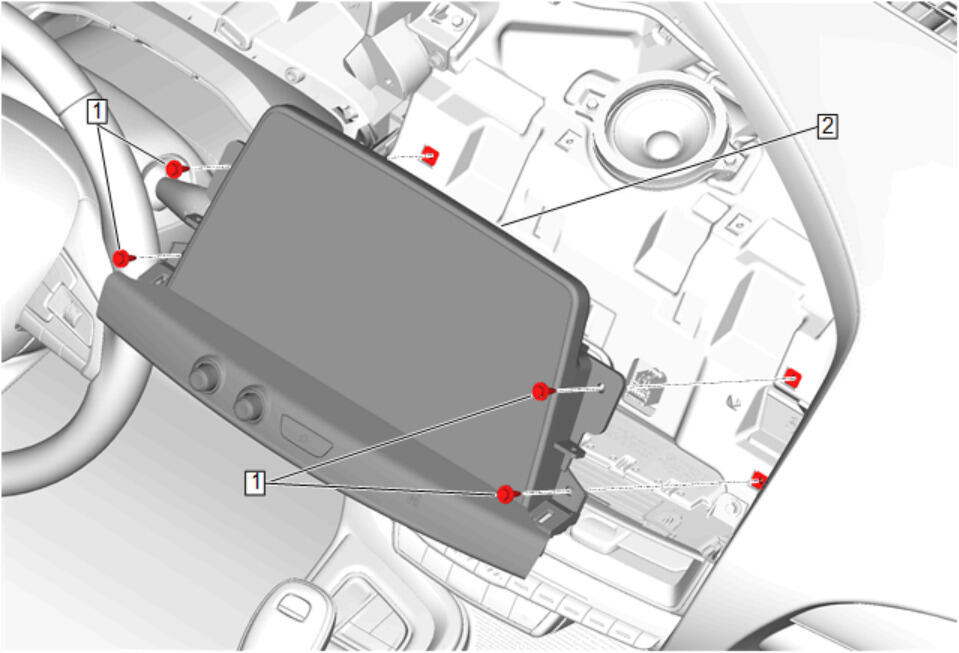

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Instrument Panel Cluster Trim Plate Applique Replacement Instrument Panel Instrument Cluster Hood Replacement Instrument Panel Center Trim Pad Replacement
1	Radio Control Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Control Procedure Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedures

Instrument Panel Cluster Trim Plate Applique Replacement
Instrument Panel Instrument Cluster Hood Replacement
Instrument Panel Center Trim Pad Replacement

Radio Control Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Control
Procedure
Disconnect the electrical connectors.
