Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

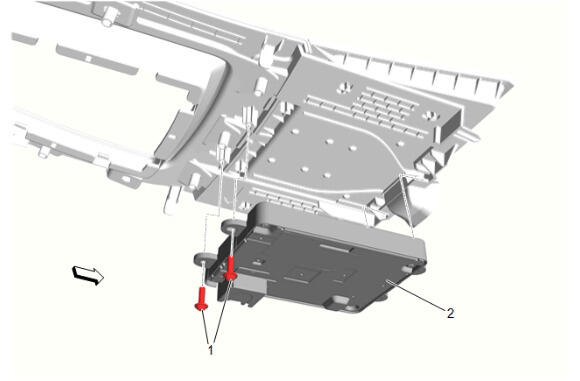

Wireless Charging System Module (2) - Install
- Wireless Charging System Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector.

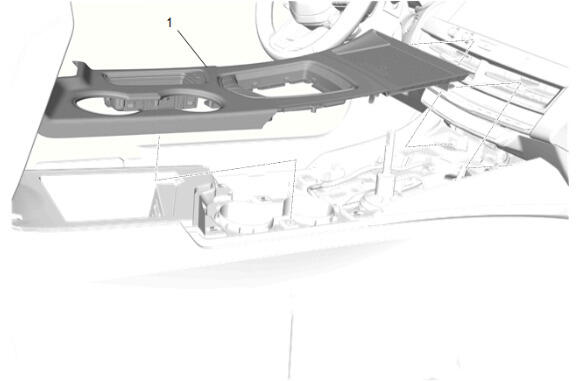

Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement (Blackwing)
CAUTION:
Refer to Fastener Caution .
