Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Clean the inside of the windshield before installing the front view driver information camera bracket (1).
- Front View Driver Information Camera Bracket (1) - Install

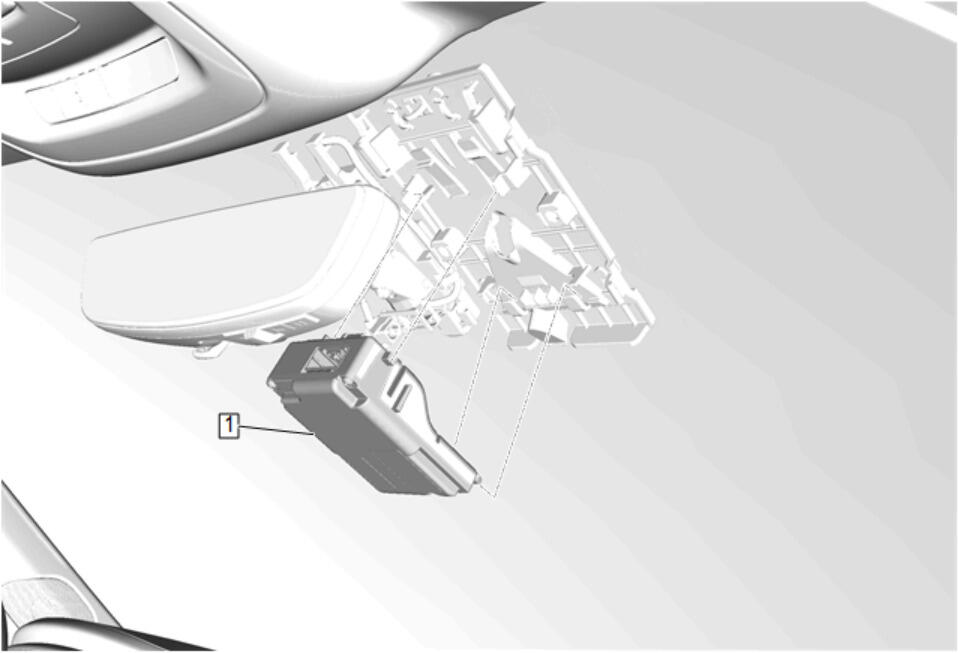

Front View Camera (1) - Install
- Connect the electrical connector.
Windshield Multifunction Sensor Mount Bracket Cover (1) - Install - Windshield Multifunction Sensor Mount Bracket Cover Replacement
- Perform the necessary programming and setup procedure: Control Module References
