Image Processing Module Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

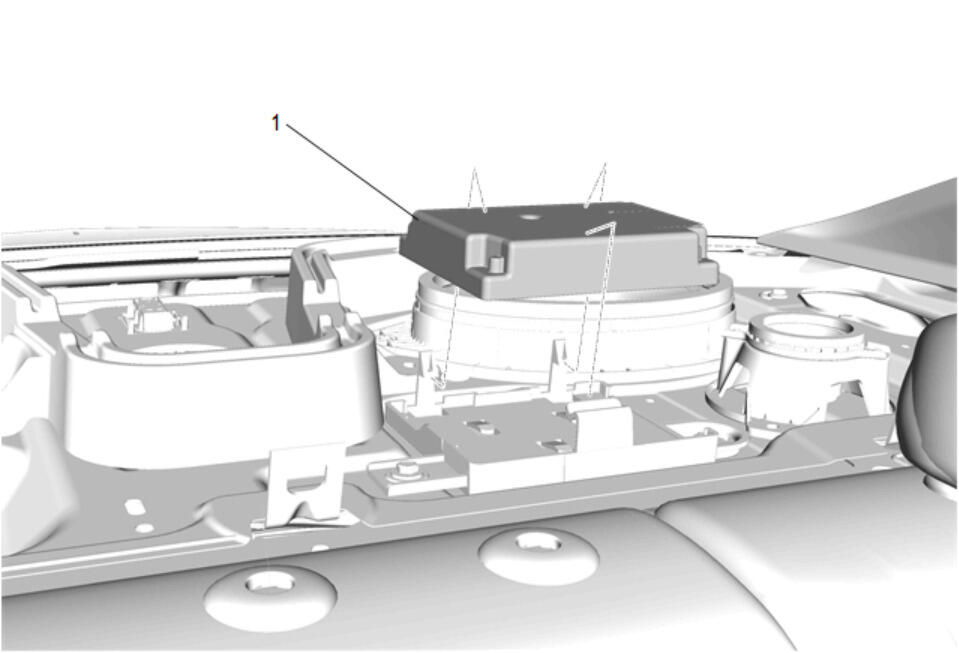

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Window Panel Trim Replacement
1	Image Processing Module Procedure Release the retaining tabs. Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Rear Window Panel Trim Replacement

Image Processing Module

Procedure

Release the retaining tabs.
Disconnect the electrical connectors.
Perform the necessary programming and setup procedure:Control Module References
