Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Compartment Side Trim- Left Side - Reposition - Rear Compartment Side Trim Replacement - Left Side

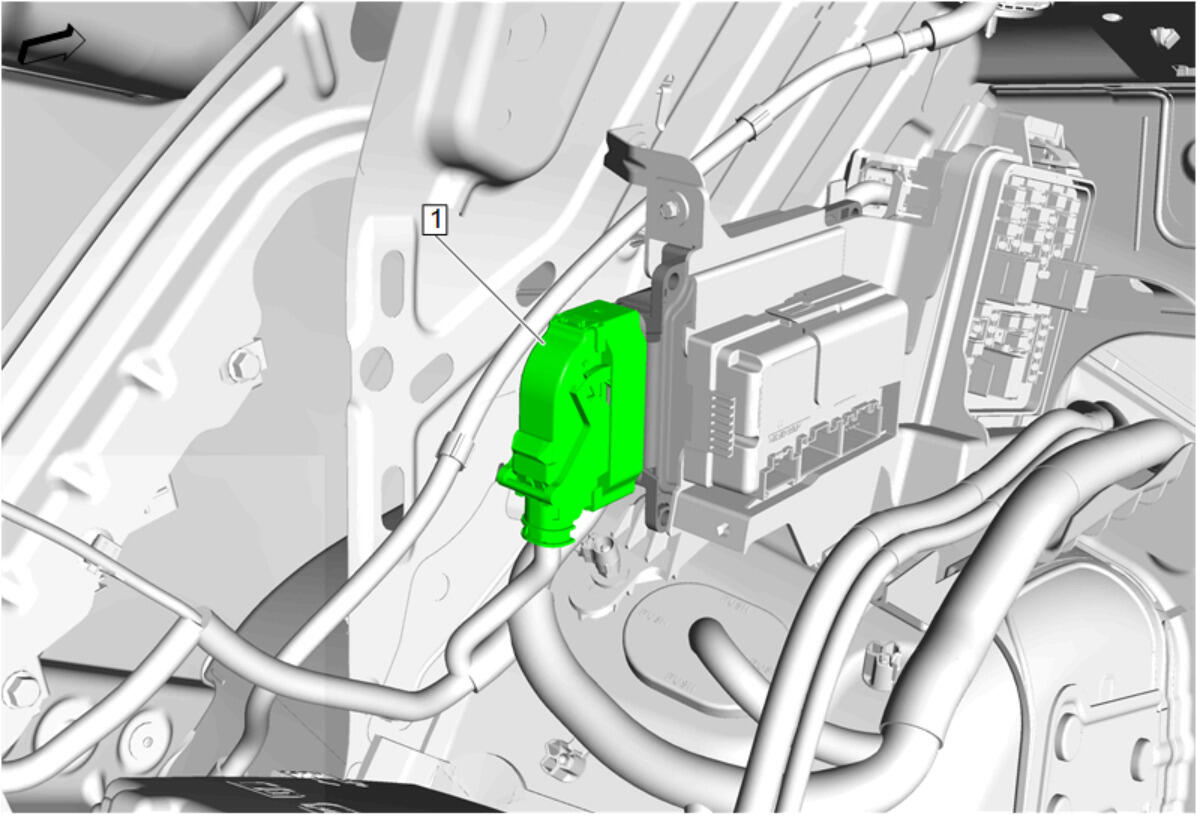

- Electrical Connector (1) @Electronic Suspension Control Module - Disconnect

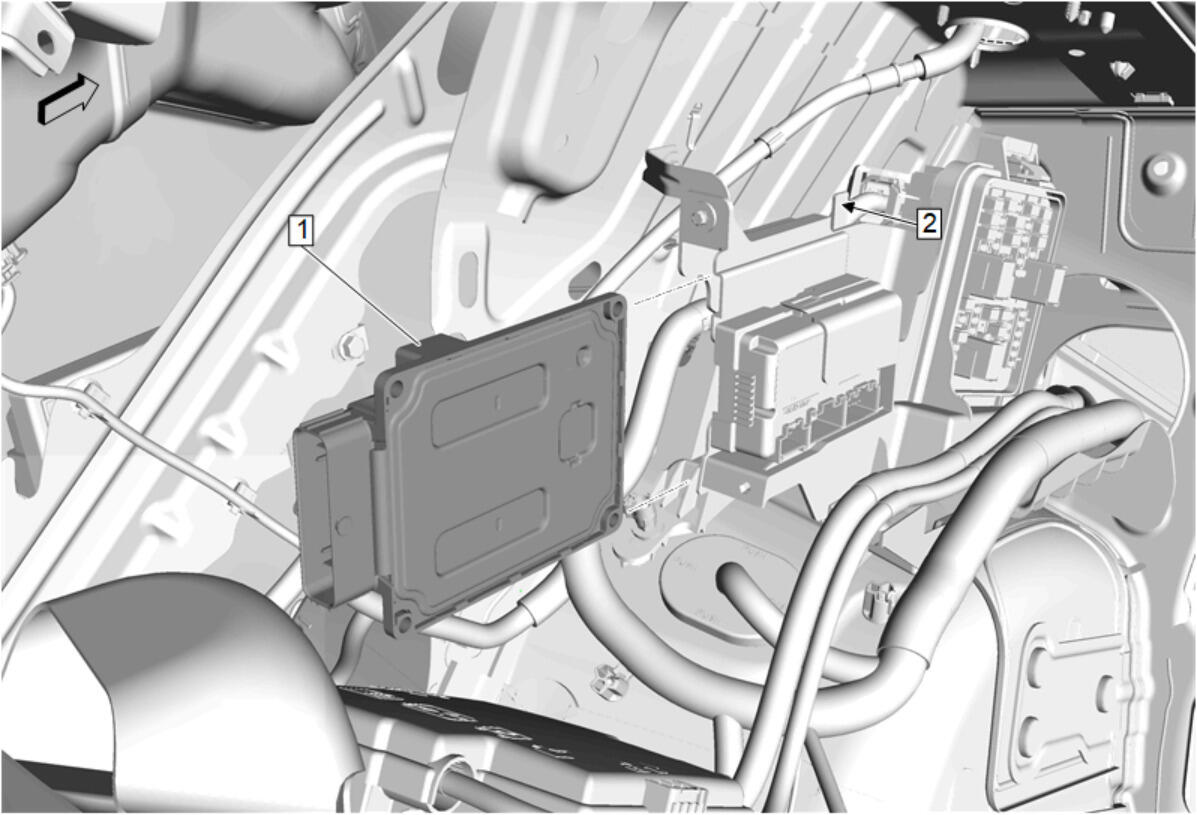

- Release the retaining tab (2) and slide the electronic suspension control module (1) out of the rear body fuse block bracket.
