Low Frequency Console Antenna Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement - Right Side , or Front Floor Console Extension Panel Replacement - Right Side (Blackwing) Front Floor Console Extension Panel Replacement - Left Side , or Front Floor Console Extension Panel Replacement - Left Side (Blackwing) Front Floor Console Rear Trim Panel Replacement , or Front Floor Console Rear Trim Panel Replacement (Blackwing)

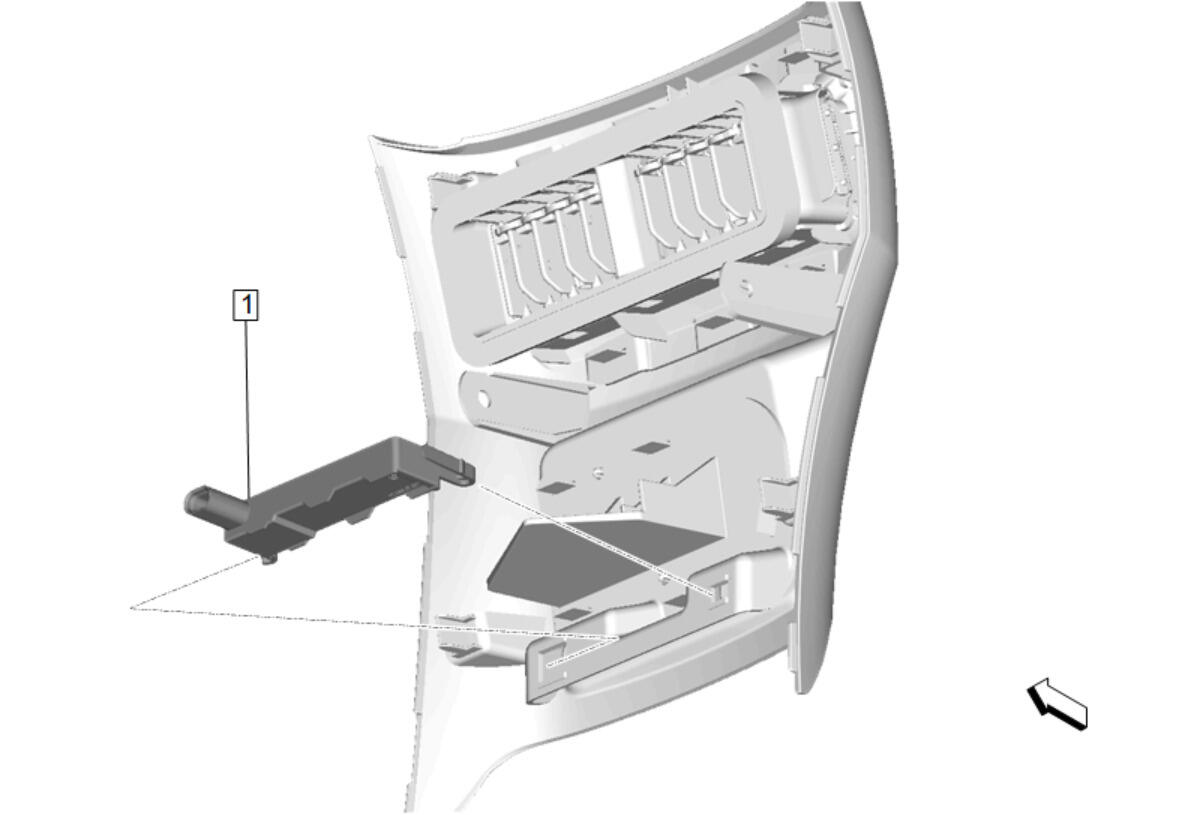

1	Low Frequency Console Antenna Procedure Disengage the retaining tab that secures the antenna to the panel.

Callout

Component Name

Preliminary Procedures

Front Floor Console Extension Panel Replacement - Right Side , or Front Floor Console Extension Panel Replacement - Right Side (Blackwing)
Front Floor Console Extension Panel Replacement - Left Side , or Front Floor Console Extension Panel Replacement - Left Side (Blackwing)
Front Floor Console Rear Trim Panel Replacement , or Front Floor Console Rear Trim Panel Replacement (Blackwing)

Low Frequency Console Antenna
Procedure
Disengage the retaining tab that secures the antenna to the panel.
