Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

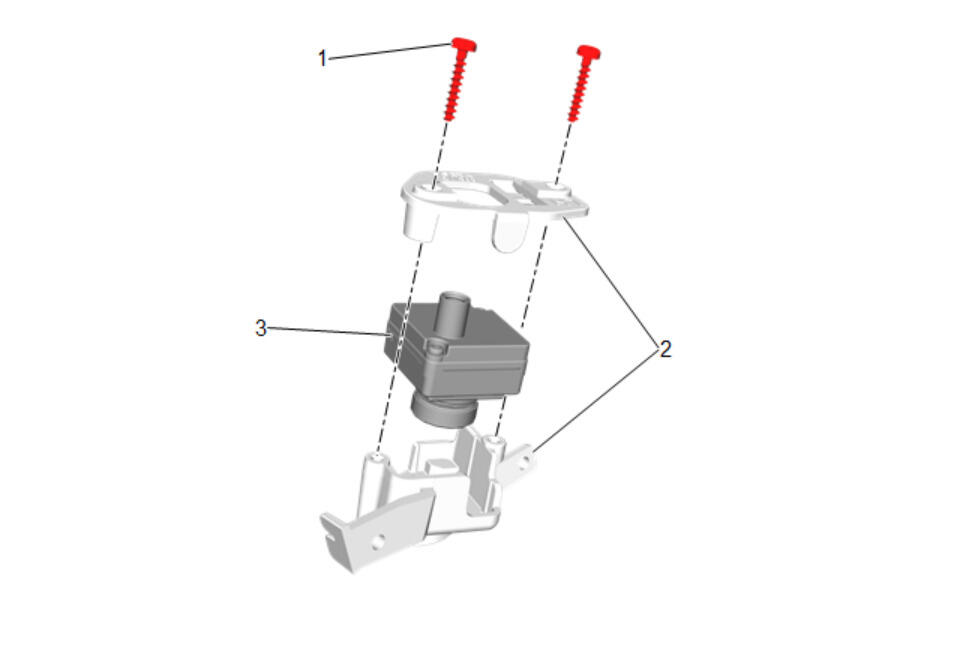

Side View Driver Information Camera (3) - Install
- Align and properly seat the upper and lower halves of the side view driver information camera bracket (2).
- Side View Driver Information Camera Bolt (1) - Install and tighten [2x] 0.9 N.m (8 lb in)

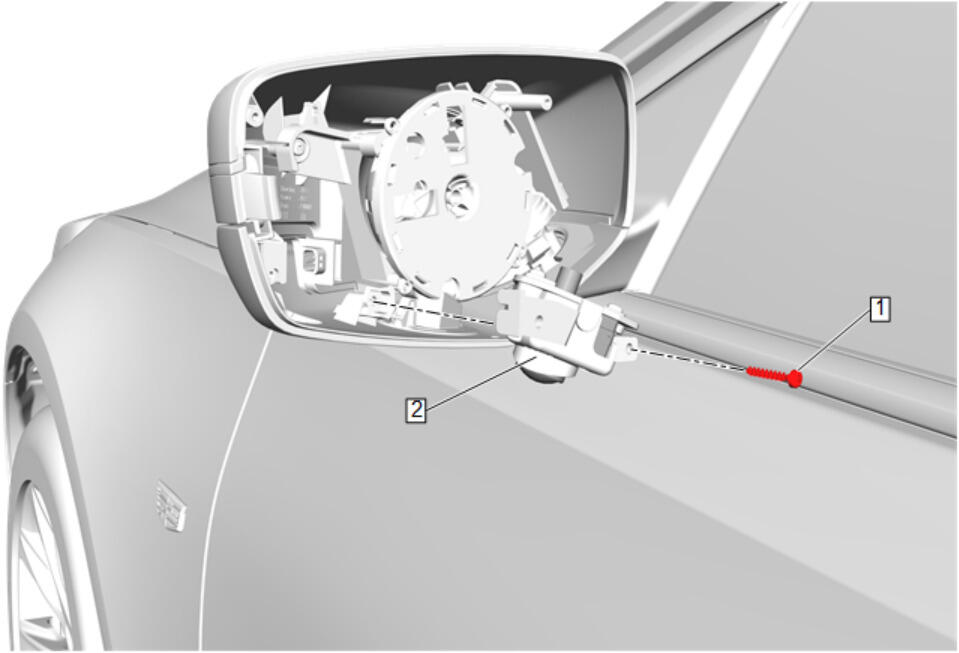

Install the side view driver information camera (2) with bracket.
- Outside Rearview Mirror Bolt (1) - Install and tighten 0.9 N.m (8 lb in)
- Connect the electrical connector.

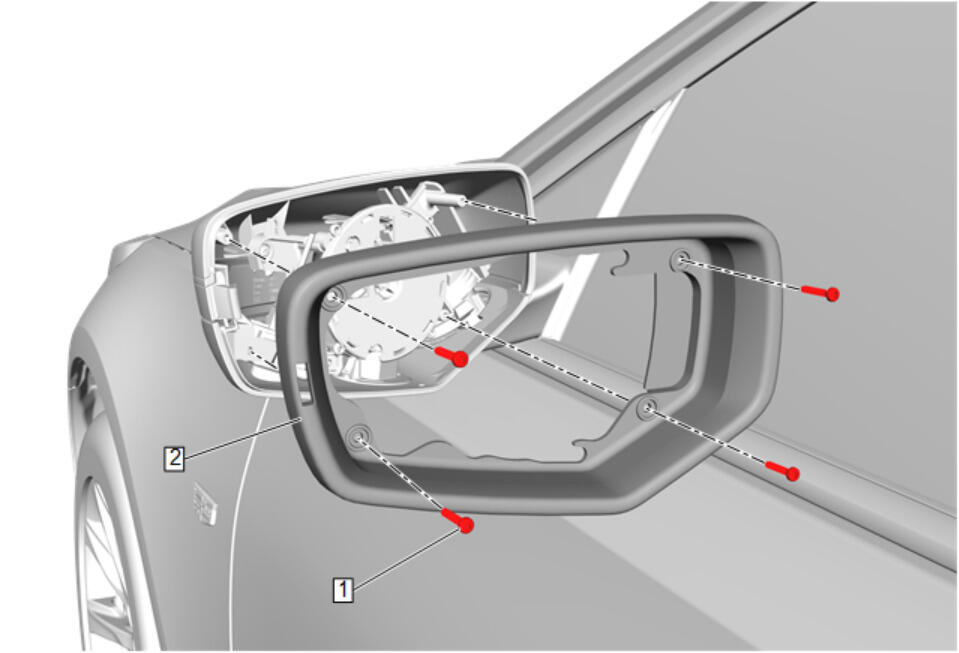

Outside Rearview Mirror Housing Bezel (2) - Install - Outside Rearview Mirror Housing Bezel Replacement (DWK, DMB, DXR) , or Outside Rearview Mirror Housing Bezel Replacement (DWW, DWR)
- Perform the camera calibration procedure. Video Processing Control Module Calibration
CAUTION:
Refer to Fastener Caution .
