Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed.

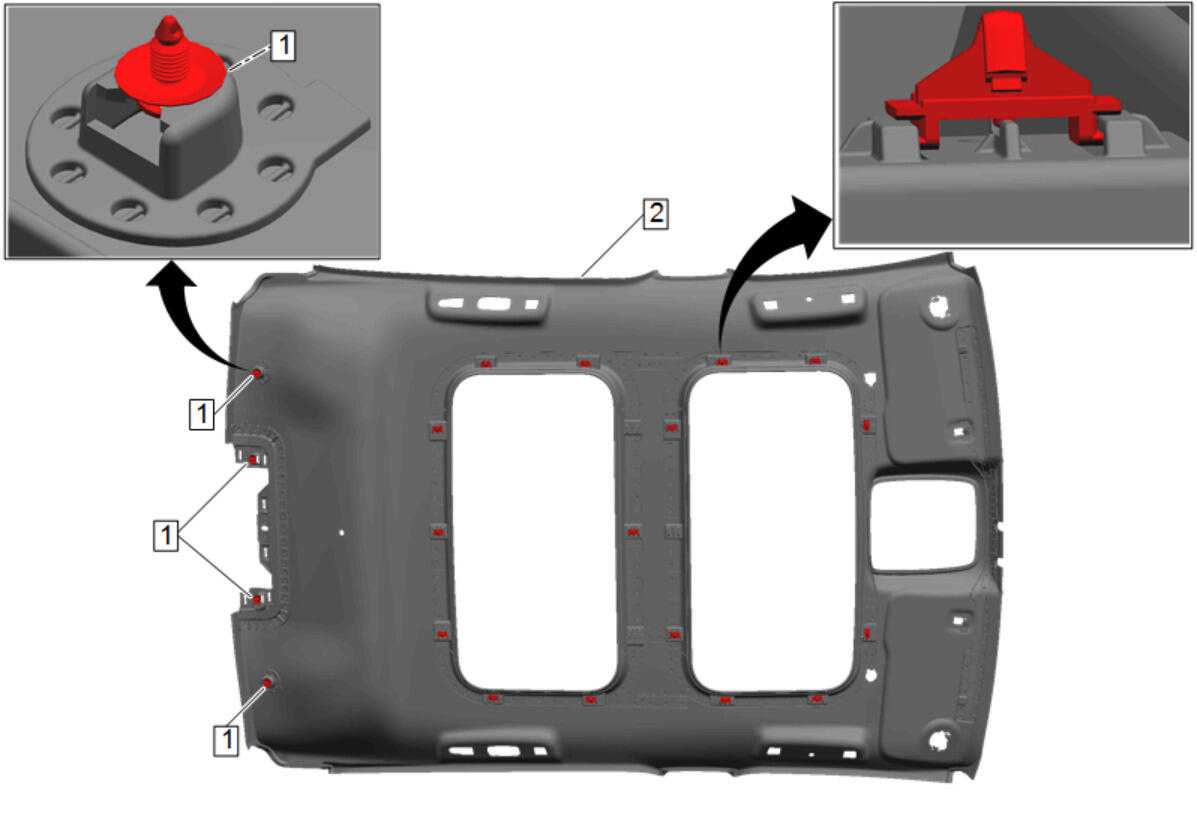

Headlining Trim Panel (2) - Remove - Headlining Trim Panel Replacement (With C3U)

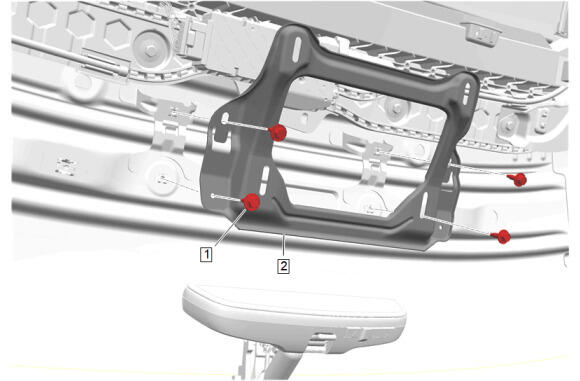

Roof Console Bracket Bolt (1) - Remove [4x]
- Roof Console Bracket (2) - Remove
Disconnect the electrical connector.

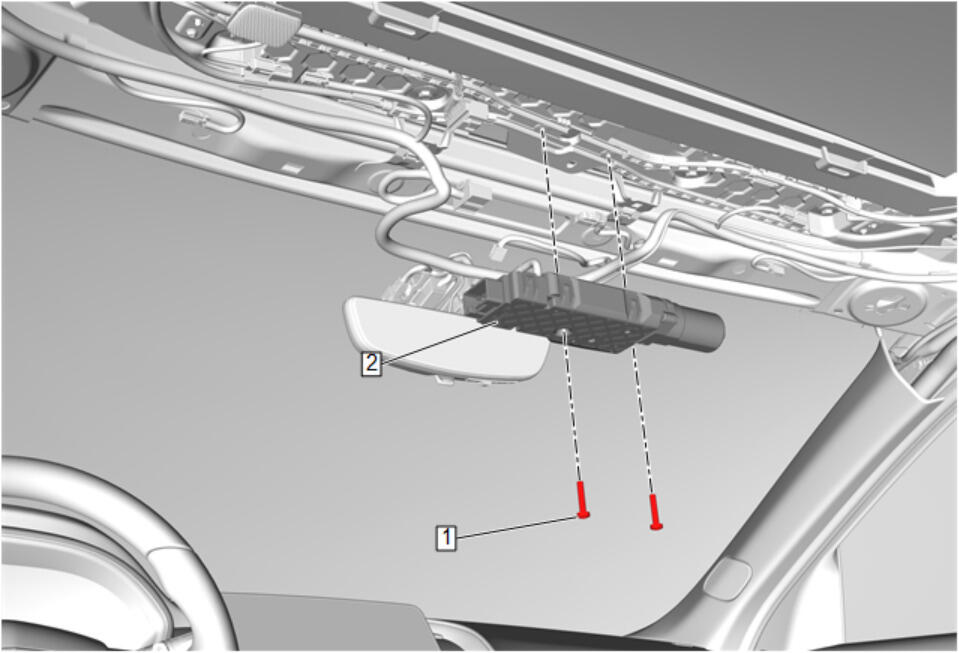

- Sunroof Control Module Bolt (1) - Remove [2x]
- Sunroof Control Module (2) - Remove
