Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

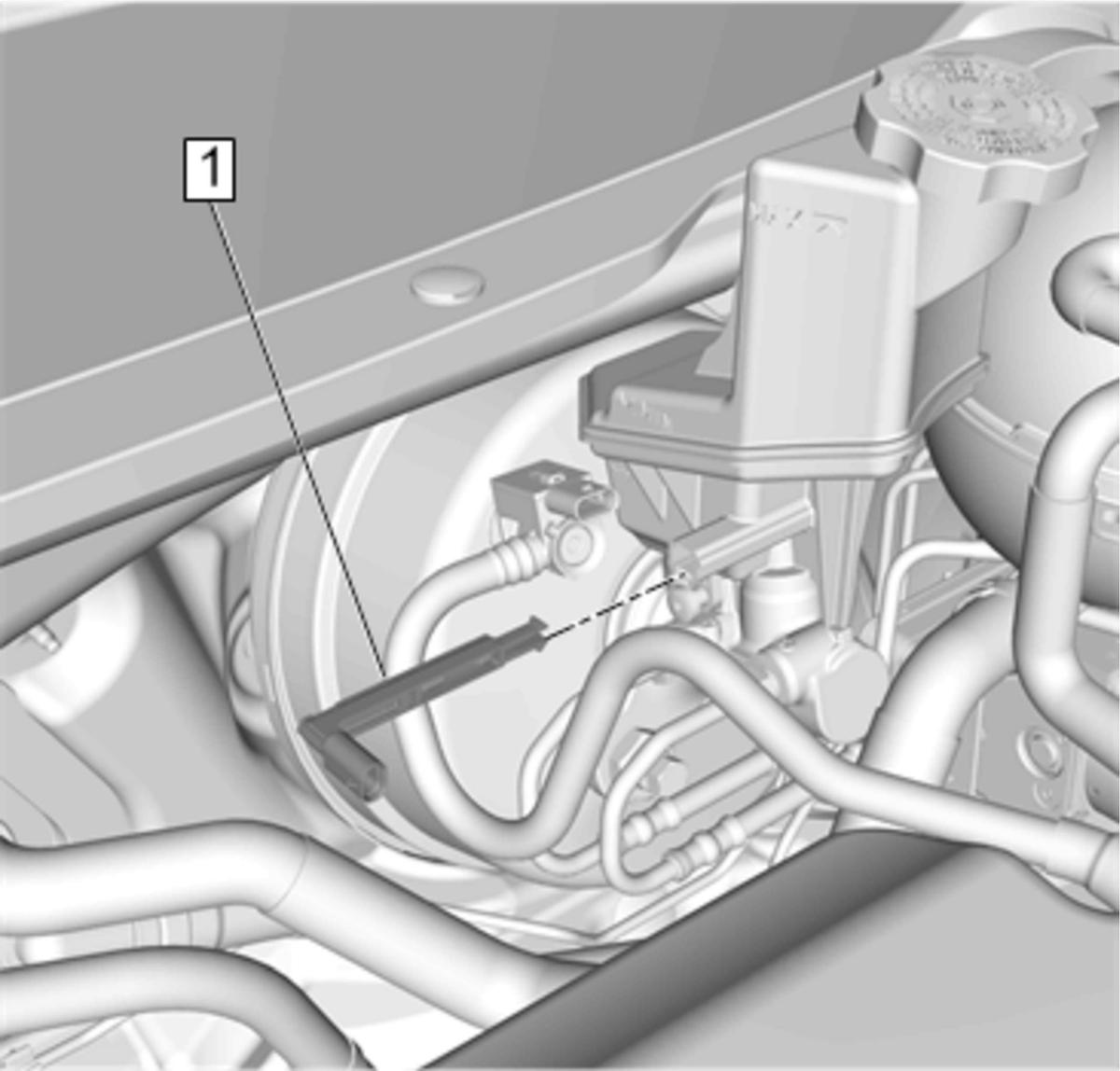

Fig 1: Brake Fluid Level Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Install Brake Fluid Level Indicator Switch.

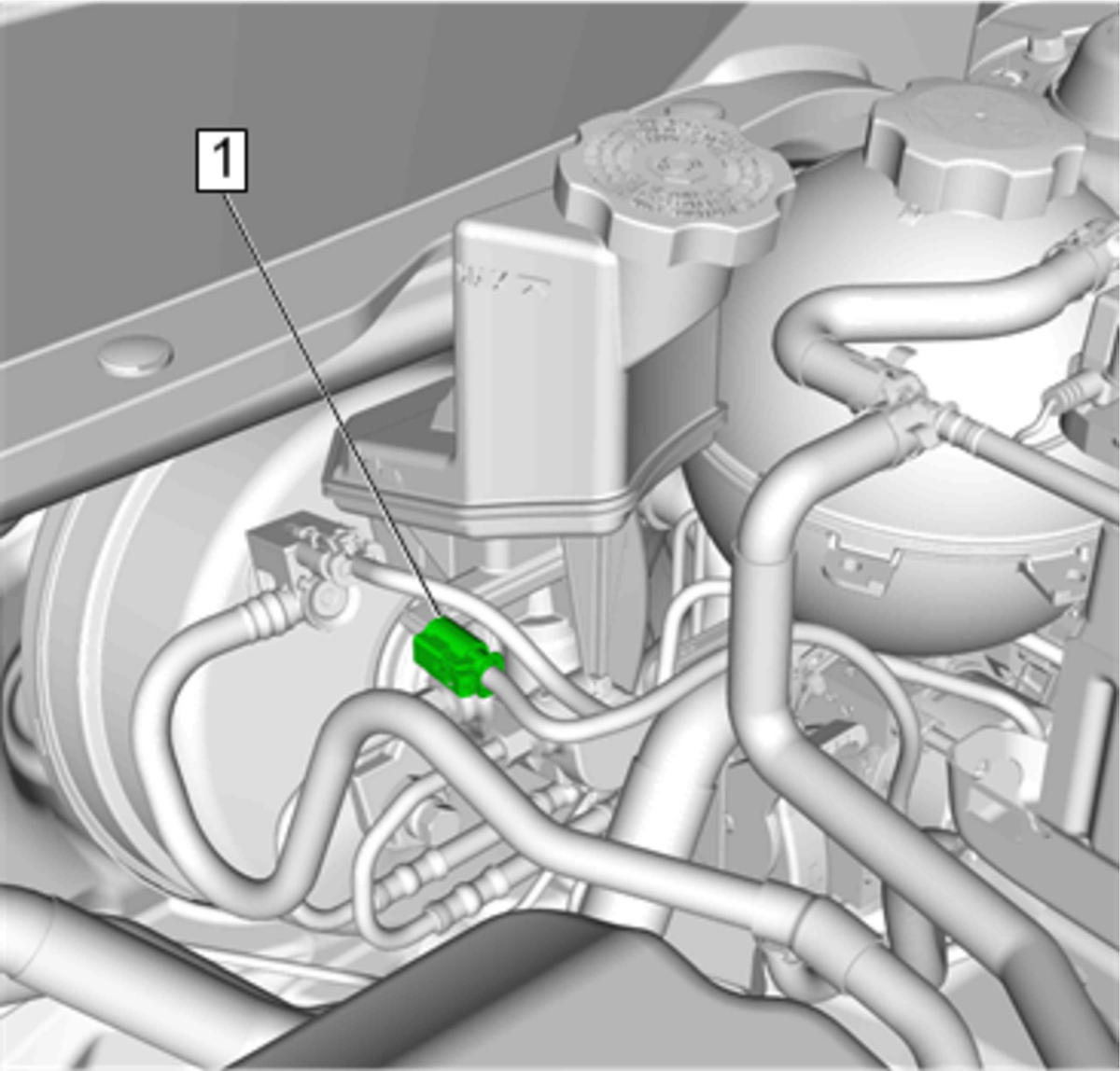

Fig 2: Brake Fluid Level Indicator Switch Electrical Connector

Courtesy of GENERAL MOTORS COMPANY

Connect Brake Fluid Level Indicator Switch Electrical Connector.
