Communication Interface Module Microphone Replacement

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

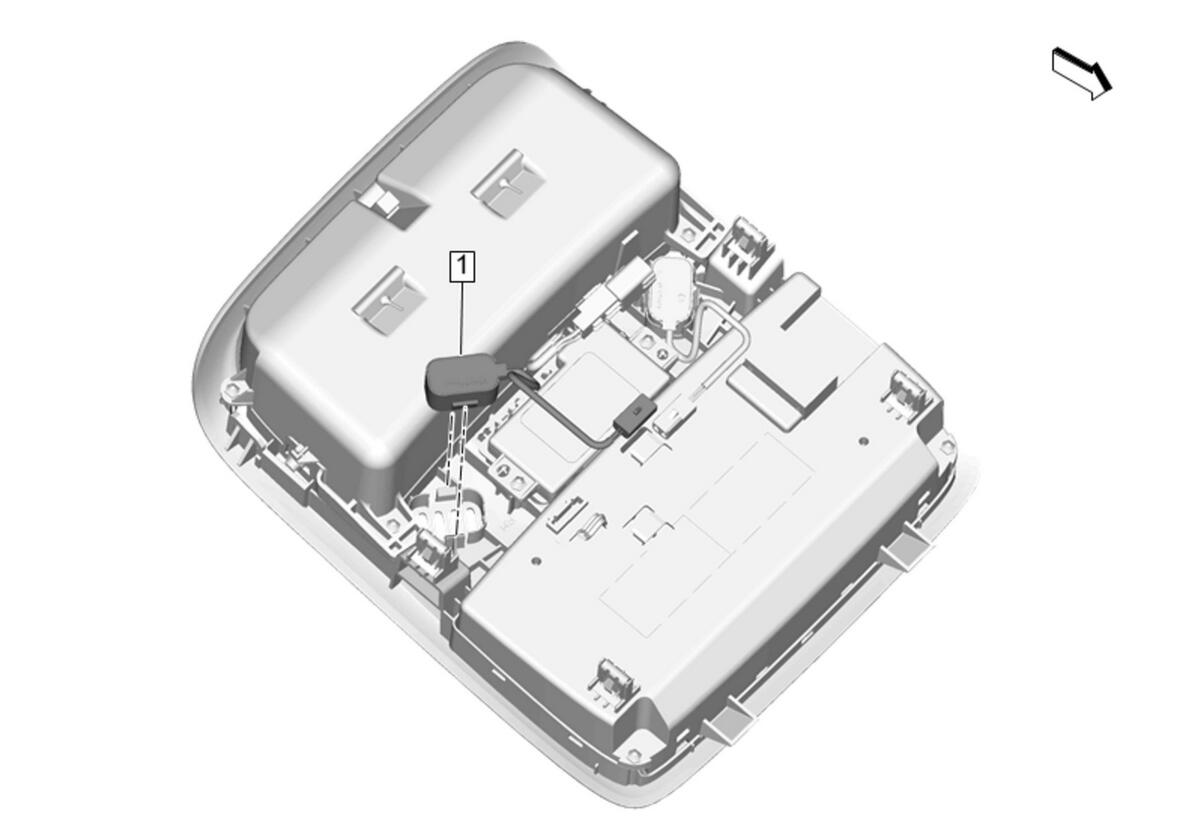

Fig 1: Communication Interface Module Microphone

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Roof Console Replacement
1	Communication Interface Module Microphone Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Roof Console Replacement

Communication Interface Module Microphone

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
