USB Receptacle Replacement

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

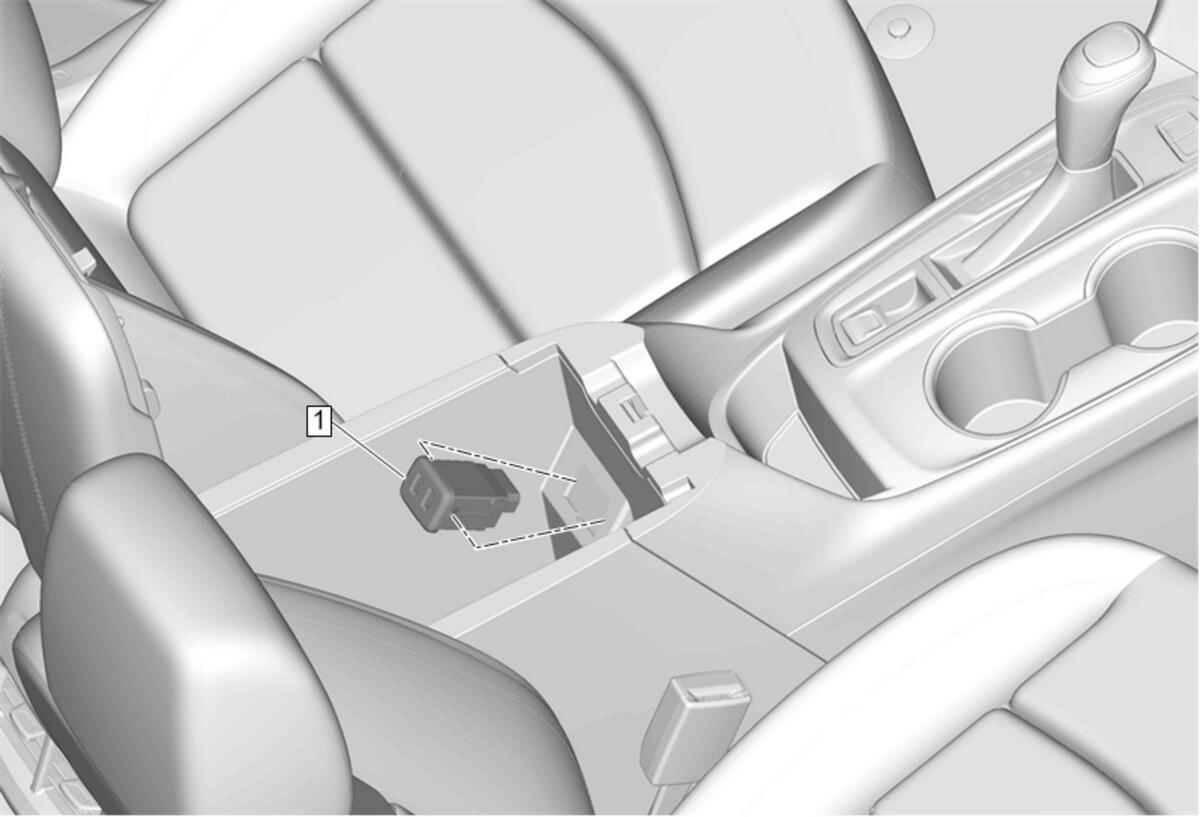

Fig 1: USB Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	USB Receptacle Procedure Depress the tabs on the receptacle to remove. Use a suitable tool. Disconnect the electrical connectors.
