Driver Seat Back Components

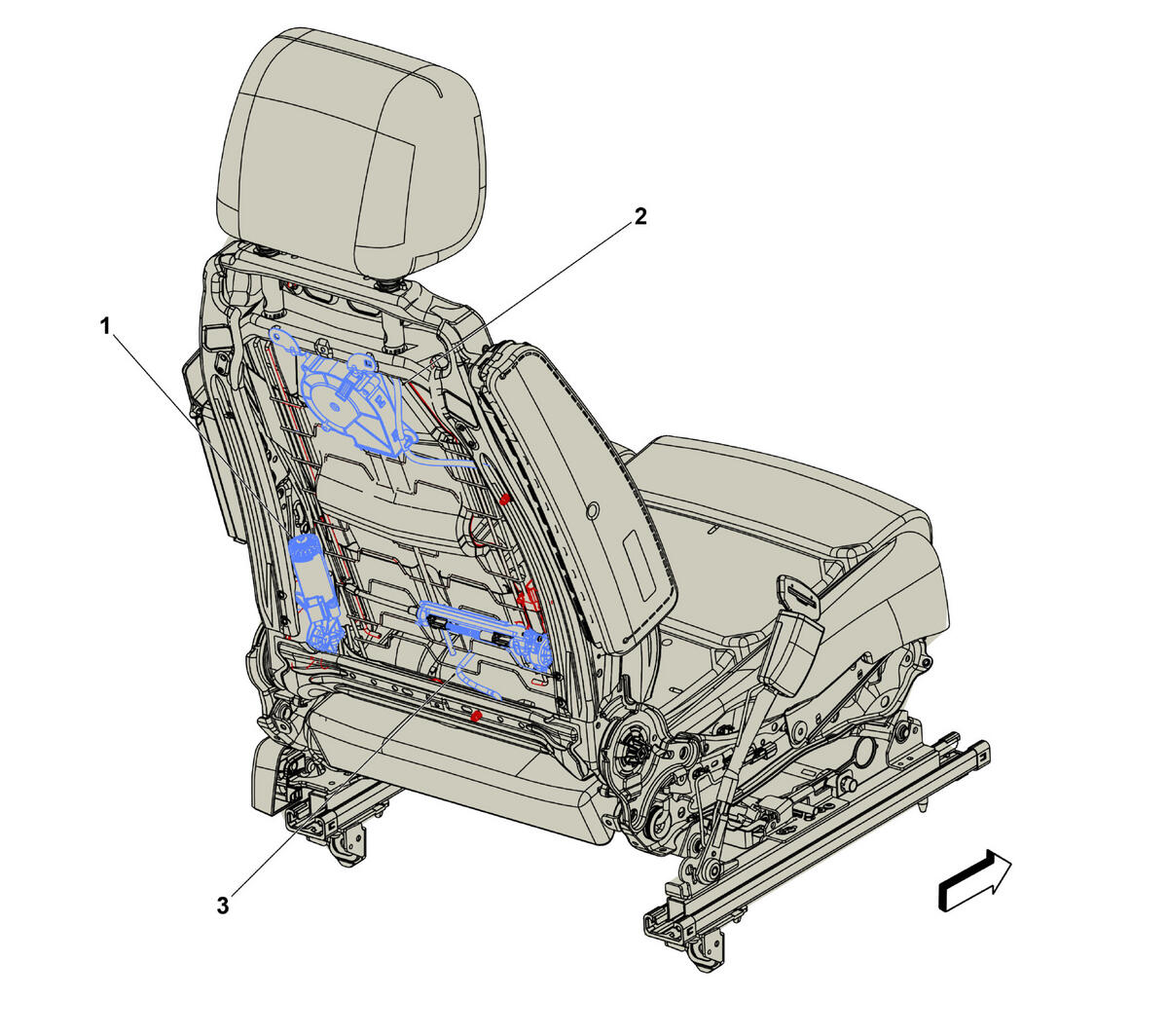

GM4341340Courtesy of GENERAL MOTORS COMPANY
Items
1. M56D Seat Recline Motor - Driver (AHT) M56D Seat Recline Motor - Driver (AHT)
2. M73A Seat Blower Motor - Driver Back (KU9) M73A Seat Blower Motor - Driver Back (KU9)
3. M53D Seat Lumbar Support Motor - Driver (AL9) M53D Seat Lumbar Support Motor - Driver (AL9)
