Installation Procedure

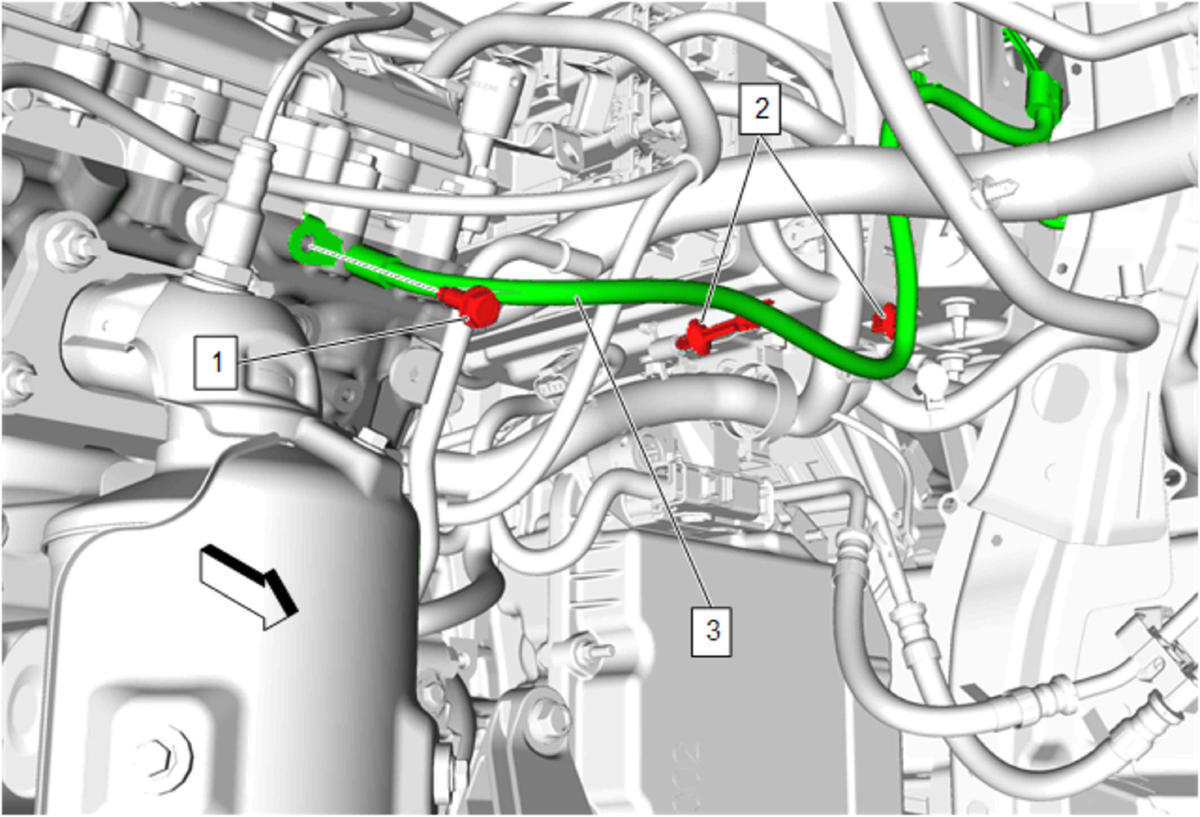

  1. GM5336944Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Cable Ground Bolt (1) @Transmission - Install and tighten 22 N.m (16 lb ft)
  3. Retainer (2) - Engage [2x]
  4. GM5336473Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (1) - Install

  5. Battery Negative Cable Ground Nut (2) @Front End Upper Tie Bar Support - Install and tighten 22 N.m (16 lb ft)
  6. GM5159158Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (2) - Install

  7. Battery Negative Cable Nut (1) @Battery Monitor Module - Install - Battery Monitor Module Replacement (KL9)
  8. Retainer (3) - Engage
  9. Perform the battery sensor module learn procedure. Battery Sensor Module Learn
