Door Lock Switch Replacement - Passenger Front

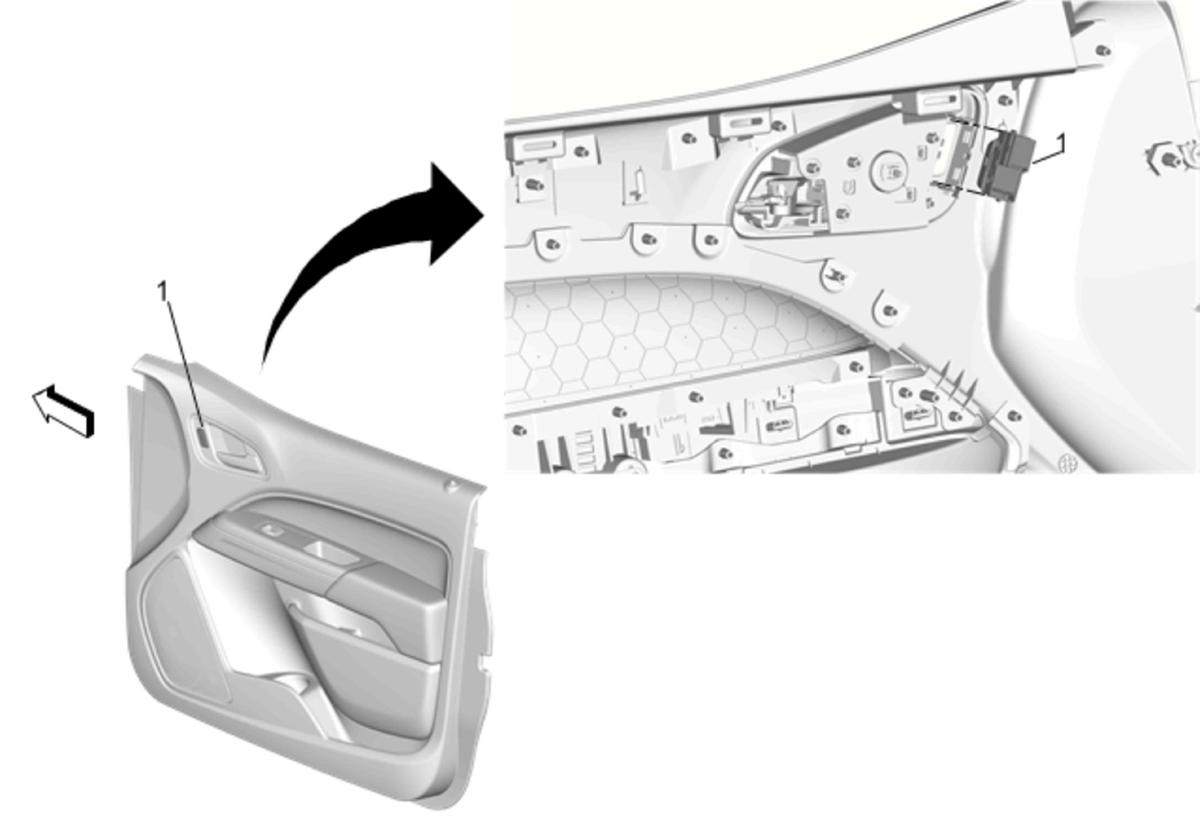

GM3797742

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement .

1

Door Lock Switch Passenger Front Assembly

Procedure

From the backside of the door trim panel, use a plastic pry tool to gently pry on the side tabs to release the switch from the door trim panel.
Disconnect the electrical connector.
Refer to Control Module References for programming and set up procedures, if required.
