Rear Side Door Outside Handle Bracket Replacement: Notes
- Remove the rear side door outside handle. Refer to Rear Side Door Outside Handle Replacement .

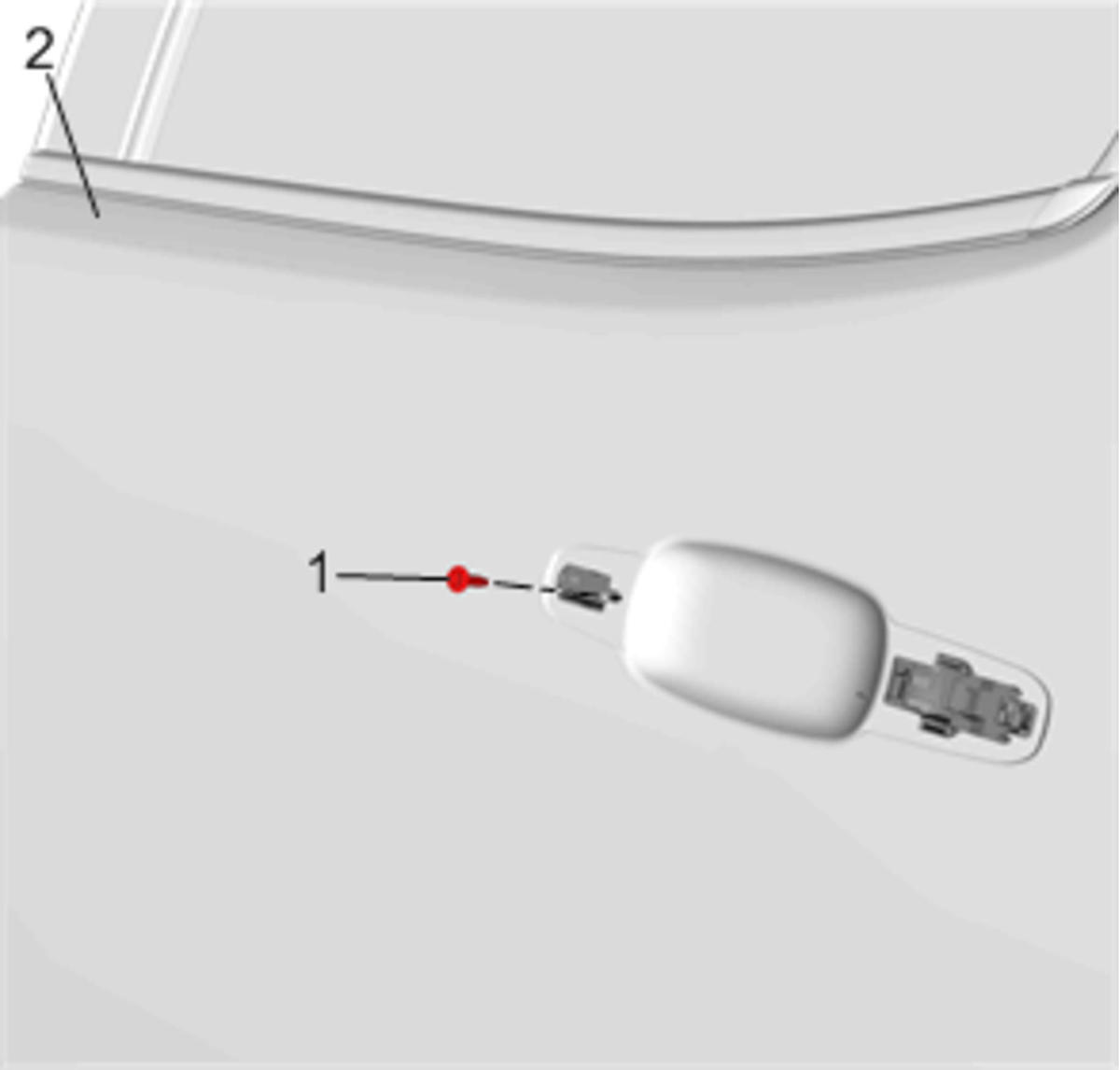

Remove the fastener (1) that retains the rear side door outside bracket to the door (2).

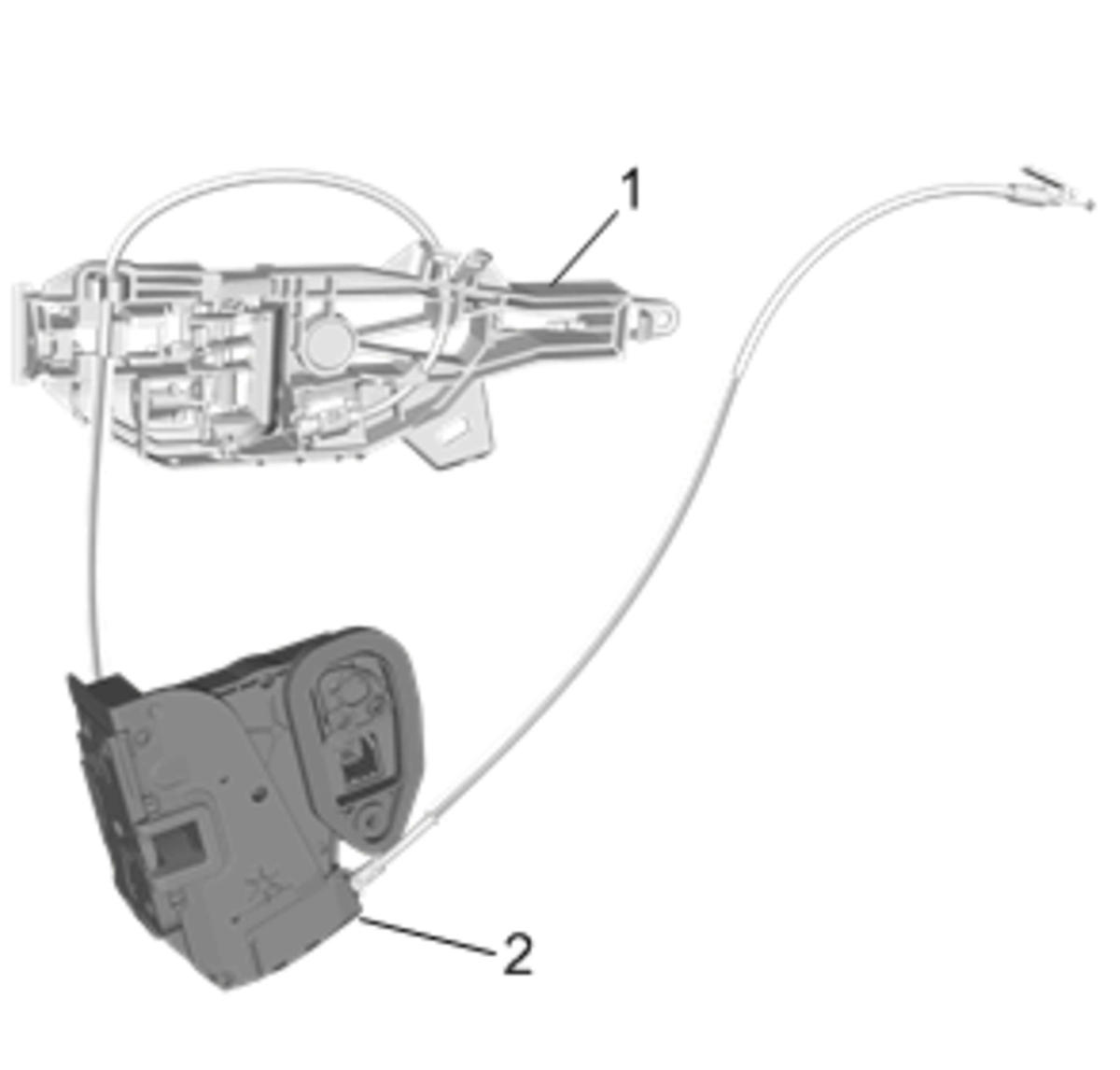

Remove the outside handle bracket (1) and the rear side door latch (2) assembly from the vehicle as one. Refer to Rear Side Door Latch Replacement .

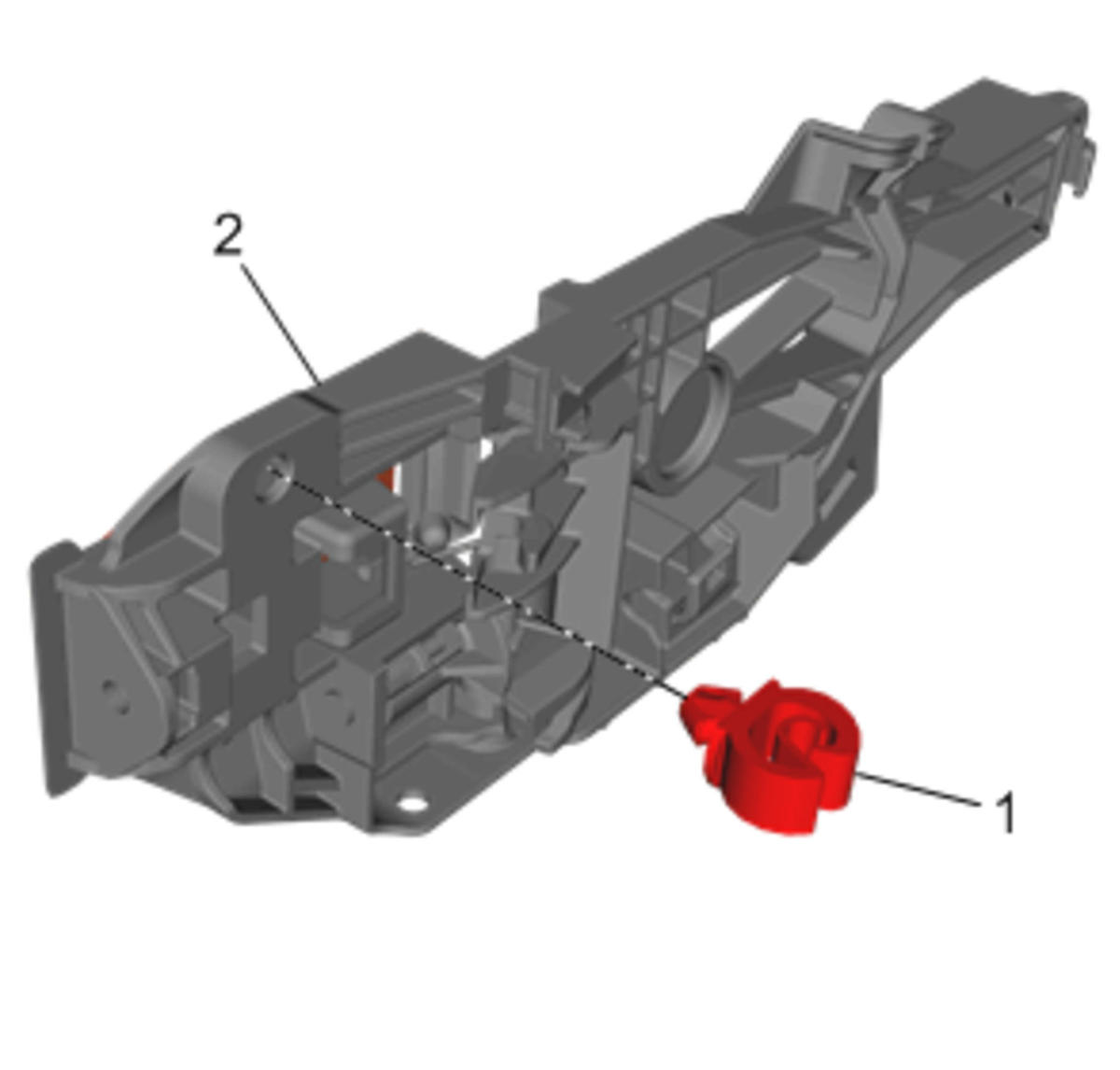

Remove the rear side door outside handle cable retainer (1) from the bracket (2).
- Remove the rear side door outside handle cable. Refer to Rear Side Door Outside Handle Cable Replacement .
