Left Front of Engine Compartment Components

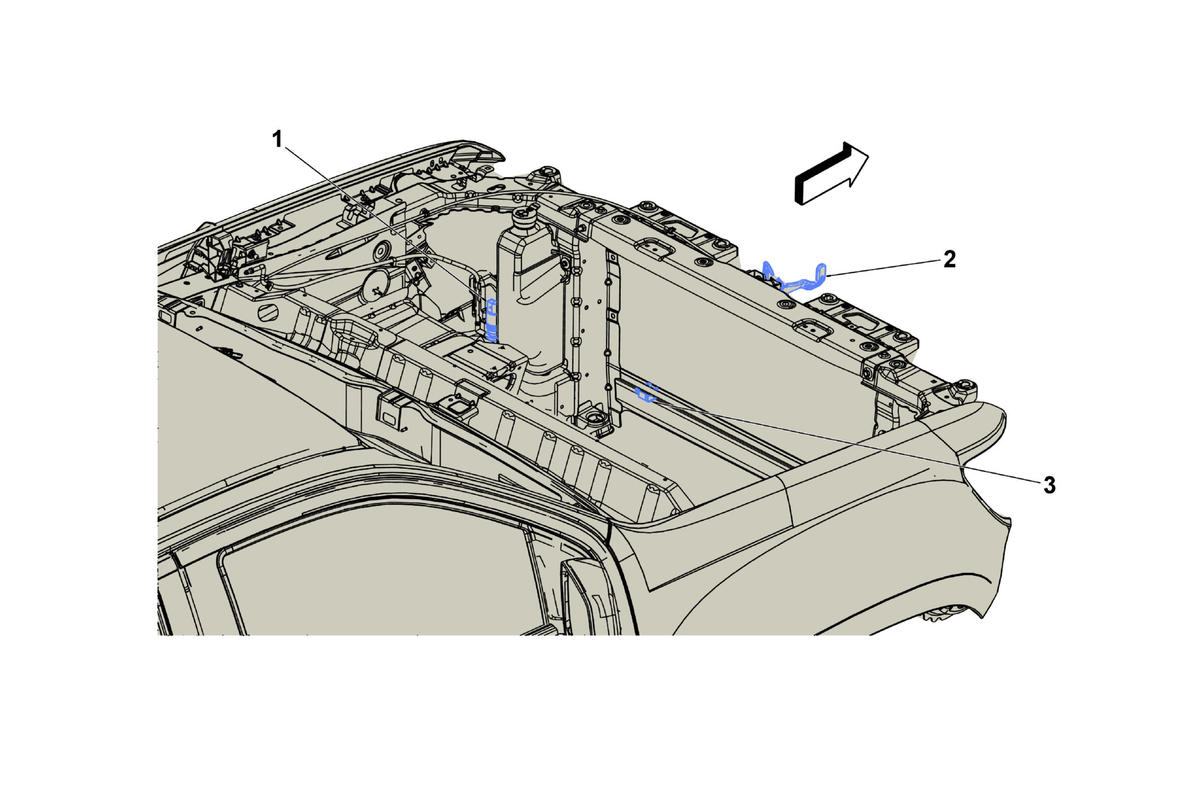

GM3924236Courtesy of GENERAL MOTORS COMPANY
Left Front of Engine Compartment Components

Component Name Callout
G24 Windshield Washer Pump G24 Windshield Washer Pump 1
B55 Engine Hood Switch (UTJ) B55 Engine Hood Switch 2
B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left 3
