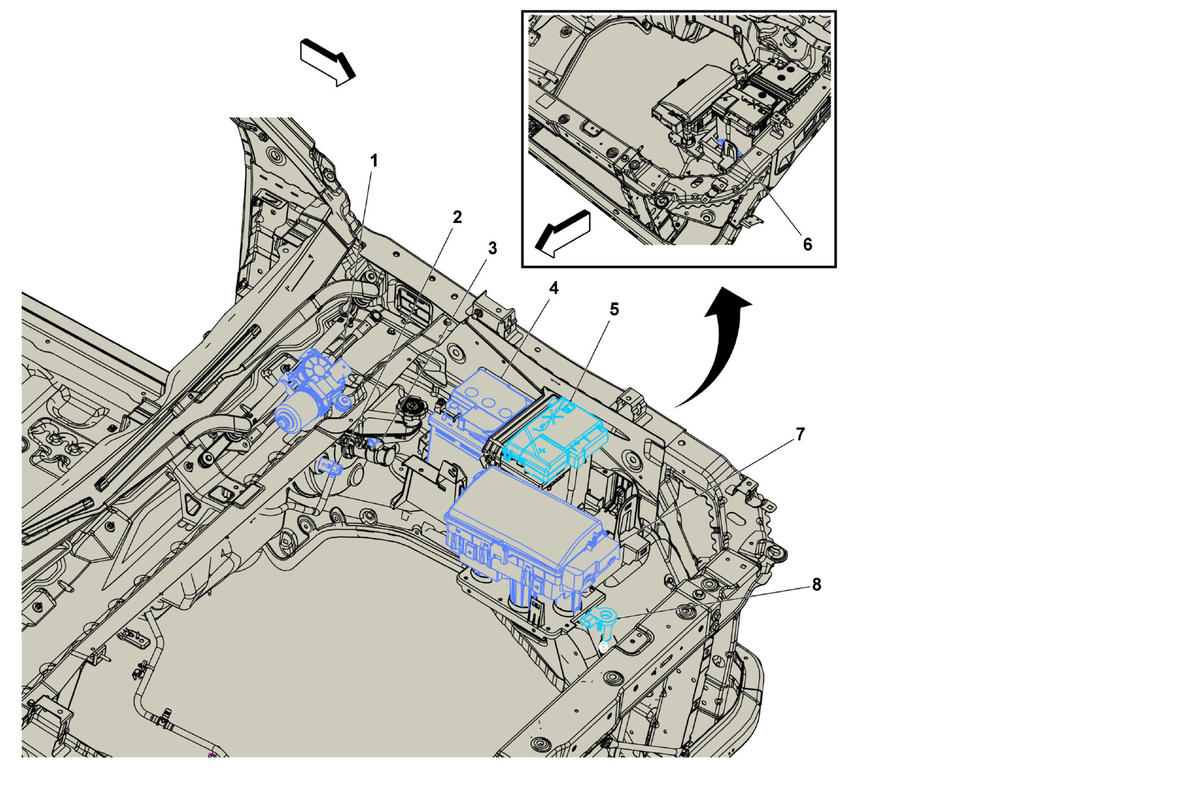

Left Side of Engine Compartment Components

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
M75 Windshield Wiper Motor M75 Windshield Wiper Motor	1
B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor	2
B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch	3
C1 Battery C1 Battery X2 , or C1 Battery X3	4
X50D Fuse Block - Battery X50D Fuse Block - Battery X1 , or X50D Fuse Block - Battery X2 , or X50D Fuse Block - Battery X3 , or X50D Fuse Block - Battery X4 (LGZ) , or X50D Fuse Block - Battery X4 (LWN) , or X50D Fuse Block - Battery X5 , or X50D Fuse Block - Battery X6 (LGZ) , or X50D Fuse Block - Battery X6 (LWN) , or X50D Fuse Block - Battery X6A , or X50D Fuse Block - Battery X7	5
R10 Cooling Fan Resistor (LWN) R10 Cooling Fan Resistor	6
X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X4 , or X50A Fuse Block - Underhood X5 (LCV) , or X50A Fuse Block - Underhood X5 (LGZ/LWN)	7
B18 Battery Current Sensor B18 Battery Current Sensor	8
