Shift Lock Control Wiring Schematics
›
MYB

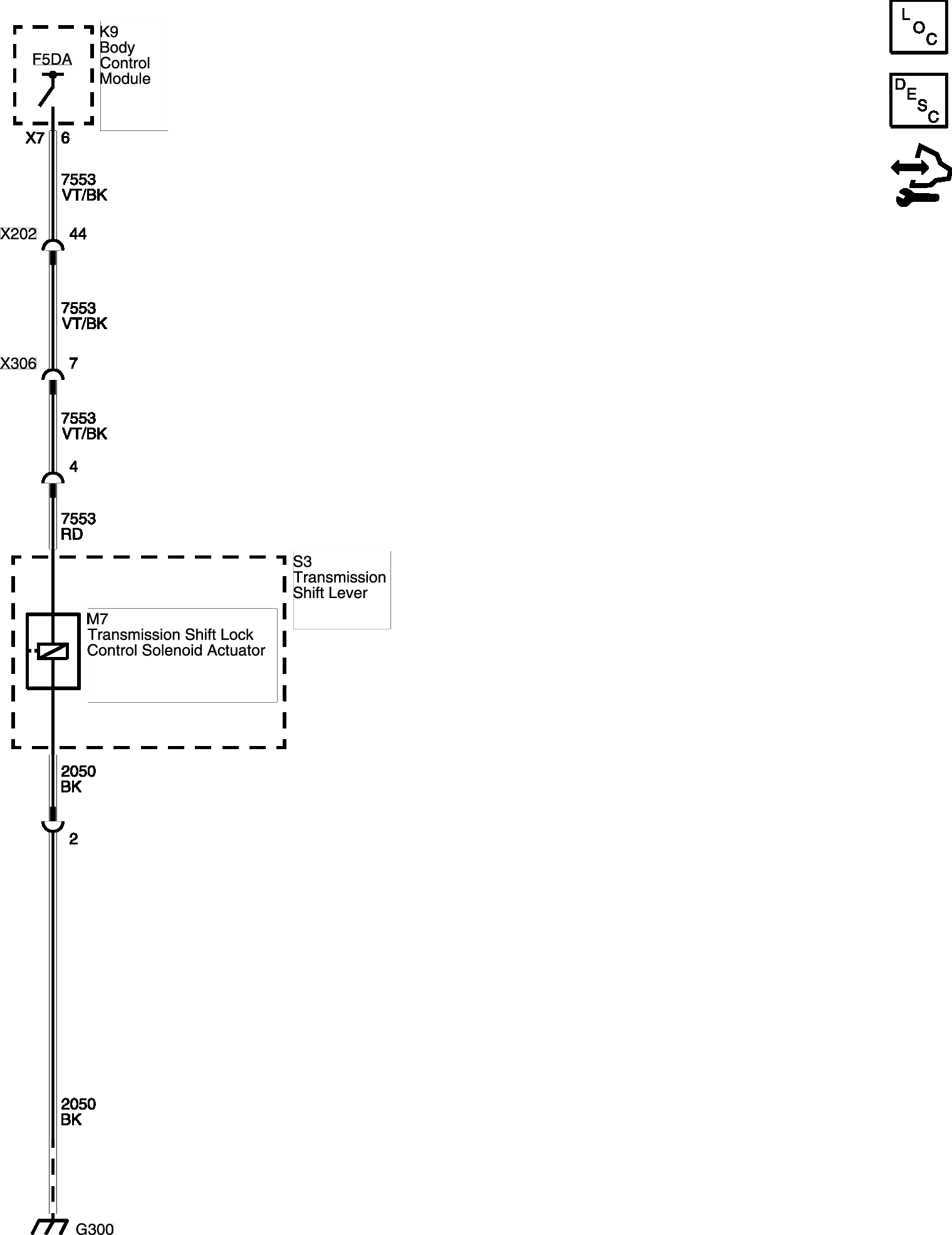

Shift Lock Control Wiring Schematics: MYB
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
