Electrical Center Identification Views
›
Visual Identification
›
Electrical Center Identification Views
›

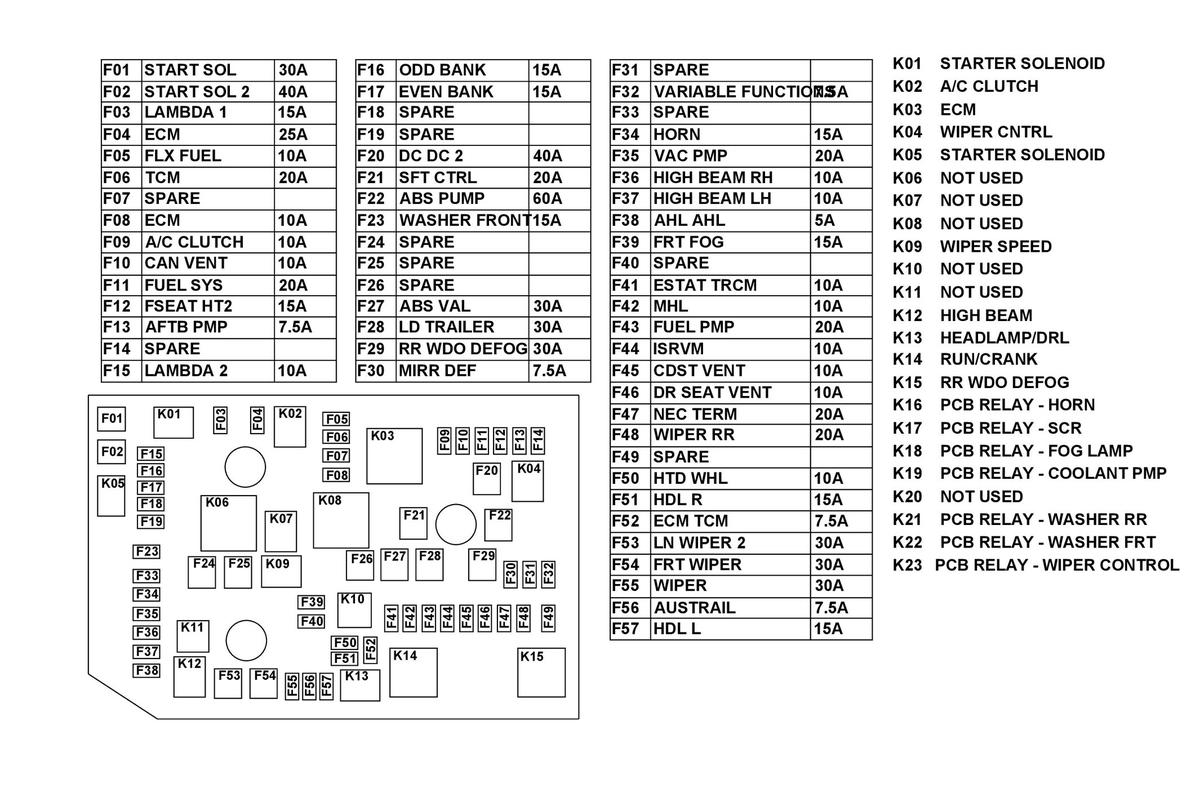

X50A Fuse Block - Underhood Label
X50A Fuse Block - Underhood Label
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
