Installation Procedure

WARNING:

Refer to Window Retention Warning .

  1. Rear Window (1) - Install - Adhesive Installation of Rear Windows
    GM4399825Courtesy of GENERAL MOTORS COMPANY
  2. Connect the electrical connectors.
  3. Liftgate Lower Trim Finish Panel (1) - Install - Liftgate Lower Trim Finish Panel Replacement
    GM4375596Courtesy of GENERAL MOTORS COMPANY

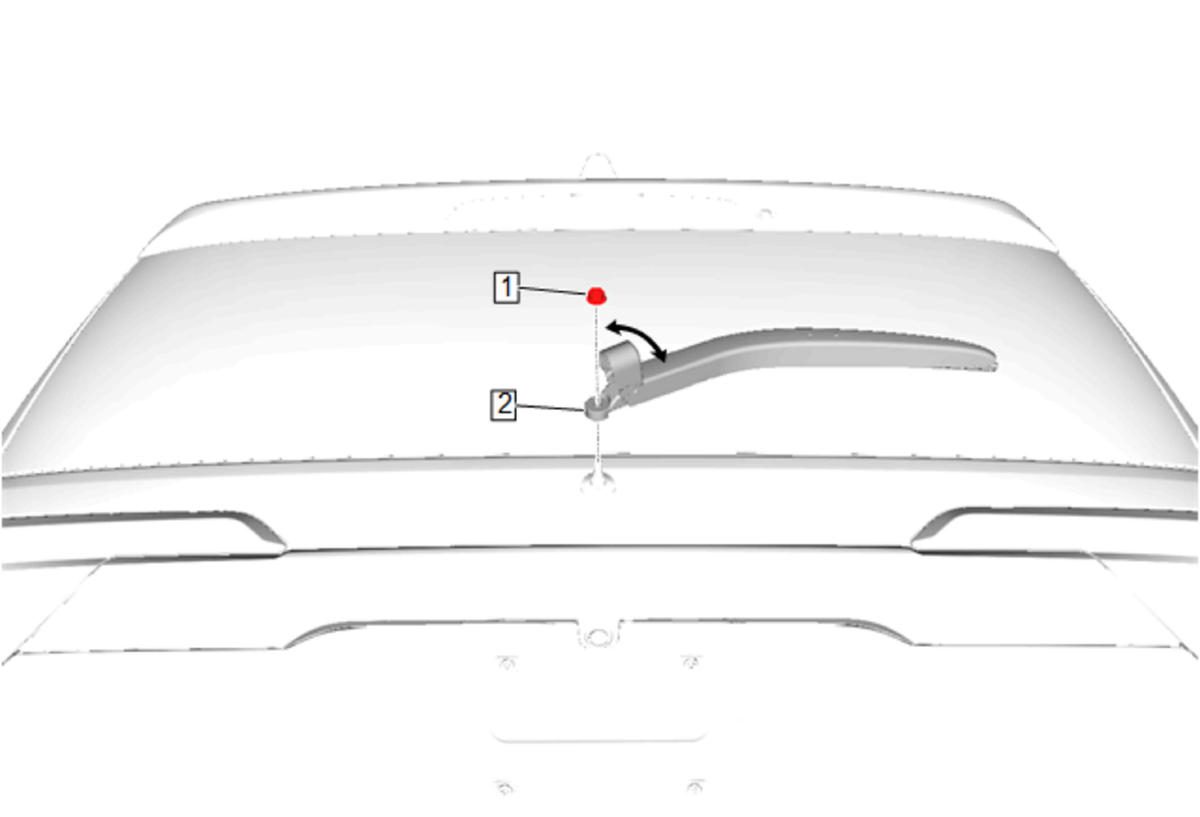

  4. Rear Window Wiper Arm (2) - Install - Rear Window Wiper Arm Replacement
    GM5354860Courtesy of GENERAL MOTORS COMPANY
  5. Remove the tape.
