Home › GMC › 2021 › Acadia AT4 › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

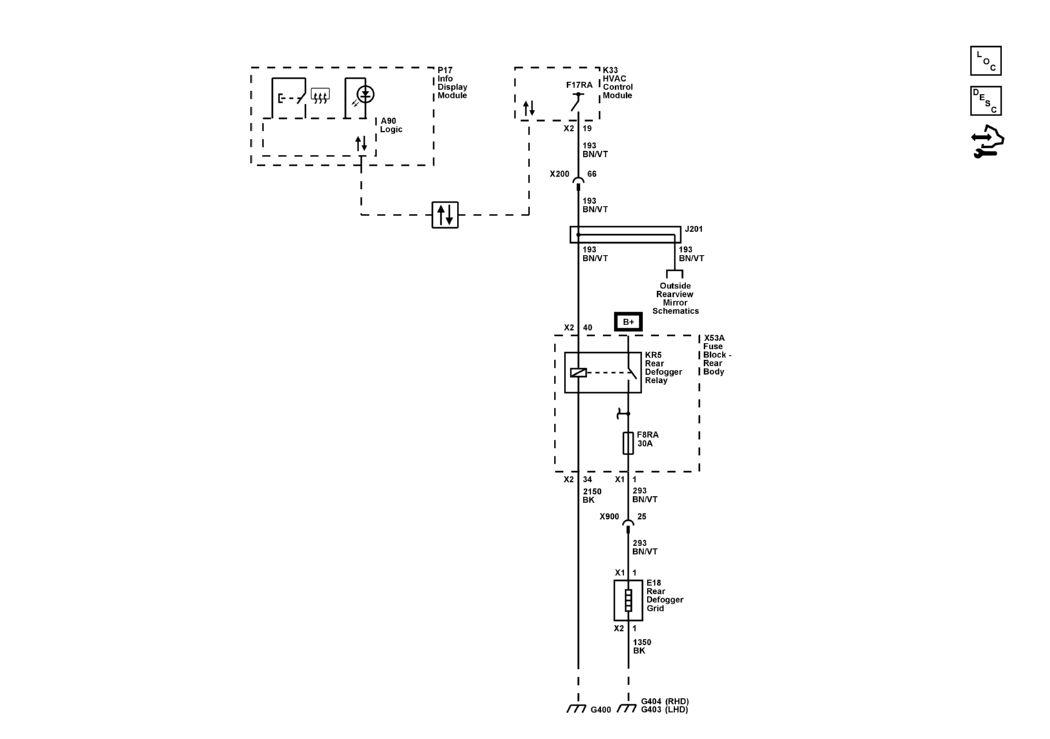

Defogger Wiring Schematics: Defogger

GM5481393Courtesy of GENERAL MOTORS COMPANY
